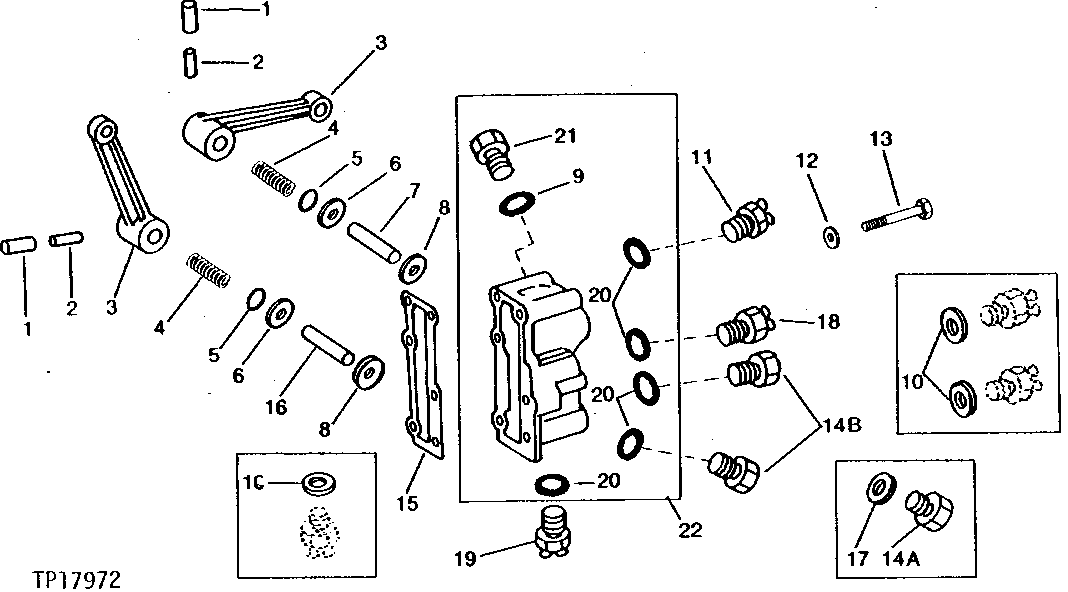

TRANSMISSION CONTROL VALVE COVER (772A) [01E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H252	2	SPRING PIN	1/8" X 1-1/4", (SUB FOR R56505)
2	R56506	2	SPRING PIN	7/32" X 1-1/4"
3	R57362	2	LEVER	-
4	F3221R	2	SPRING	-
5	24H1359	2	Washer	5/8" X 7/8" X 0.060"
6	R36364	2	WASHER	-
7	R49821	1	PIN FASTENER	REVERSE VALVE OPERATING ARM
8	AR103873	2	Seal	(SUB FOR R33587)
9	R26287	1	O-Ring	-
10	T16911	1	SHIM	-
11	AT72620	1	SWITCH	REVERSE WARNING ALARM (REVERSE CAM) (SUB FOR AT26795)
11	AT85152	1	Switch	REVERSE WARNING ALARM, (SUB FOR RE12411, THIS APPLICATION) (SUB AT86950)
11	AT86950	1	Switch	REVERSE WARNING ALARM
12	24M7096	6	Washer	0.413" X 0.709" X 0.063"
13	19H2855	5	Cap Screw	3/8" X 3-1/4"
13	19H3445	1	Cap Screw	3/8" X 3-3/4"
15	R33275	1	GASKET	-
16	R49819	1	PIN	CONTROL VALVE OPERATING ARM
17	R51494	1	WASHER	(SUB FOR R67899)
18	AT72620	1	SWITCH	HFWD (FORWARD CAM) (SUB FOR AT26795)
18	AT85152	1	Switch	HFWD, (SUB FOR RE12411, THIS APPLICATION) (SUB AT86950)
18	AT86950	1	Switch	HFWD
19	AT72620	1	SWITCH	HFWD (1 TO 4 CAM) (SUB FOR AT26795)
19	AT85152	1	Switch	HFWD, (SUB FOR RE12411, THIS APPLICATION) (SUB AT86950)
19	AT86950	1	Switch	HFWD
20	R26448	4	O-Ring	-
20	R26448	5	O-Ring	-
21	R27216	5	DRAIN PLUG	-
22	R82331	1	COVER	(DOES NOT INCLUDE PLUGS AND O-RINGS)
22	-	1	Part 34	(WHEN RE21305 IS NO LONGER AVAILABLE, SUB R82331, R26287, (5) R26448, R27216 AND R27218)
22	AR95904	1	COVER	(MARKED R72413) (SUB R82331, R26287, (5) R26448, R27216 AND R27218)
22	R42989	1	COVER	-
14A	R69532	1	FITTING PLUG	(SUB FOR R27218, THIS APPLICATION)
14B	R27218	2	Fitting Plug	-
14B	R27218	1	Fitting Plug	-

TRANSMISSION CONTROL VALVE COVER (772A) [01E06]
