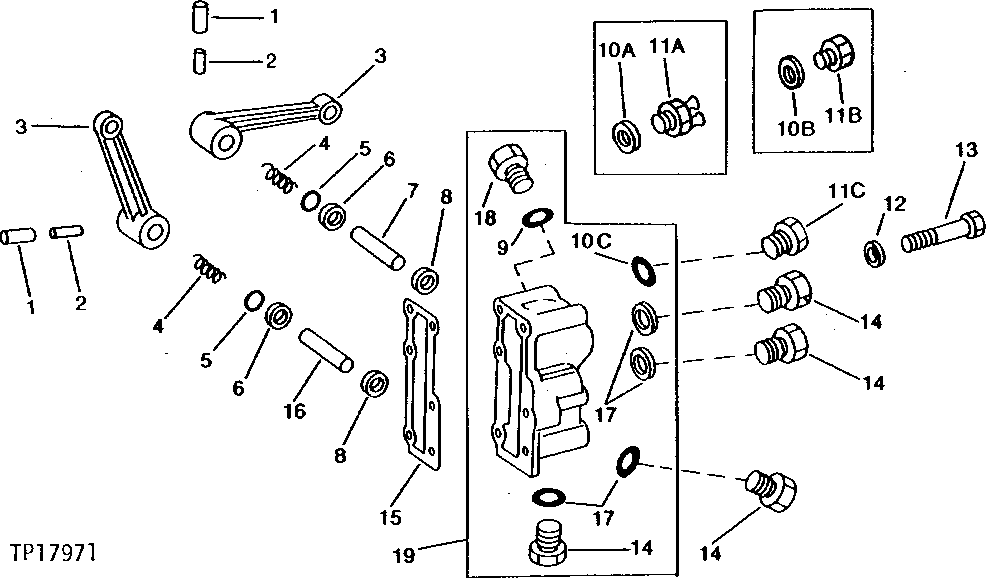

TRANSMISSION CONTROL VALVE COVER (770A) [01E05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H252	2	SPRING PIN	1/8" X 1-1/4", (SUB FOR R56505)
2	R56506	2	SPRING PIN	7/32" X 1-1/4"
3	R57362	2	LEVER	-
4	F3221R	2	SPRING	-
5	24H1359	2	Washer	5/8" X 7/8" X 0.060"
6	R36364	2	WASHER	-
7	R49821	1	PIN FASTENER	REVERSE VALVE OPERATING ARM
8	AR103873	2	Seal	(SUB FOR R33587)
9	R26287	1	O-Ring	-
12	24M7096	6	Washer	0.413" X 0.709" X 0.063"
13	19H3445	1	Cap Screw	3/8" X 3-3/4"
13	19H2855	5	Cap Screw	3/8" X 3-1/4"
14	R69532	3	FITTING PLUG	(SUB R27218, THIS APPLICATION)
14	R27218	3	Fitting Plug	-
14	R27218	4	Fitting Plug	-
15	R33275	1	GASKET	-
16	R49819	1	PIN	CONTROL VALVE OPERATING ARM
17	R26448	4	O-Ring	-
17	R51494	3	WASHER	(SUB FOR R67899)
17	R26448	3	O-Ring	-
18	R27216	1	DRAIN PLUG	-
19	R82331	1	COVER	(DOES NOT INCLUDE PLUGS AND O-RINGS)
19	-	1	Part 30	(WHEN RE21305 IS NO LONGER AVAILABLE SUB R82331, R26287, (5) R26448, R27216 AND R27218)
19	AR95904	1	COVER	(MARKED R72413) (SUB R82331, R26287, (5) R26448, R27216 AND R27218)
19	R42989	1	COVER	-
10A	T16911	1	SHIM	-
10B	R51494	1	WASHER	-
10C	R26448	1	O-Ring	-
11A	AT85153	1	SWITCH	REVERSE WARNING, (SUB FOR AR89691) (SUB R69532 AND R51494)
11B	R69532	1	FITTING PLUG	-
11C	R27218	1	Fitting Plug	-

TRANSMISSION CONTROL VALVE COVER (770A) [01E05]
