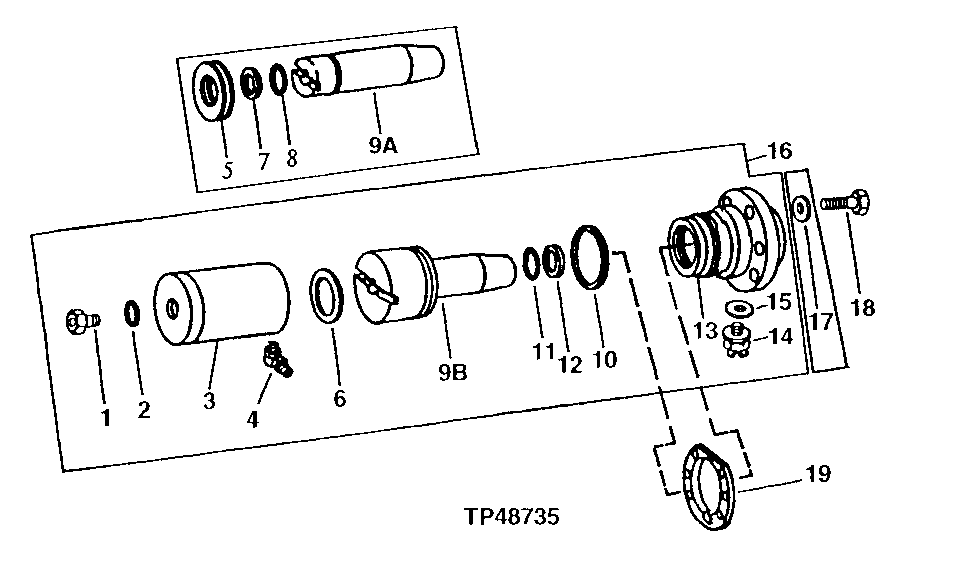

TILT ARM LOCKING PIN (SERIAL NO. 402689- ) [04G06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L32704	1	Threaded Nipple	(USE WITH AT84343 AND AT68773) (SUB FOR T52662, THIS APPLICATION) (USED WITH 1-1/16" BARREL PORT)
2	U12547	1	O-Ring	(USE WITH AT84343 AND AT68773) (SUB FOR F3171R)
3	-	1	Part 3	( T82810 NO LONGER AVAILABLE) (SUB AT166682)
4	JD7788	1	Lubrication Fitting	45°, 1/4"
5	T42600	1	PISTON	(USE WITH T82313)
6	T42599	1	RING	-
7	T82315	2	Back-Up Ring	(SUB FOR T42597, THIS APPLICATION) (USED WITH T82313)
8	T82314	2	O-Ring	(SUB FOR U42111, THIS APPLICATION) (USED WITH T82313)
10	T61027	1	Washer	-
11	T82314	1	O-Ring	(SUB FOR T201077) ( T201077 NO LONGER USED IN THIS APPLICATION)
12	T82315	1	Back-Up Ring	(SUB FOR T201077) ( T201077 NO LONGER USED IN THIS APPLICATION)
13	T82809	1	Housing	(SUB FOR T60258)
14	AT303600	1	Switch	(SUB FOR AH64759, THIS APPLICATION)
15	T42598	1	Shim	0.50 MM (.020")
15	T70438	1	Shim	0.18 MM (.007")
16	AT166682	1	Hydraulic Cylinder	(SUB FOR AT85161) (ALSO ORDER 38H1009, 38H1309 AND 38H1169, 38H1094, 38H1435, AT35601, R26287, R28782, R26448, (3) T77613, AT159109)
17	T24510	6	Washer	-
18	R82175	6	Cap Screw	(SUB FOR R81161)
19	T60260	1	Shim	(SUB FOR AH64759, THIS APPLICATION) 0.76 MM (.030")
9A	-	1	Part 9	( T82313 NO LONGER AVAILABLE) (SUB T150621)
9B	T150621	1	Pin Fastener	-

TILT ARM LOCKING PIN (SERIAL NO. 402689- ) [04G06]

Нет текстового описания
