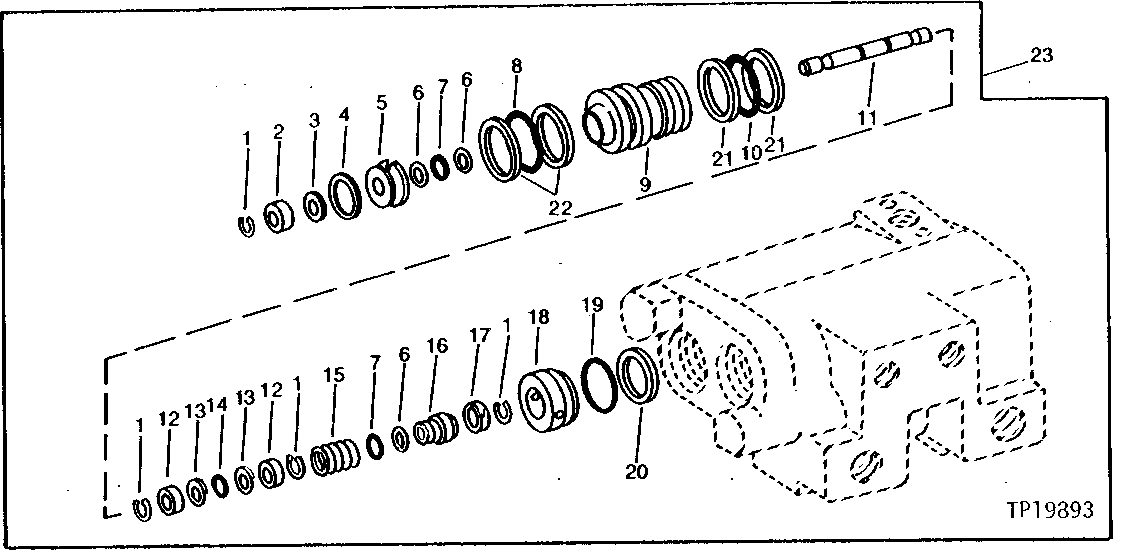

STANDARD POPPET ASSEMBLY (FRONT-MOUNTED EQUIPMENT, RIPPER AND FLOAT VALVE) [04J23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T56343	4	SNAP RING	(K)
2	T42411	1	RETAINER	-
3	T42422	1	SHIM	(K) 0.51 MM (.020")
4	T42420	1	RING	-
5	T42409	1	POPPET	PRESSURE
6	R26551	3	BACK-UP RING	(K)
7	R394R	2	O-Ring	(K)
8	R61015	1	O-Ring	(K) (SUB FOR T59952 AND R31378, THIS APPLICATION) (ALSO ORDER (2) R78392)
9	T42419	1	SLEEVE	-
10	R81906	1	O-Ring	(K) (SUB FOR T42416 AND T11220, THIS APPLICATION) (ALSO ORDER (2) R81189)
11	T42408	1	SHAFT	-
12	T42417	2	RETAINER	-
13	-	2	Part 13	(K) ( T42406 NO LONGER AVAILABLE) (SUB RE30357)
14	-	1	Part 14	(K) ( T42407 NO LONGER AVAILABLE) (SUB RE30357)
15	T48598	1	SPRING	-
16	T48597	1	POPPET	RETURN
17	T59720	1	RING	METERING
18	R73261	1	SEAT	(SUB FOR T56309)
19	R30319	1	O-Ring	(K) (SUB FOR T42414) (ALSO ORDER R81188)
20	R81188	1	BACK-UP RING	(K) (SUB FOR T60654, THIS APPLICATION) (USE WITH R30319)
21	R81189	2	BACK-UP RING	(K) (SUB FOR U41971, THIS APPLICATION) (USE WITH R81906 AND R61015)
22	R78392	2	BACK-UP RING	(K)
23	AT41437	1	VALVE	STANDARD WITH ANTI-CAVITATION

STANDARD POPPET ASSEMBLY (FRONT-MOUNTED EQUIPMENT, RIPPER AND FLOAT VALVE) [04J23]
