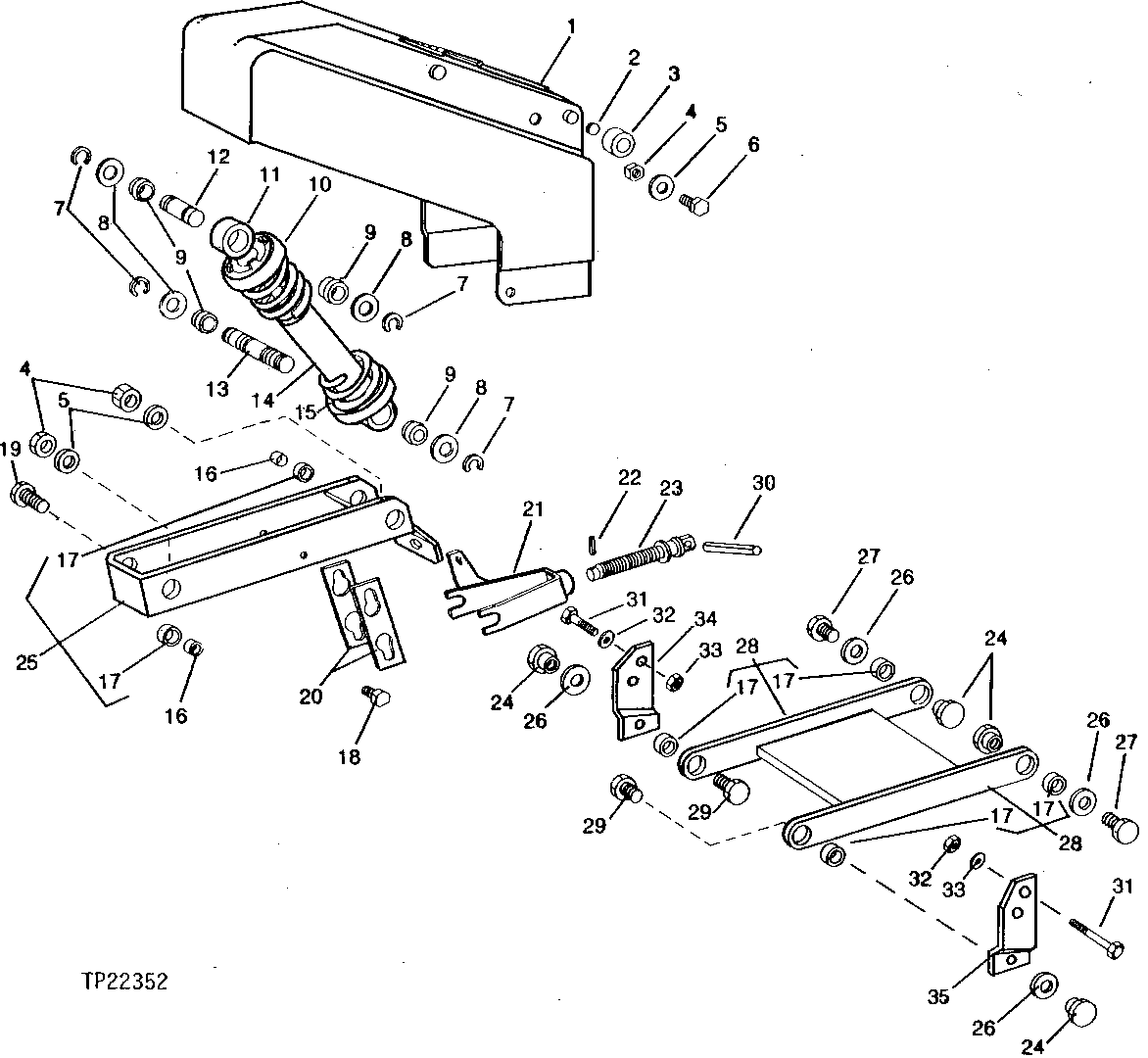

SEAT SUPPORT (STANDARD SEAT) [03I04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR26632	1	FRAME	DELUXE SEAT
2	-	4	Part 2	(A) 0.25 MM (.010") ( R26872 NO LONGER AVAILABLE)
2	-	4	Part 3	(A) 0.51 MM (.020") ( R26873 NO LONGER AVAILABLE)
3	R26436	4	ROLLER	-
4	E50102	4	Lock Nut	(SUB FOR C744DN OR (4) M63440)
5	R27441	4	Washer	-
6	19H3239	2	Cap Screw	3/8" X 1-1/4"
7	F2863R	4	Snap Ring	-
8	R1836R	4	Washer	-
9	R26832	4	BUSHING	RUBBER
10	R26877	1	SPRING	-
11	R27442	1	CAP	UPPER
12	R26875	1	PIN FASTENER	UPPER
13	R26876	1	SHAFT	LOWER
14	AR71976	1	SHOCK ABSORBER	SHOCK, (SUB FOR AR69854)
15	R26879	1	CAP	LOWER
16	R27440	4	BUSHING	-
17	R51648	8	WASHER	(SUB FOR R36704)
18	19H3483	2	Cap Screw	3/8" X 1-1/8"
19	19H2676	1	Cap Screw	3/8" X 1", (SUB AR60029)
20	R26878	2	LINK	SHOCK ABSORBER, LOWER SHAFT
21	AR69271	1	YOKE	SEAT SUSPENSION ADJUSTING, WITH PAD
22	34H247	1	Spring Pin	1/8" X 3/4"
23	R57623	1	SCREW	SEAT SUSPENSION ADJUSTING
24	R26880	4	NUT	-
25	AR60029	1	ARM	WITH BUSHING AND SCREW, (SUB FOR AR36048)
26	R27441	4	Washer	-
27	19H2284	2	Cap Screw	3/8" X 7/8"
28	AR35858	1	LINK	SEAT SUSPENSION, WITH BUSHINGS
29	19H1648	2	Cap Screw	3/8" X 3/4"
30	34H323	1	Spring Pin	1/4" X 3"
31	19H2472	4	Cap Screw	1/2" X 1"
32	24H1162	4	Washer	17/32" X 1-1/4" X 0.060"
33	14H1040	4	Nut	1/2"
34	T78789	1	SUPPORT	LEFT SEAT (SUB FOR T77457)
35	T78788	1	SUPPORT	RIGHT SEAT (SUB FOR T77456)

SEAT SUPPORT (STANDARD SEAT) [03I04]
