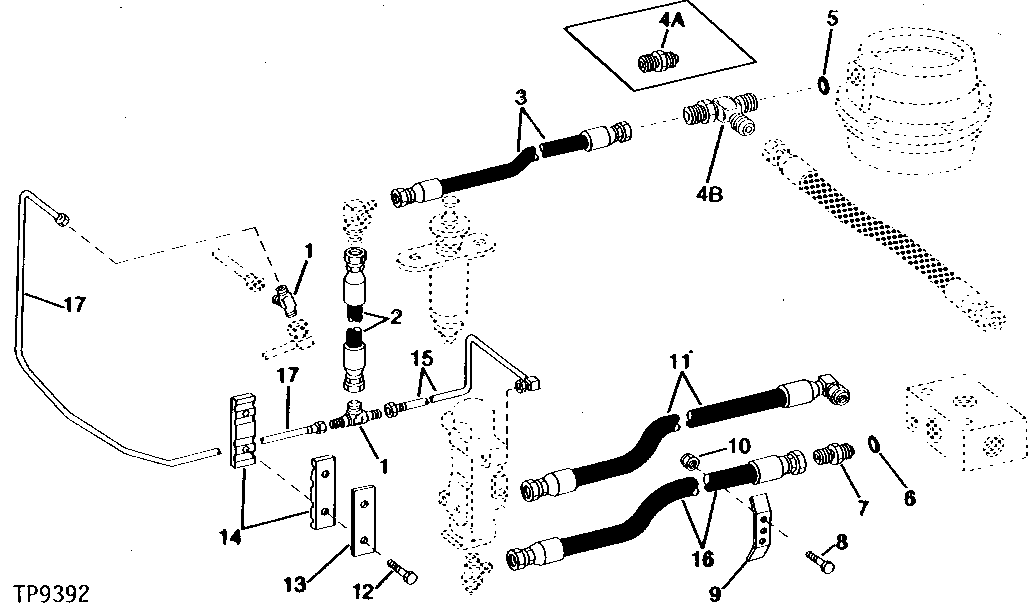

MAIN FRAME HYDRAULICS (LOCKING PIN VALVE AND PRESSURE CONTROL VALVE) (SERIAL NO. -507268) [04D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T27323	2	TEE FITTING	-
2	AT42246	1	HYDRAULIC HOSE - FABRICATE	1/2" X 146 MM (5-3/4") X 1/2"
3	AT42247	1	HYDRAULIC HOSE - FABRICATE	1/2" X 1 397 MM (55") X 1/2", PARKING BRAKE QUILL
5	R26286	1	O-Ring	-
6	U12547	1	O-Ring	(SUB FOR F3171R) (WITH 100 CM3 (6.00 CUBIC INCH) PUMP)
7	R27267	1	Fitting	(WITH 100 CM3 (6.00 CUBIC INCH) PUMP)
8	19H3520	1	Cap Screw	1/2" X 3-1/4"
9	T47053	1	CLAMP	-
10	K40014	1	Lock Nut	(SUB FOR BP12214)
11	AT42237	1	HYDRAULIC HOSE	7/8" X 648 MM (25-1/2") X 1-5/16", OIL LINE PRESSURE
12	19H1726	2	Cap Screw	3/8" X 2-1/4"
13	T43363	1	STRAP	-
14	T43362	2	CLAMP	-
15	AT42245	1	TUBE	PRESSURE CONTROL VALVE BLEED
16	AT42236	1	HYDRAULIC HOSE - FABRICATE	7/8" X 1 087 MM (42-3/4") X 1-1/16", PRESSURE (WITH 100 CM3 (6.00 CUBIC INCH) PUMP)
17	AT59478	1	TUBE	PARKING BRAKE LUBE
4A	R27272	1	Fitting	-
4B	AM31410	1	Tee Fitting	(SUB FOR AR41987)

MAIN FRAME HYDRAULICS (LOCKING PIN VALVE AND PRESSURE CONTROL VALVE) (SERIAL NO. -507268) [04D05]

Нет текстового описания
