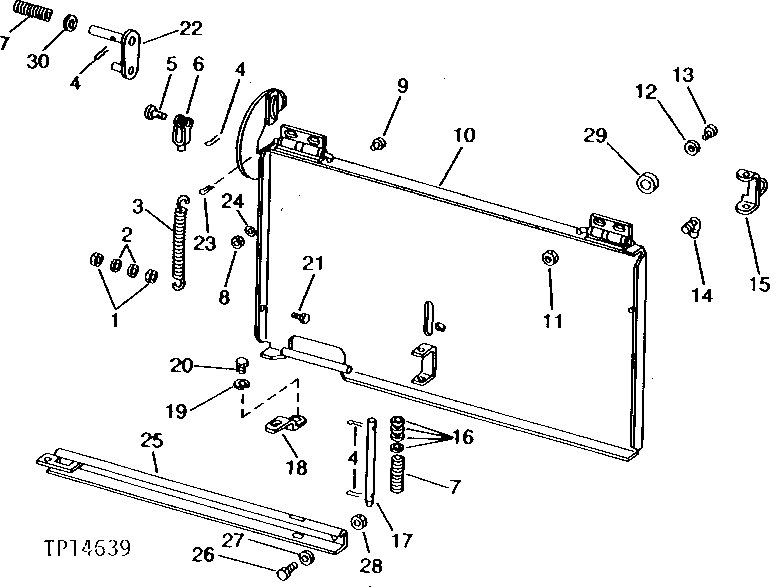

ENGINE SIDE SHIELDS (SERIAL NO. -007570) [03J20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H129201	4	Lock Nut	(SUB FOR T32552)
2	24H1307	1	Washer	13/32" X 1" X 1/16"
3	T71298	2	TORSION SPRING	(SUB FOR H77002) (SUB FOR H77002, THIS APPLICATION)
4	11M7059	6	Cotter Pin	3.200 X 20 MM
5	U11004	2	Pin Fastener	-
6	L299T	2	Yoke	-
7	T20303	4	SPRING	-
8	14H631	4	Nut	0.190"
9	T39474	1	Bumper	-
10	AT42058	1	SHIELD	RIGHT (ILLUSTRATED)
10	AT42060	1	SHIELD	LEFT
11	14H812	8	NUT	3/8"
12	24M7096	8	Washer	0.413" X 0.709" X 0.063"
13	19H1648	8	Cap Screw	3/8" X 3/4"
14	AT42056	2	Lock	-
15	AT42055	2	HANDLE	-
16	24H1320	4	Washer	29/64" X 3/4" X 0.035"
17	T43130	2	PIN FASTENER	-
18	T43129	2	STRAP	-
19	24H1362	2	Washer	41/64" X 1" X 0.075"
20	19H2367	2	Cap Screw	5/8" X 3/4"
21	03H1658	2	Bolt	3/8" X 2-1/4"
22	AT43945	2	LATCH	-
23	11M7081	4	Cotter Pin	2.500 X 20 MM
24	12H295	4	Lock Washer	0.190"
25	AT57935	1	SUPPORT	RIGHT (ILLUSTRATED) (NOISE REDUCTION)
25	AT57936	1	SUPPORT	LEFT (NOISE REDUCTION)
26	19H1227	2	Cap Screw	1/4" X 1/2"
27	24H1287	2	Washer	9/32" X 5/8" X 0.065"
28	14H786	2	Nut	1/4"
29	24H1308	8	Washer	13/32" X 1" X 0.134"
30	24H1322	1	Washer	29/64" X 13/16" X 0.065"

ENGINE SIDE SHIELDS (SERIAL NO. -007570) [03J20]
