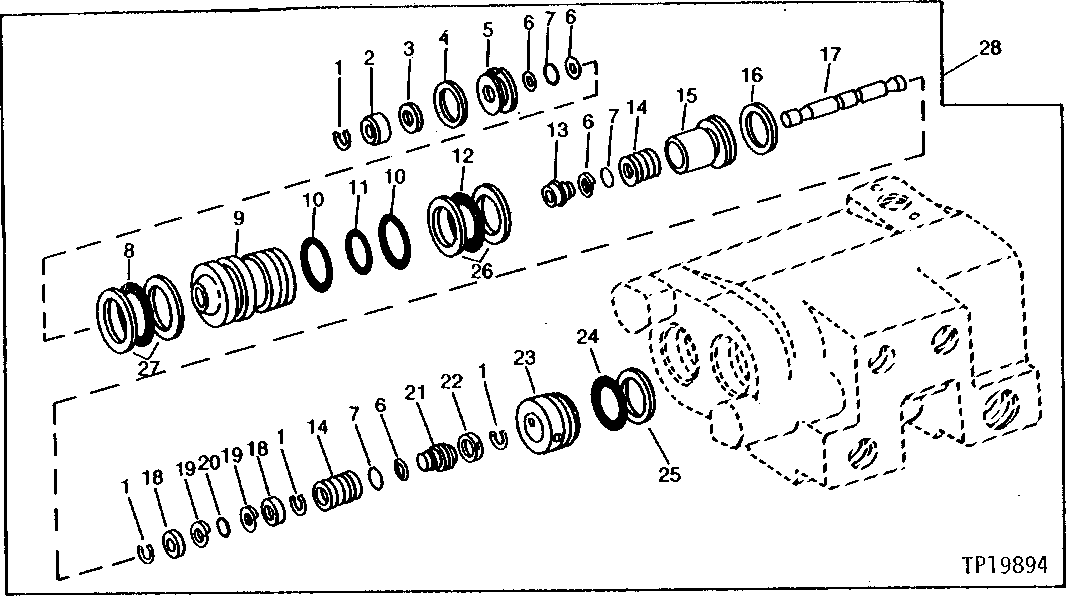

DELUXE POPPET ASSEMBLY (FRONT-MOUNTED EQUIPMENT, RIPPER AND FLOAT VALVE) [04J24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T56343	4	SNAP RING	(K)
2	T42411	1	RETAINER	-
3	T42422	1	SHIM	(K) 0.51 MM (.020")
4	T42420	1	RING	-
5	T42409	1	POPPET	PRESSURE
6	R26551	4	BACK-UP RING	(K)
7	R394R	3	O-Ring	(K)
8	R61015	1	O-Ring	(K) (SUB FOR T59952 AND R31378, THIS APPLICATION) (ALSO ORDER (2) R78392)
9	T52755	1	CYLINDER LINER	-
10	R35473	2	Back-Up Ring	(K)
11	R29463	1	O-Ring	(K)
12	R81906	1	O-Ring	(K) (SUB FOR T42416 AND T11220, THIS APPLICATION) (ALSO ORDER (2) R81189)
13	T48596	1	POPPET	LOAD CHECK
14	T48598	2	SPRING	-
15	T42430	1	SLEEVE	-
16	T52754	1	RING	-
17	T42408	1	SHAFT	-
18	T42417	2	RETAINER	-
19	-	2	Part 19	(K) ( T42406 NO LONGER AVAILABLE) (SUB RE30357)
20	-	1	Part 20	(K) ( T42407 NO LONGER AVAILABLE) (SUB RE30357)
21	T48597	1	POPPET	RETURN
22	T59720	1	RING	METERING
23	R73261	1	SEAT	(SUB FOR T56309)
24	R30319	1	O-Ring	(K) (SUB FOR T42414) (ALSO ORDER R81188)
25	R81188	1	BACK-UP RING	(K) (SUB FOR T60654, THIS APPLICATION) (USE WITH R30319)
26	R81189	2	BACK-UP RING	(K) (SUB FOR U41971, THIS APPLICATION) (USE WITH R81906 AND R61015)
27	R78392	2	BACK-UP RING	(K)
28	AT54094	1	VALVE	DELUXE WITH ANTI- CAVITATION

DELUXE POPPET ASSEMBLY (FRONT-MOUNTED EQUIPMENT, RIPPER AND FLOAT VALVE) [04J24]
