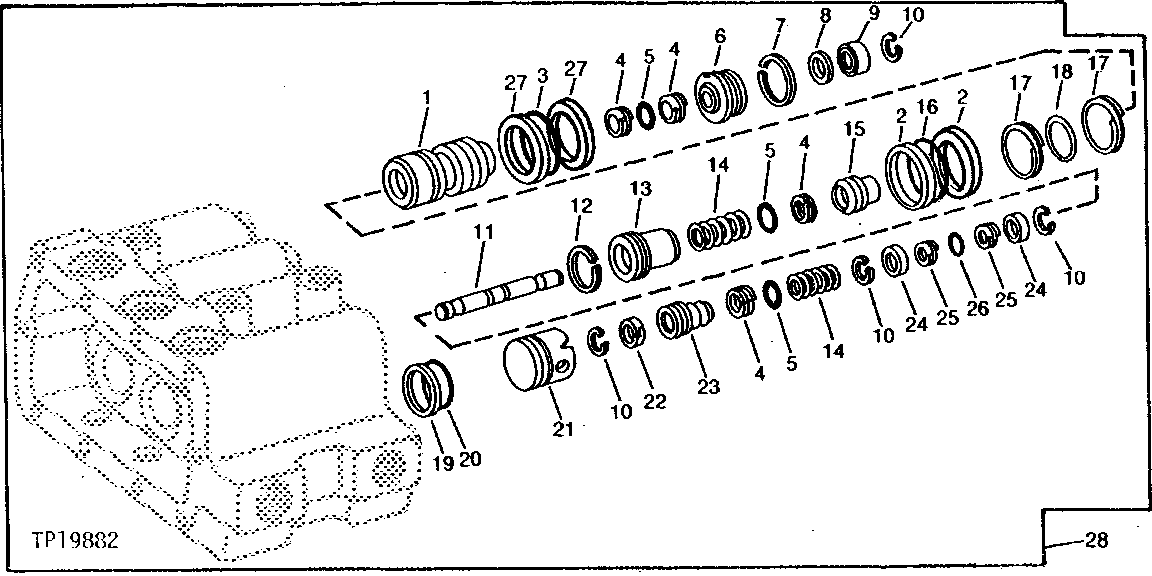

BLADE FLOAT DELUXE POPPET ASSEMBLY (BLADE LIFT VALVE) [04I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T52755	1	CYLINDER LINER	-
2	R81189	2	BACK-UP RING	(K) (SUB FOR U41971, THIS APPLICATION) (USE WITH R81906 AND R61015)
3	R61015	1	O-Ring	(K) (SUB FOR T59952 AND R31378, THIS APPLICATION) (ALSO ORDER (2) R78392)
4	R26551	4	BACK-UP RING	(K)
5	R394R	3	O-Ring	(K)
6	T42409	1	POPPET	PRESSURE
7	T42420	1	RING	-
8	T42422	1	SHIM	(K) 0.51 MM (.020")
9	T42411	1	RETAINER	-
10	T56343	4	SNAP RING	(K)
11	T42408	1	SHAFT	-
12	T52754	1	RING	-
13	T42430	1	SLEEVE	-
14	T48598	2	SPRING	-
15	T48596	4	POPPET	LOAD CHECK
16	R81906	1	O-Ring	(K) (SUB FOR T42416 AND T11220, THIS APPLICATION) (ALSO ORDER (2) R81189)
17	R35473	2	Back-Up Ring	(K)
18	R29463	1	O-Ring	(K)
19	R81188	1	BACK-UP RING	(K) (SUB FOR T60654, THIS APPLICATION) (USE WITH R30319)
20	R30319	1	O-Ring	(K) (SUB FOR T42414) (ALSO ORDER R81188)
21	R73261	1	SEAT	(SUB FOR T56309)
22	T59720	1	RING	METERING
23	T48597	1	POPPET	RETURN
24	T42417	2	RETAINER	-
25	-	2	Part 25	(K) ( T42406 NO LONGER AVAILABLE) (SUB RE30357)
26	-	1	Part 26	(K) ( T42407 NO LONGER AVAILABLE) (SUB RE30357)
27	R78392	2	BACK-UP RING	(K)
28	AT54094	4	VALVE	-

BLADE FLOAT DELUXE POPPET ASSEMBLY (BLADE LIFT VALVE) [04I09]
