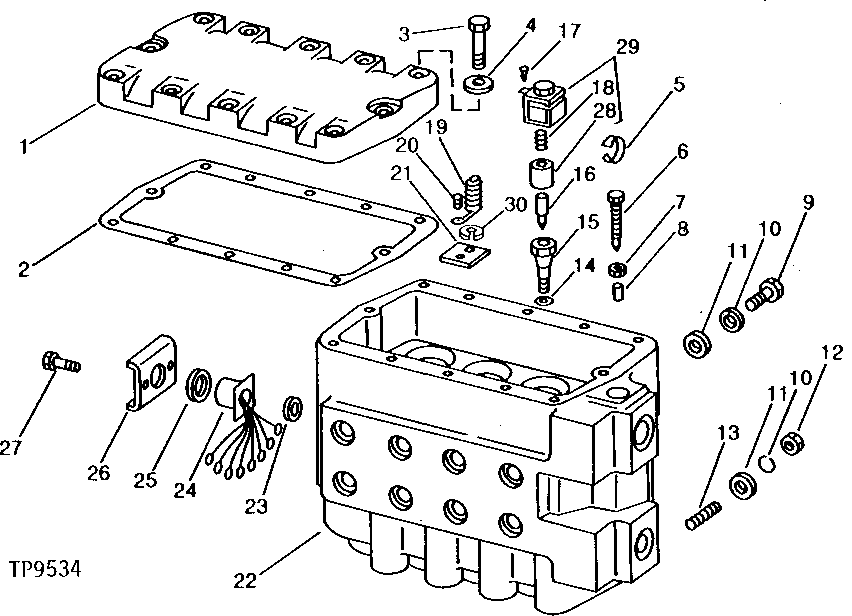

BLADE CONTROL VALVE HOUSING AND COVER [04G20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R66847	1	COVER	-
1	T42448	1	COVER	(SUB R66847)
2	T42447	1	GASKET	-
3	19H1990	12	Cap Screw	1/2" X 2-1/4"
4	T20168	12	Washer	-
5	AT41441	1	TIE BAND	-
6	T48451	1	BOLT	-
7	T48450	1	NUT	-
8	R42883	1	NEEDLE ROLLER	(SUB FOR M1817T)
9	19H2472	2	Cap Screw	1/2" X 1" 1/2" X 1"
10	T20168	3	Washer	-
11	24H1111	3	Washer	17/32" X 1-1/16" X 0.090"
12	14H1040	1	Nut	1/2"
13	R32101	1	STUD	-
14	R30903	8	O-Ring	(B)
15	R73431	8	VALVE SEAT INSERT	(SUB FOR T42396)
16	T42397	8	PIN FASTENER	-
17	37M7033	4	Screw	(SUB FOR T42403 OR M45349)
18	-	1	Part 19	( R69561 NO LONGER AVAILABLE)
19	T42400	8	SPRING	-
20	T42402	8	SCREW	-
21	T42401	3	PAD	-
21	R79632	1	SPACER	(NOT ILLUSTRATED) (GROUND)
22	T56478	1	HOUSING	-
23	T42399	1	BACK-UP RING	-
24	-	1	Part 26	(SUB FOR AT51694) ( RE15579 NO LONGER AVAILABLE FOR SERVICE)
25	24H1226	1	Washer	1/2" X 1-1/4" X 0.083", (SUB FOR 24H1474)
26	T42398	1	PLATE	-
27	19H1648	2	Cap Screw	3/8" X 3/4"
28	-	1	Part 30	( R69560 NO LONGER AVAILABLE)
29	AR89611	8	SOLENOID	(SUB FOR AT41435)
30	12H295	1	Lock Washer	0.190"

BLADE CONTROL VALVE HOUSING AND COVER [04G20]
