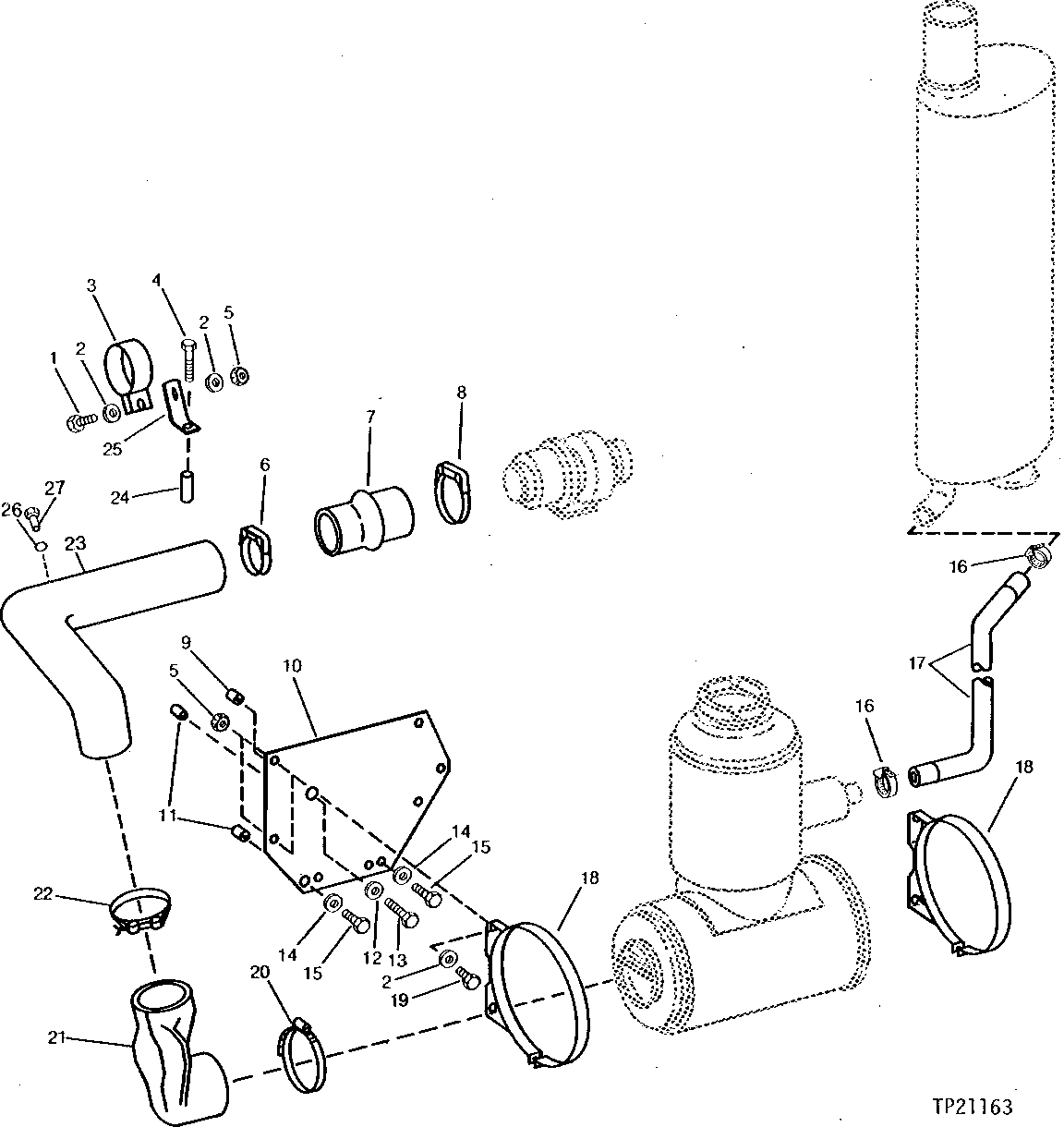

AIR CLEANER MOUNTING AND HOSES (6466) [02H19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2633	1	Cap Screw	3/8" X 1-1/2"
2	24H1305	6	Washer	13/32" X 13/16" X 0.065"
3	T69419	1	Clamp	-
4	19H3168	1	Cap Screw	5/8" X 3-3/4"
5	T11234	5	Lock Nut	-
6	AT50924	1	Hose Clamp	-
7	H84706	1	Hose	(SUB FOR T67133)
8	AT37450	1	CLAMP	-
9	28H1504	1	BUSHING	0.824" X 1.050" X 1-7/8"
10	T76693	1	PLATE	(SUB T79487, (4) 19H3239, 19H2969 AND (2) 19H2646)
10	T82595	1	Plate	(SUB FOR T79487)
11	28H1496	2	Spacer	0.493" X 0.675" X 1-1/8"
12	24H1368	1	Washer	21/32" X 1-5/16" X 0.090"
13	19H2641	1	Cap Screw	5/8" X 3-1/4"
13	19H2969	1	Cap Screw	5/8" X 3-1/2"
14	24H1322	2	Washer	29/64" X 13/16" X 0.065"
15	19H2678	2	Cap Screw	7/16" X 2-1/8"
15	19H2640	2	CAP SCREW	7/16" X 2-3/8"
16	AR21839	2	Clamp	-
17	T76691	1	Hose	-
18	AT27818	2	CLAMP	-
19	19H2676	4	Cap Screw	3/8" X 1"
19	19H1732	4	Cap Screw	3/8" X 1-1/4"
20	AT39390	1	Hose Clamp	-
21	AT63979	1	ELBOW FITTING	-
22	AT56657	1	Hose Clamp	-
23	-	1	Part 27	(SUB AT115419, R27094 AND P51212 FOR T76692)
23	AT115419	1	Tube	-
24	A11610	1	Bushing	-
25	T67131	1	Angle	-
26	P51212	1	O-Ring	(USE WITH AT115419)
27	R27094	1	Drain Plug	(USE WITH AT115419)

AIR CLEANER MOUNTING AND HOSES (6466) [02H19]
