ACCUMULATOR AND BRAKE PRESSURE AND RETURN LINES [02K03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT42414	1	TUBE	PRESSURE
2	R10093	1	O-Ring	-
3	T54572	1	FITTING	(SUB AT63863, THIS APPLICATION)
4	-	1	Part 4	BRAKE PRESSURE SWITCH, (SUB FOR AT42421) (ALSO ORDER AT63863) ( AT105385 NO LONGER AVAILABLE) (SUB AT85087 AND (2) 57M7097)
4	AT85087	1	PRESSURE SWITCH	-
4	57M7097	2	Elec. Connector Terminal	-
5	AT77439	1	LINE	PRESSURE, (SUB FOR AT59468)
7	AT77440	1	BRAKE LINE	PRESSURE, (SUB FOR AT42422)
8	AT59469	1	TUBE	RETURN
9	R26286	1	O-Ring	-
10	AM31805	1	Fitting	-
11	R26287	1	O-Ring	-
12	T43535	1	FITTING	-
13	T11234	2	Lock Nut	-
14	T19935	1	Clamp	-
15	R40101	2	CLAMP	-
16	28H1508	2	Spacer	3/8" X 1-1/4"
17	19H2732	2	Cap Screw	3/8" X 2-3/4"
18	-	1	Part 21	PRESSURE ( AT42415 NO LONGER AVAILABLE FOR SERVICE)
19	24M7296	4	Washer	10.500 X 30 X 2.500 MM, (SUB FOR M1407T, THIS APPLICATION)
6A	AT42420	1	Tee Fitting	-
6B	AT63863	1	Fitting	-

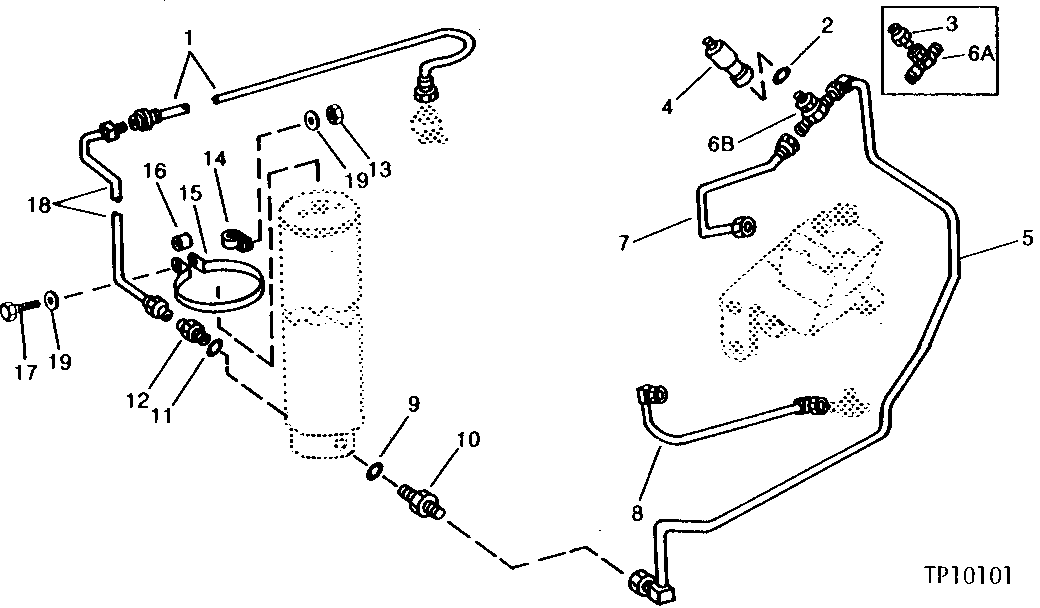

ACCUMULATOR AND BRAKE PRESSURE AND RETURN LINES [02K03]
