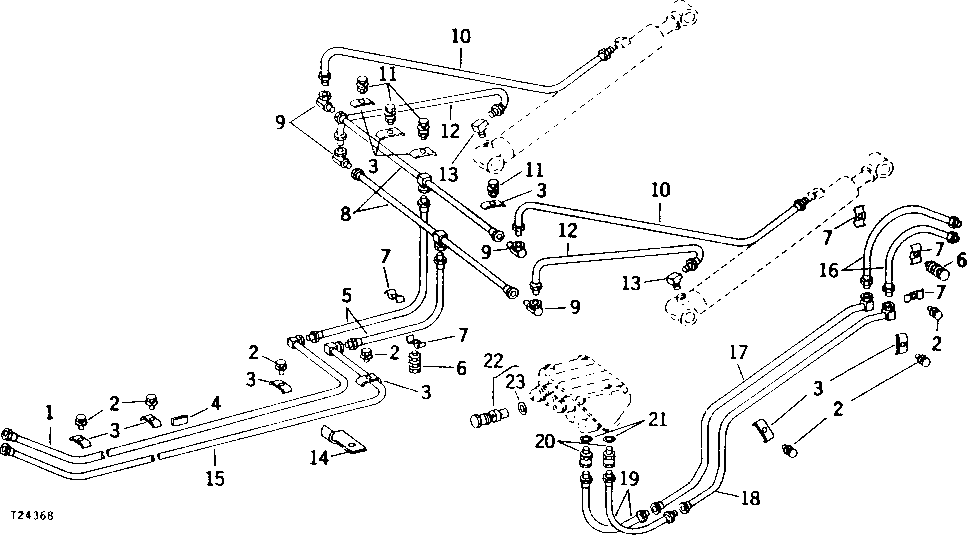

OIL LINES AND FITTINGS-7702 LOG LOADER ATTACHMENT ON 1010 AND 2010 CRAWLER LOADERS [A09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AU12075	1	LINE	-
2	19H3552	7	Cap Screw	5/16" X 1-1/2"
2	12H303	7	Lock Washer	5/16"
3	U13051	10	CLAMP	-
4	U13730	1	REINFORCEMENT	(NO LONGER AVAILABLE)
5	AU12083	2	HYDRAULIC HOSE - FABRICATE	3/8" X 660 MM (26") X 3/8"
5	-	1	Part 7	(MAKE EACH FROM 569.9 MM (23-1/2") OF R34793 HOSE, (2) TY1424 AND (2) R39687)
6	19H1906	2	Cap Screw	5/16" X 1-1/2"
6	14H785	4	Nut	5/16"
7	U13055	5	CLAMP	-
8	AU12072	2	LINE	-
9	AP23054	4	Elbow Fitting	-
10	AH13719	2	HYDRAULIC HOSE	3/8" X 432 MM (17") X 3/8"
10	-	1	Part 14	(MAKE EACH FROM 368.3 MM (14-1/2") OF R34793 HOSE, (2) TY1424 AND (2) R39687)
11	12H303	4	Lock Washer	5/16"
11	14H785	4	Nut	5/16"
11	19H1906	4	Cap Screw	5/16" X 1-1/2"
12	TY3000	2	HYDRAULIC HOSE	3/8" X 24", (SUB FOR AU11737)
13	A5967R	2	Fitting	-
14	U13729	1	CLAMP	(NO LONGER AVAILABLE)
15	AU12076	1	LINE	(NO LONGER AVAILABLE)
16	AU12082	2	HYDRAULIC HOSE - FABRICATE	3/8" X 762 MM (30") X 3/8" 3/8" X 30"
16	-	1	Part 23	(MAKE EACH FROM 698.5 MM (27-1/2") OF R34793 HOSE, (2) TY1424 AND (2) R39687)
17	AU12073	1	LINE	UPPER (NO LONGER AVAILABLE)
18	AU12074	1	LINE	LOWER (NO LONGER AVAILABLE)
19	AU11746	2	HYDRAULIC HOSE - FABRICATE	1/2" X 381 MM (15") X 1/2"
19	-	1	Part 27	(MAKE EACH FROM 311.15 MM (12-1/4") OF R34793 HOSE, (2) TY1424, TY1374 AND TY1377)
20	AU11753	2	UNION FITTING	-
21	R26906	2	O-Ring	-
22	AU13110	1	RELIEF VALVE	850 PSI, (FOR BUCKET SECTION IN CONTROL VALVE) (1010 CRAWLER LOADER ONLY) (NO LONGER AVAILABLE)
23	32240	1	O-Ring	-
