STRAW WALKER PLUGGING SENSING UNIT AND SIGNAL HORN

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT39043	1	High Note Horn	(LOW NOTE)
1	R11276	1	HORN	(SUB AT39043)
2	R11278	1	Nut	-
3	21H1184	2	Screw	0.138" X 1-1/8"
3	14H1026	2	Nut	0.138"
4	24H1281	2	Washer	5/32" X 3/8" X 0.049"
5	H80627	1	Grommet	-
6	21H1356	2	Screw	0.190" X 1-1/4"
6	14H778	4	Nut	0.190"
7	H62447	1	Bracket	-
8	H94856	1	Bracket	-
9	H62443	2	GASKET	-
10	28H1611	1	Washer	0.269" X 0.405" X 5/16"
11	21H1302	1	SCREW	1/4" X 5/8"
11	14H786	1	Nut	1/4"
12	H62444	1	Lever	-
13	14H778	4	Nut	0.190"
13	21H1197	2	SCREW	0.190" X 1-1/4"
14	H62445	1	Cover	-
15	AH62345	1	Switch	-
16	H94337	1	Bracket	-
17	19H1227	2	Cap Screw	1/4" X 1/2"
17	12H302	2	Lock Washer	1/4"
17	14H786	2	Nut	1/4"
18	AH62341	1	RELAY	-
19	H96604	1	COVER	(TRACTOR SOUND GARD CAB)
20	H96678	1	Plate	(TRACTOR NON-SOUND GARD CAB)
21	21H1031	3	SCREW	1/4" X 7/8"
21	12H302	3	Lock Washer	1/4"
21	14H786	3	Nut	1/4"
22	M42230	1	PLUG	(TRACTOR SOUND GARD CAB LESS LOW SHAFT SPEED MONITOR)
22	H80305	1	Grommet	(TRACTOR SOUND GARD CAB WITH LOW SHAFT SPEED MONITOR)
23	M42230	1	PLUG	(TRACTOR NON-SOUND GARD LESS LOW SHAFT SPEED MONITOR)
23	H80305	1	Grommet	(TRACTOR NON-SOUND GARD CAB WITH LOW SHAFT SPEED MONITOR)

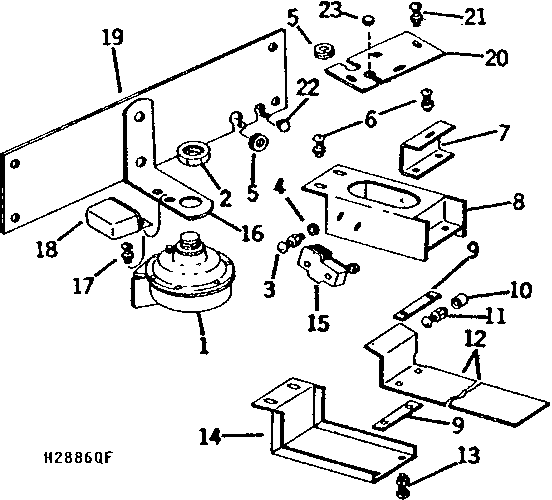

STRAW WALKER PLUGGING SENSING UNIT AND SIGNAL HORN
