PRIMARY COUNTERSHAFT AND UNLOADING AUGER DRIVE TIGHTENERS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	1	Lock Washer	1/2"
1	08H4460	1	Cap Screw	1/2" X 7-1/2"
1	14H1040	1	Nut	1/2"
2	H92862	1	Trunnion	-
3	19H1815	1	Cap Screw	1/2" X 1-1/4"
3	12H301	1	Lock Washer	1/2"
3	14H1040	1	Nut	1/2"
4	24H1111	15	Washer	17/32" X 1-1/16" X 0.090"
5	AH92309	1	Bracket	-
6	03H1522	3	Bolt	1/2" X 1-1/4"
6	12H301	3	Lock Washer	1/2"
6	14H1040	3	Nut	1/2"
7	H76498	1	Eyebolt	-
7	14H1040	2	Nut	1/2"
7	12H301	1	Lock Washer	1/2"
8	H94479	1	Support	-
9	19H1731	2	Cap Screw	3/8" X 1"
9	12H304	2	Lock Washer	3/8"
9	14H812	2	NUT	3/8"
10	14H1039	1	Nut	5/8"
10	12H294	1	Lock Washer	5/8"
11	AH92308	1	Arm	-
12	28H2515	1	Bushing	0.742" X 1.050" X 3/4"
13	19H1863	1	Cap Screw	5/8" X 3"
14	AH66202	1	Idler	197 MM (7-3/4") DIA
15	19H1992	1	Cap Screw	1/2" X 4"
16	AH92349	1	Arm	-
17	H98387	2	Bracket	(SUB H94387)
17	H94387	2	Bracket	-
18	AH87119	1	Pulley	(SUB AH93318, (2) H94353 AND (2) H94387)
18	AH93318	1	Idler	203 MM (8") DIA, (WITH AH81161 BEARING)
18	AH81161	1	Ball Bearing	-
19	T21242	2	Washer	-
20	H79449	1	Lock Nut	-
21	JD7797	1	Lubrication Fitting	1/4", STRAIGHT
22	11H236	2	Cotter Pin	1/8" X 1"
23	H24979	1	Pin Fastener	-
24	H94510	1	Spring	OUTER
25	H94509	1	Spring	INNER
26	14H821	2	Nut	5/8"
27	14H1039	2	Nut	5/8"
28	24H1106	1	Washer	11/16" X 1-3/4" X 0.134"
29	H94507	1	Eyebolt	-
30	H94511	1	Angle	-
31	24H1368	2	Washer	21/32" X 1-5/16" X 0.090"
32	C1960N	1	SPRING	-
33	H93497	1	Angle	-
34	H93482	1	Bolt	-
35	24H1274	1	Washer	49/64" X 1-1/4" X 0.048"
36	JD7788	1	Lubrication Fitting	45°, 1/4"
37	AH93610	1	Brace	-
38	19H1781	4	CAP SCREW	1/2" X 3-1/2"
38	12H301	4	Lock Washer	1/2"
38	14H1040	4	Nut	1/2"
39	H94353	2	Bushing	-

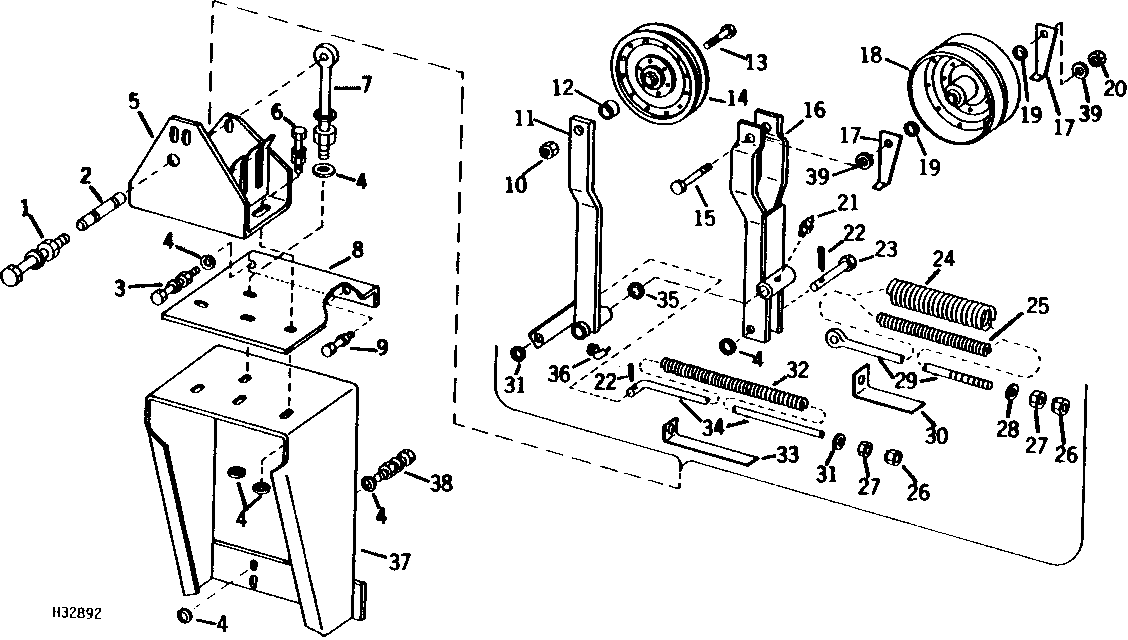

PRIMARY COUNTERSHAFT AND UNLOADING AUGER DRIVE TIGHTENERS

Нет текстового описания
