CLEAN GRAIN ELEVATOR CONVEYOR CHAIN SHAFT, SHEAVE, AND SPROCKETS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H897	2	Set Screw	1/4" X 1/4"
2	JD8554	2	Eccentric Locking Collar	-
3	H87472	4	Pressed Flanged Housing	-
4	JD8665	2	Ball Bearing	-
5	19H2462	2	Cap Screw	3/8" X 3-1/4"
6	14H732	2	Nut	3/8"
7	AH80508	2	Bracket	-
8	H82948	1	Shaft	-
9	11H244	1	Cotter Pin	3/16" X 2-1/2"
10	H86758	27	Paddle	-
10	AH87765	27	Chain Link	-
10	24H1286	54	Washer	9/32" X 1/2" X 1/16", (BUCKET)
10	14H786	1	Nut	1/4", (2 USED, STEEL CLEANING PADDLE; 54 USED, BUCKET)
10	19H1948	1	Cap Screw	1/4" X 3/4", (2 USED, STEEL CLEANING PADDLE; 54 USED, BUCKET)
10	AH86897	54	Bolt	(PADDLE) (REPLACES RIVETS)
10	H86761	1	Paddle	-
10	AH77055	27	Conveyor	-
10	AC14974	1	Pin Fastener	-
10	C10263	1	Track Chain W/O Shoes	-
10	AC11779	1	Pin Fastener	-
10	C10233	1	Chain Link	-
10	C10232	1	Link	-
10	AH87747	1	Link Chain	(CA-550 ROLLER CHAIN) (27 PADDLES)
11	-	1	Part 24	8 MM X 8 MM X 57 MM (5/16" X 5/16" X 2-1/4"), (CUT FROM H64375 IN AH64587 KEY STOCK KIT)
12	-	2	Part 25	6 MM X 35 MM (1/4" X 1-3/8"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
13	H11340	1	Chain Sprocket	(SUB H108576, THIS APPLICATION)
13	H108576	1	Chain Sprocket	8 TEETH
14	AH75986	1	Pulley	270 MM (10-5/8") DIA.
15	22H853	2	Set Screw	3/8" X 7/8"
16	14H732	2	Nut	3/8"

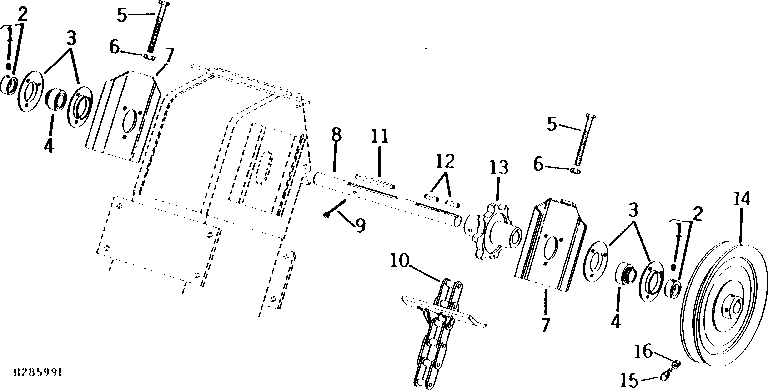

CLEAN GRAIN ELEVATOR CONVEYOR CHAIN SHAFT, SHEAVE, AND SPROCKETS
