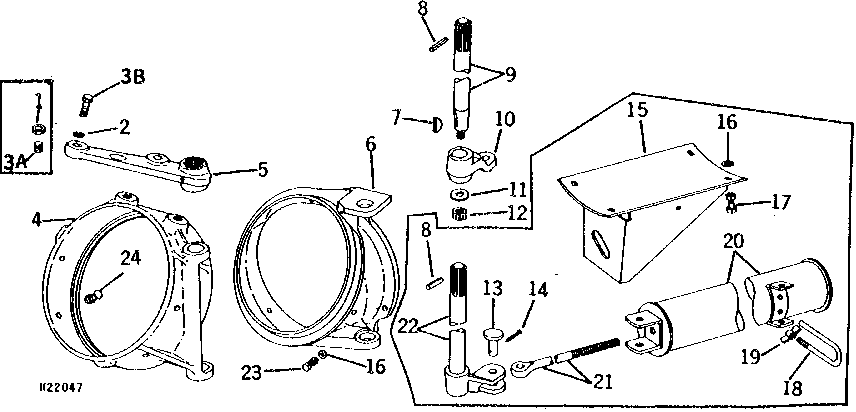

UNLOADING AUGER HINGE AND SWING ( - 311300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H794	2	Nut	3/4"
2	12H236	2	Lock Washer	3/4"
4	AH79774	1	Hinge	OUTER, WITH STUDS (MARKED H76100)
5	H76101	1	Arm	UPPER SWING
6	H76099	1	Hinge	INNER
7	26H40	1	Shaft Key	1/4" X 2-1/8"
7	26H103	1	Shaft Key	1/4" X 2-1/8"
8	34H288	1	Spring Pin	3/16" X 1-3/4"
9	H76782	1	Shaft	(USE WITH HYDRAULIC SWING)
10	H76103	1	Arm	LOWER SWING (USE WITH HYDRAULIC SWING)
11	24H1378	1	Washer	11/16" X 1-15/32" X 0.134"
12	P48676	1	Nut	(SUB B30434)
12	B30434	1	Lock Nut	(USE WITH HYDRAULIC SWING)
13	RV685A	1	Pin Fastener	(SPRING ASSIST)
14	11H236	1	Cotter Pin	1/8" X 1"
15	AH76623	1	Support	(SPRING ASSIST)
16	24H1305	12	Washer	13/32" X 13/16" X 0.065"
16	24H1305	8	Washer	13/32" X 13/16" X 0.065"
17	03H1500	4	Bolt	3/8" X 1"
17	14H812	4	NUT	3/8"
18	H80628	1	U-Bolt	-
19	14H827	1	Wing Nut	3/8"
20	AH76625	1	Spring Assembly	(SHORT AUGER)
20	AH76626	1	Spring Assembly	(LONG AUGER)
21	H78212	1	Eyebolt	-
22	AH78908	1	Hinge	(SPRING ASSIST)
23	19H1732	8	Cap Screw	3/8" X 1-1/4"
23	14H812	8	NUT	3/8"
24	14H785	8	Nut	5/16"
24	03H1709	8	Bolt	5/16" X 1"
3A	T20756	2	STUD	(SUB (2) 19H1798)
3B	19H1798	2	Cap Screw	3/4" X 1-3/4"

UNLOADING AUGER HINGE AND SWING ( - 311300)
