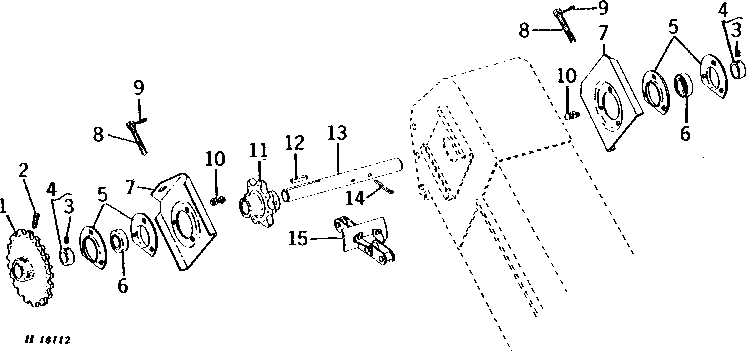

TAILINGS ELEVATOR CONVEYOR CHAIN, SPROCKETS, AND BEARINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H10801	1	Chain Sprocket	19 TEETH
2	22H837	2	SET SCREW	3/8" X 5/8"
3	22H897	2	Set Screw	1/4" X 1/4"
4	JD8554	2	Eccentric Locking Collar	-
5	P46463	4	Pressed Flanged Housing	(SUB H87472)
5	H87472	4	Pressed Flanged Housing	-
6	JD8555	2	BALL BEARING	(SUB JD8665, THIS APPLICATION)
6	JD8665	2	Ball Bearing	-
7	AH78549	2	Bracket	-
8	H78294	2	Bolt	-
9	J16931	2	Pin	-
10	03H2184	6	Bolt	5/16" X 5/8"
10	14H785	6	Nut	5/16"
11	H63578	1	Chain Sprocket	7 TEETH
11	H75980	1	Chain Sprocket	(SUB H63578)
12	-	1	Part 16	6 MM X 6 MM X 38 MM (1/4" X 1/4" X 1-1/2"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
13	H75978	1	Shaft	-
14	11H249	2	Cotter Pin	1/4" X 2"
15	AH87765	24	Chain Link	-
15	AH21791	24	Link	(SUB AH87765)
15	14H786	1	Nut	1/4"
15	24H1286	96	Washer	9/32" X 1/2" X 1/16", (BUCKET)
15	19H1948	1	Cap Screw	1/4" X 3/4", (2 USED, STEEL CLEANING PADDLE; 96 USED, BUCKET)
15	AH86897	48	Bolt	WITH NUT (PADDLE)
15	P46115	48	Rivet	(SUB AH86897)
15	H86761	1	Paddle	(STEEL CLEANING)
15	H81581	1	Paddle	(SUB H86761)
15	H63576	48	Loader Bucket	-
15	H86759	24	Paddle	(RUBBER)
15	H33808	24	Paddle	(SUB H86759)
15	AC14974	1	Pin Fastener	-
15	C10263	1	Track Chain W/O Shoes	-
15	AC11779	1	Pin Fastener	-
15	C10233	1	Chain Link	-
15	C10232	1	Link	-
15	AH76980	1	Link Chain	(CA-550 ROLLER CHAIN) (48 BUCKETS)
15	AH96388	1	Link Chain	(CA-550 ROLLER CHAIN) (24 PADDLES)
15	AH87751	1	Link Chain	(SUB AH96388)
15	AH75440	1	Link Chain	(SUB AH87751)

TAILINGS ELEVATOR CONVEYOR CHAIN, SPROCKETS, AND BEARINGS
