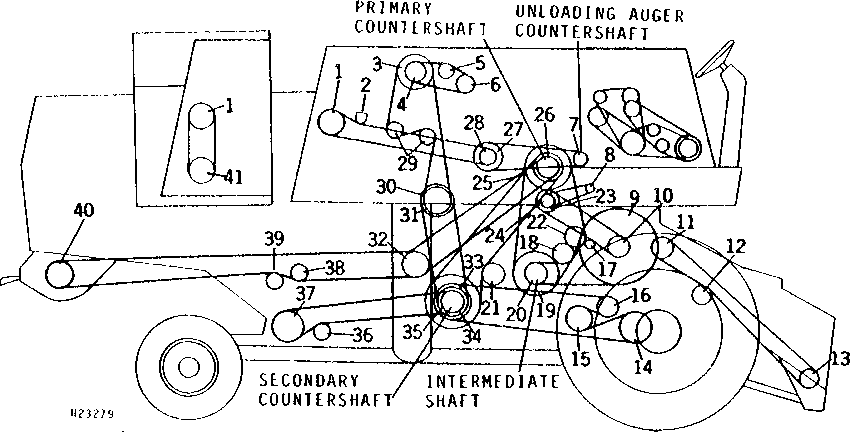

SHEAVES, SPROCKETS, AND TIGHTENERS ON RIGHT-HAND SIDE - CONTINUED

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
20	H79645	1	Pulley	191 MM (7-1/2") DIA, DRIVE, CYLINDER, (LOW SPEED)
20	H79644	1	Pulley	273 MM (10-3/4") DIA, DRIVE, CYLINDER, (HIGH SPEED)
21	AH85276	1	Idler	229 MM (9") DIA, TIGHTENER, SECONDARY COUNTERSHAFT DRIVE
22	H79489	1	Idler	165 MM (6-1/2") DIA, TIGHTENER, INTERMEDIATE CYLINDER DRIVE
22	AH86839	1	Idler	165 MM (6-1/2") DIA, TIGHTENER, WITH BEARING, INTERMEDIATE CYLINDER DRIVE, (MARKED H85863)
23	H79758	1	Chain Sprocket	31 TEETH, DRIVEN, ROTARY DEFLECTOR
23	AH80756	1	Pulley	305 MM (12") DIA., DRIVEN, ROTARY DEFLECTOR
23	AH87155	1	Pulley	229 MM (9") DIA., DRIVE, ROTARY DEFLECTOR
24	H81935	1	Pulley	(SUB H97481)
24	H97481	1	Pulley	76 MM (3") DIA, DRIVE, CYLINDER TACHOMETER
25	AH84846	1	Pulley	413 MM (16-1/4") DIA, SLIDING, DRIVE, INTERMEDIATE CYLINDER, (MARKED H75010), (SUB FOR AH78077)
25	H85444	1	Chain Sprocket	28 TEETH, DRIVE, INTERMEDIATE CYLINDER, (SLOW SPEED) (182 RPM)
25	H85443	1	Chain Sprocket	23 TEETH, DRIVE, INTERMEDIATE CYLINDER, (SLOW SPEED) (150 RPM)
25	AH84884	1	Pulley	413 MM (16-1/4") DIA, FIXED, DRIVE, INTERMEDIATE CYLINDER, (SUB FOR AH80049 AND AH84886), ALSO ORDER JD7797 AND JD9450, INCLUDES R27899
26	H83144	1	Pulley	(SUB FOR H78946) (SUB H84104)
26	H84104	1	Pulley	185 MM AND 192 MM (7-9/32" AND 11-1/2") DIA, DRIVE, SECONDARY COUNTERSHAFT AND FRONT STRAW CHOPPER
27	H76958	1	Chain Sprocket	60 TEETH, DRIVEN, INNER UNLOADING AUGER
28	H80800	1	Chain Sprocket	8 TEETH, DRIVE, AUXILIARY UNLOADING AUGERS
29	AH14097	2	Idler	178 MM (7") DIA., TIGHTENER, CLEAN GRAIN ELEVATOR DRIVE
30	AH75987	1	Pulley	298 MM (11-3/4") DIA, DRIVEN, CLEAN GRAIN ELEVATOR COUNTERSHAFT
31	AH75984	1	Pulley	245 MM (9-5/8") DIA, DRIVE, CLEAN GRAIN ELEVATOR
32	H78743	1	Idler	TIGHTENER (STRAW CHOPPER DRIVE)
33	AH75978	1	Pulley	(SUB AH92104)
33	AH92104	1	Pulley	508 MM (20") DIA., DRIVEN, SECONDARY COUNTERSHAFT
34	AH75985	1	Pulley	245 MM (9-5/8") DIA., DRIVE, CLEAN GRAIN ELEVATOR COUNTERSHAFT
35	H77020	1	Pulley	162 MM AND 211 MM (6-3/8" AND 8-19/64") DIAS., DRIVE, TAILINGS AUGER AND SHOE GRAIN SUPPLY AUGERS
36	AH14097	1	Idler	179 MM (7") DIA, TIGHTENER, TAILINGS LOWER AUGER DRIVE
37	AH75990	1	Pulley	333 MM (13-1/8") DIA, DRIVEN, LOWER TAILINGS AUGER, (SUB AH75988 AND N110085)
37	AH75988	1	Pulley	299 MM (11-3/4") DIA, DRIVEN, LOWER TAILINGS AUGER
38	AN15237	1	Idler	202 MM (7-5/16") DIA, IDLER, STRAW CHOPPER
39	AH85276	1	Idler	229 MM (9") DIA., IDLER, STRAW CHOPPER DRIVE
40	AH78637	1	Pulley	203 MM (8") DIA, DRIVEN, STRAW CHOPPER, (MARKED H76186) (SUB AH85419)
40	AH85419	1	Pulley	187 MM (7-3/8") DIA, DRIVEN, STRAW CHOPPER
40	AH90273	1	Sheave Assembly	187 MM (7-3/8") DIA, WITH SET SCREWS
41	H83746	1	Chain Sprocket	22 TEETH, DRIVE, AUXILIARY UNLOADING AUGER HYDRAULIC DRIVE
..	R27899	2	Bushing	-
..	JD7797	1	Lubrication Fitting	USE WITH AH84884
..	JD9450	1	Ball Bearing	USE WITH AH84884

SHEAVES, SPROCKETS, AND TIGHTENERS ON RIGHT-HAND SIDE - CONTINUED
