Открытый узел

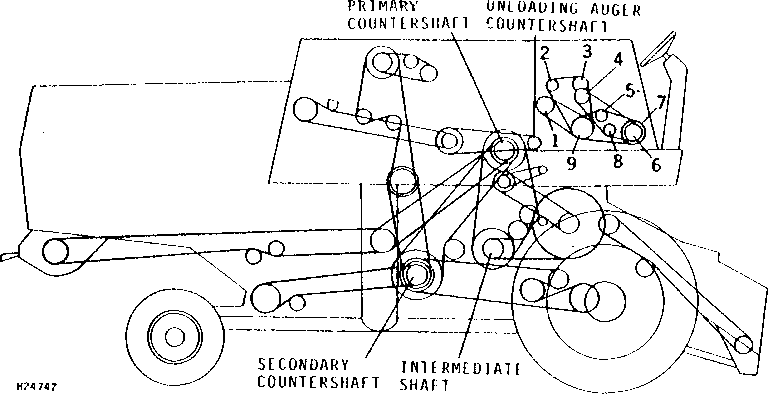

SHEAVES AND TIGHTENERS ON RIGHT-HAND SIDE OF ENGINE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH85846	1	Pulley	152 MM (6") DIA, SHEAVE AND ELECTROMAGNETIC CLUTCH, DRIVEN, AIR COMPRESSOR, (GASOLINE)
1	AH85846	1	Pulley	152 MM (6") DIA, SHEAVE AND ELECTROMAGNETIC CLUTCH, DRIVEN, AIR COMPRESSOR, (DIESEL)
1	AH85847	1	Clutch	178 MM (7") DIA, SHEAVE AND ELECTROMAGNETIC CLUTCH, DRIVEN, AIR COMPRESSOR, (DIESEL)
1	AH79301	1	Clutch	(SUB AH85846)
2	H81713	1	Pulley	(SUB AH93619)
2	H93619	1	Pulley	76 MM (3") DIA, DRIVEN, ALTERNATOR
2	R52159	1	PULLEY	83 MM (3-1/4") DIA, DRIVEN, ALTERNATOR, (404TH-01)
3	R34058	1	PULLEY	149 MM (5-55/64") DIA, DRIVEN, WATER PUMP, (362, 404)
3	R40212	1	PULLEY	168 MM (6-5/8") DIA, DRIVEN, WATER PUMP, (362)
3	AR40149	1	Pulley	DRIVEN, WATER PUMP (404)
4	H77824	1	Pulley	177 MM (6-61/64") DIA, DRIVEN, ENGINE FAN, (GASOLINE)
4	H77824	1	Pulley	177 MM (6-61/64") DIA, DRIVEN, ENGINE FAN, (404DH-01)
4	AH85041	1	Pulley	196 MM (7-23/32") DIA, DRIVEN, ENGINE FAN, (404DH-04, 404TH-01)
5	AH77172	1	Idler	102 MM (4") DIA., TIGHTENER, ENGINE FAN COUNTERSHAFT DRIVE
6	AH77171	1	Pulley	165 MM (6-1/2") DIA., DRIVE, ENGINE FAN
6	AH82232	1	Pulley	165 MM (6-1/2") DIA, DRIVE, ENGINE FAN
7	AH77175	1	Pulley	178 MM (7") DIA., DRIVEN, ENGINE FAN COUNTERSHAFT
7	AH82233	1	Pulley	178 MM (7") DIA, DRIVEN, ENGINE FAN COUNTERSHAFT
8	AH77172	1	Idler	102 MM (4") DIA, TIGHTENER, ENGINE FAN DRIVE
9	R40015	1	Pulley	167 MM (6-9/16") DIA, DRIVE, WATER PUMP AND ALTERNATOR, (GASOLINE)
9	R48656	1	Pulley	167 MM (6-9/16") DIA, DRIVE, WATER PUMP AND ALTERNATOR, (GASOLINE)
9	AR53112	1	Absorber	SHEAVE, WATER PUMP AND ALTERNATOR (DIESEL) (SUB FOR AR47950)
9	AR51933	1	Absorber	168 MM (6-5/8") DIA, SHEAVE, DRIVE, WATER PUMP AND ALTERNATOR, (404DH-01)
9	AR63328	1	Pulley With Dampener	184 MM (7-1/4") DIA, DAMPER, DRIVE (ENGINE FAN COUNTERSHAFT, WATER PUMP, AND ALTERNATOR) (404DH-04)
9	AR57241	1	PULLEY WITH DAMPENER	210 MM (8-1/4") DIA, DAMPER, DRIVE, (ENGINE FAN COUNTERSHAFT, WATER PUMP, AND ALTERNATOR) (404TH-01)
9	H80077	1	Pulley	168 MM (6-5/8") DIA, DRIVE (ENGINE FAN COUNTERSHAFT) (WITH AIR CONDITIONING) (GASOLINE)
9	H79234	1	Pulley	168 MM (6-5/8") DIA, DRIVE (ENGINE FAN COUNTERSHAFT) (WITHOUT AIR CONDITIONING) (GASOLINE)
9	H80077	1	Pulley	168 MM (6-5/8") DIA, DRIVE (ENGINE FAN COUNTERSHAFT) (WITH AIR COND)(404DH-01)
9	H79234	1	Pulley	168 MM (6-5/8") DIA, DRIVE (ENGINE FAN COUNTERSHAFT) (WITHOUT AIR COND)(404DH-01)

SHEAVES AND TIGHTENERS ON RIGHT-HAND SIDE OF ENGINE
