REAR WIRING HARNESS, FUEL PUMP, AND FUEL GAUGE SENDING UNIT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P45476	2	Grommet	-
2	-	1	Part 2	1295MM (51") LONG, (MAKE FROM (2) R32018 AND (2) R32007)
3	H24710	1	Screw	SELF-TAPPING
4	H79897	1	Plate	-
5	AH78087	1	Wiring Harness	-
6	24H1289	1	Washer	21/64" X 5/8" X 0.049"
7	AH77279	1	Clip	-
8	-	1	Part 9	(TAIL LIGHT) (MAKE FROM 2285 MM (9") OF R77500, R77475, T34067 AND R32026 FROM RE11154 KIT AND R32024) (SUB FOR AH81734)
8	AH78091	1	Wiring Harness	(TAIL LIGHT)
9	AH78090	1	Wiring Harness	(SUB AH87201)
9	AH87201	1	Wiring Harness	(SUB AH96228)
9	AH96228	1	Wiring Harness	-
10	AT18988	1	SWITCH	NEUTRAL, SAFETY
11	AH76862	1	Sender	OIL PRESSURE
11	AH76862	1	Sender	OIL PRESSURE
12	AH75548	1	Fuel Pump	(SUB AH80665)
12	14H605	1	Nut	0.164"
12	AH107362	1	PUMP	-
12	AH80665	1	Pump	(SUB AH107362)
13	19H1227	2	Cap Screw	1/4" X 1/2"
13	14H786	2	Nut	1/4"
14	AH79151	1	Wiring Harness	-
15	H85092	5	Screw	SELF-TAPPING
16	AH75546	1	Gauge	-
16	14H631	1	Nut	0.190"
16	AH85268	1	Level Gauge	-
17	AH11015	3	Clip	-
18	H64612	7	Clip	-
19	T24959	5	Clamp	-
20	T32231	2	Clamp	-
21	H101158	1	TRANSISTOR	-

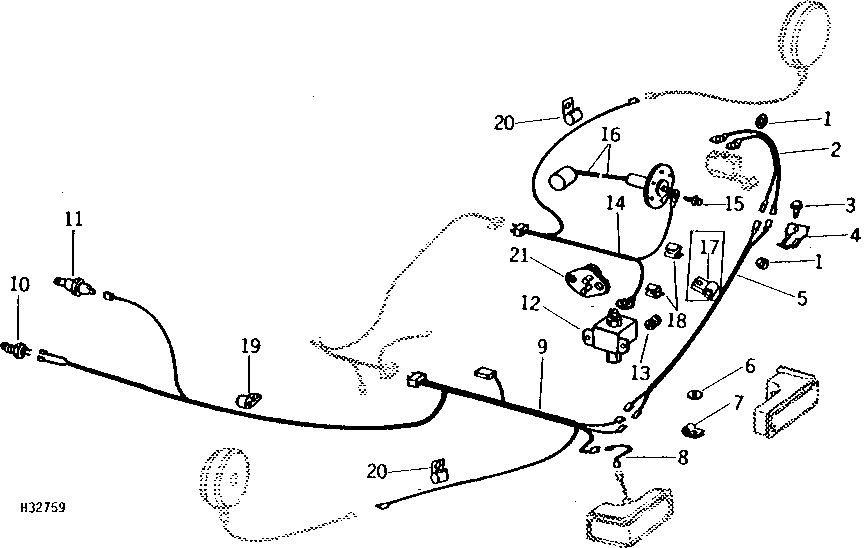

REAR WIRING HARNESS, FUEL PUMP, AND FUEL GAUGE SENDING UNIT

Нет текстового описания
