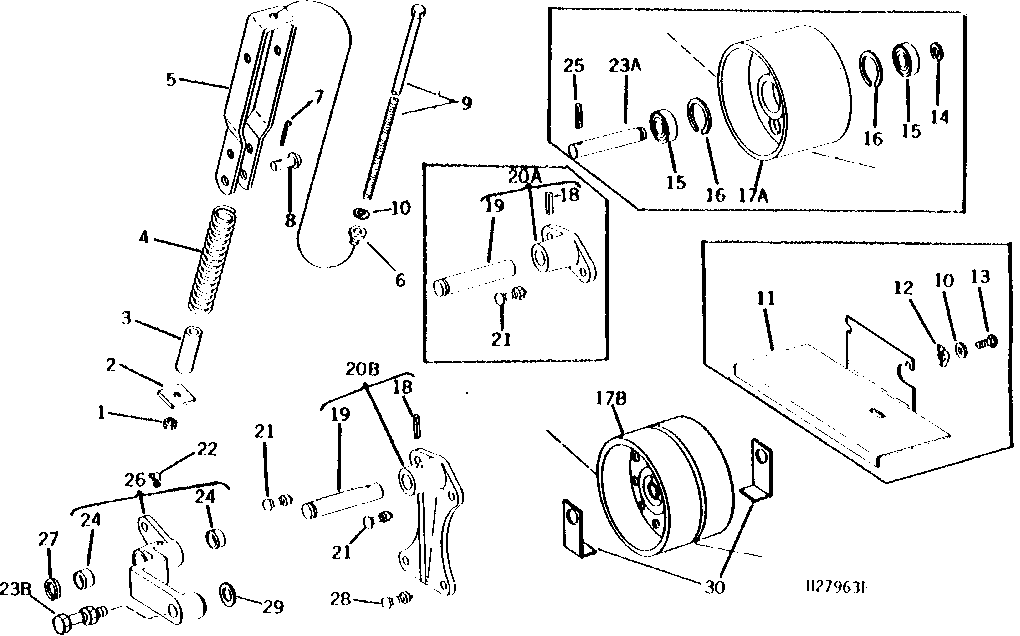

PLATFORM AND FEEDER HOUSE VARIABLE DRIVE LOWER BELT TIGHTENER AND SHIELD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	1	NUT	3/8"
2	H77287	1	Strap	-
3	P16332	1	Spacer	(SUB 28H2611)
3	28H2611	1	Spacer	0.546" X 0.840" X 2"
4	H26552	1	Compression Spring	-
5	H77292	1	Clevis	-
5	H84955	1	Clevis	(SUB H94108)
5	H94108	1	Clevis	-
6	H77289	1	Washer	-
7	11H216	1	COTTER PIN	3/16" X 1"
8	H748DA	1	Pin Fastener	-
9	08H4665	1	Cap Screw	3/8" X 10"
10	24H1305	3	Washer	13/32" X 13/16" X 0.065"
10	24H1305	3	Washer	13/32" X 13/16" X 0.065"
11	AH78580	1	Shield	-
12	14H827	2	Wing Nut	3/8"
13	03H1500	2	Bolt	3/8" X 1"
14	A369R	1	SNAP RING	-
15	JD9239	2	Ball Bearing	-
16	Z9250H	2	Snap Ring	-
18	34H316	1	Spring Pin	1/4" X 1-1/2"
19	H76846	1	Pin Fastener	-
21	14H812	2	NUT	3/8"
21	03H1557	2	Bolt	3/8" X 1-1/4"
22	JD7806	1	Lubrication Fitting	90°, 1/4"
24	L4694T	2	Bushing	-
25	34H315	1	Spring Pin	1/4" X 1-3/8"
26	AH86900	1	Arm	-
26	AH77708	1	Arm	-
27	P46614	1	Snap Ring	-
28	03H1524	1	Bolt	5/16" X 1", (REGULAR)
28	14H785	1	Nut	5/16"
29	T21242	1	Washer	-
30	H85859	2	Bracket	(SUB H94395)
30	H94395	2	Bracket	-
17A	H79867	1	Idler	165 MM (6-1/2") DIA.
17B	AH81161	1	Ball Bearing	-
17B	AH87118	1	Sheave Assembly	165 MM (6-1/2") DIA., (WITH AH81161 BEARING)
20A	AH75820	1	Shaft	(SUB AH80928)
20B	AH80928	1	Bracket	-
23A	H64212	1	Pin Fastener	-
23B	H79449	1	Lock Nut	-
23B	19H1739	1	Cap Screw	1/2" X 4-1/2"

PLATFORM AND FEEDER HOUSE VARIABLE DRIVE LOWER BELT TIGHTENER AND SHIELD
