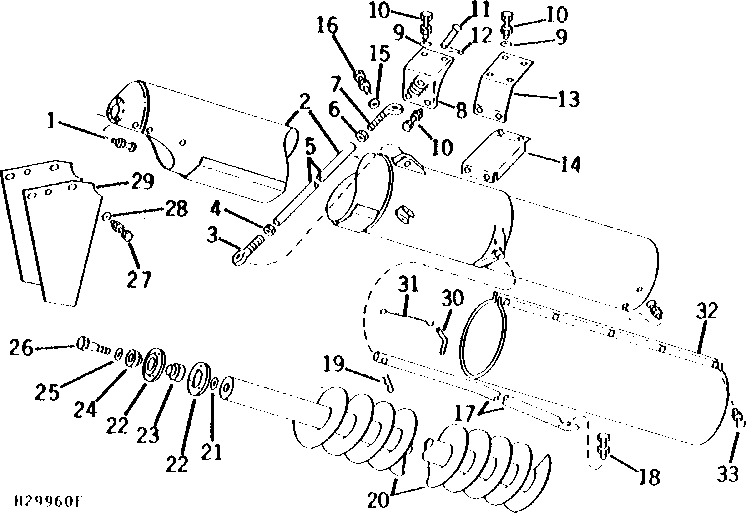

OUTER UNLOADING AUGER AND HOUSING (311301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H785	3	Nut	5/16"
1	03H1524	3	Bolt	5/16" X 1"
2	AH99414	1	Housing	(LONG)
2	AH96514	1	Housing	(SUB AH99415)
2	AH99415	1	Housing	(LONG) (PERFORATED)
2	AH96513	1	Housing	(SUB AH99414)
3	H76760	1	Eyebolt	-
4	14H793	1	Nut	3/4"
5	AH75801	1	Brace	-
6	14H929	1	Nut	3/4"
7	H76759	1	Eyebolt	-
8	AH83542	1	Support	-
9	24H1305	6	Washer	13/32" X 13/16" X 0.065"
10	19H1731	6	Cap Screw	3/8" X 1"
10	14H812	6	NUT	3/8"
11	RV685A	1	Pin Fastener	-
12	11H216	1	COTTER PIN	3/16" X 1"
13	H76768	1	Reinforcement	-
14	H76769	1	Brace	-
15	12H294	1	Lock Washer	5/8"
16	19H1734	1	Cap Screw	5/8" X 2"
16	14H1039	1	Nut	5/8"
17	H78210	1	Brace	TRANSPORT
18	19H1905	1	Cap Screw	5/16" X 1"
18	14H785	1	Nut	5/16"
19	A3581R	1	Spring Locking Pin	-
20	AH75809	1	Auger	(REGULAR)
20	AH76627	1	Auger	(SUB AH99394)
20	AH99394	1	Auger	(LONG)
21	24H1663	1	Washer	49/64" X 1-1/2" X 0.134"
22	C13434	2	PRESSED FLANGED HOUSING	-
23	JD8665	1	Ball Bearing	-
24	H76790	1	Bushing	-
25	12H236	1	Lock Washer	3/4"
26	19H1862	1	Cap Screw	3/4" X 2-1/2"
27	19H1905	6	Cap Screw	5/16" X 1"
27	14H785	12	Nut	5/16"
28	24H1296	6	Washer	11/32" X 1-3/8" X 0.134"
29	H85939	1	Spout	(RUBBER)
30	H35630	1	Pin Fastener	-
31	AH20515	1	Link Chain	-
32	H85941	1	Cover	-
33	21H1077	5	Screw	5/16" X 2"
33	21H1172	5	Screw	5/16" X 1-1/2"
33	24H1136	5	Washer	11/32" X 11/16" X 0.065"
33	14H785	5	Nut	5/16"

OUTER UNLOADING AUGER AND HOUSING (311301 - )
