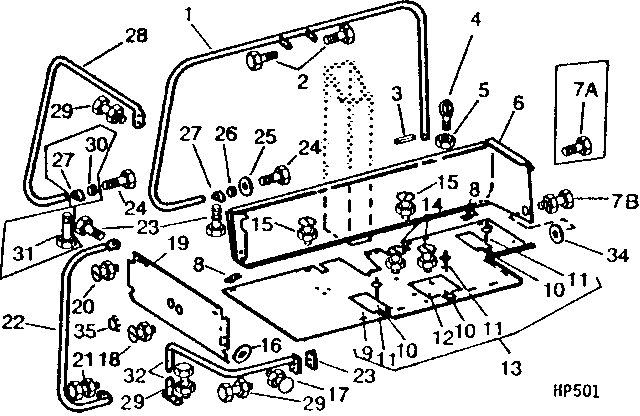

OPERATOR'S PLATFORM SHIELDS, FLOORBOARD, FLOORMATS, AND HANDRAILS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH83980	1	Handrail	(SUB FOR AH77103) (NOT USED WITH OPERATOR'S CAB)
2	H77931	2	SCREW	SELF-TAPPING
3	34H351	1	Spring Pin	3/8" X 1-1/2"
4	H83921	1	Pivot	(SUB FOR H78995)
5	14H812	1	NUT	3/8"
6	AH77022	1	Shield	FRONT
6	AH87714	1	Shield	FRONT
8	H80970	1	Reinforcement	FRONT (USED WITH OPERATOR'S CAB)
9	H78801	2	Door	-
9	H82936	2	Door	-
10	AP23835	3	Latch	-
11	H62547	3	Rivet	-
12	H78811	1	Door	-
12	H82937	1	Door	-
13	AH77029	1	Board	(SUB H78825)
13	H78825	1	Board	(LESS FLOOR MATS)
13	H85964	1	Board	(SUB H95213)
13	H95213	1	Board	(LESS FLOOR MATS)
13	AH79249	1	Mat	(SUB AH86448)
13	AH86448	1	Mat	(BELT DRIVE) (USED WITH OPERATOR'S CAB)
13	AH79250	1	Mat	(SUB AH86447)
13	AH86447	1	Mat	(HYDROSTATIC DRIVE) (USED WITH OPERATOR'S CAB)
14	21H1069	2	SCREW	3/8" X 1"
14	14H812	2	NUT	3/8"
15	21H1075	14	Screw	5/16" X 1"
15	14H785	14	Nut	5/16"
16	24H1287	1	Washer	9/32" X 5/8" X 0.065"
17	21H1310	1	SCREW	1/4" X 1/2"
17	14H786	1	Nut	1/4"
18	14H785	1	Nut	5/16"
18	21H1304	1	Screw	5/16" X 3/4"
19	H78807	1	Shield	(SUB H23126 AND H103618)
19	H103618	1	Shield	REAR, L.H.
20	21H1030	2	SCREW	3/8" X 3/4"
20	14H812	2	NUT	3/8"
21	19H1936	2	Cap Screw	3/8" X 3/4"
21	14H812	2	NUT	3/8"
22	H81636	1	Handrail	(SUB AH81541)
22	AH81541	1	Handrail	(SUB AH92084, R32026, R32016, AND 2007 MM (79") OF R66319, AVAILABLE IN AR84006 WIRING KIT)
22	AH92084	1	Handrail	(SUB AH97858)
22	AH97858	1	Handrail	(USED WITH OPERATOR'S CAB)
23	19H1936	2	Cap Screw	3/8" X 3/4"
24	19H2941	2	Screw	3/8" X 2"
25	24H1303	1	WASHER	13/32" X 11/16" X 0.065"
26	P48864	1	Bushing	(NOT USED WITH OPERATOR'S CAB)
27	H78996	1	Pivot	L.H. (NOT USED WITH OPERATOR'S CAB)
27	H78996	2	Pivot	L.H. (NOT USED WITH OPERATOR'S CAB)
28	AH77102	1	Handrail	(SUB AH82241)
28	AH82241	1	Handrail	(SUB AH83979)
28	AH83979	1	Handrail	L.H., REAR (NOT USED WITH OPERATOR'S CAB)
29	19H1731	2	Cap Screw	3/8" X 1"
29	19H1731	6	Cap Screw	3/8" X 1"
29	14H812	2	NUT	3/8"
30	P50362	1	Bushing	(NOT USED WITH OPERATOR'S CAB)
31	19H2284	1	Cap Screw	3/8" X 7/8"
32	AH81614	1	Handrail	L.H., REAR (USE WITH LADDER LANDING EXTENSION)
32	AH83539	1	Handrail	(SUB AH97870)
32	AH97870	1	Handrail	L.H., REAR (USE WITH OPERATOR'S CAB)
33	H82944	1	Angle	USE WITH LADDER LANDING EXTENSION)
33	H83448	1	Reinforcement	USE WITH OPERATOR'S CAB)
34	24H1136	1	Washer	11/32" X 11/16" X 0.065"
35	H23126	2	Plug	-
7A	H65108	1	Screw	SELF-TAPPING
7B	19H1900	1	Cap Screw	5/16" X 3/4"
7B	14H785	1	Nut	5/16"

OPERATOR'S PLATFORM SHIELDS, FLOORBOARD, FLOORMATS, AND HANDRAILS
