OPERATOR'S CAB MOUNTING BRACKETS, BUSHING, AND SEALS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	318 MM (12-1/2") LONG, (CUT FROM H92017)
2	-	1	Part 2	1524 MM (60") LONG, (CUT FROM H93819)
3	-	1	Part 3	787 MM (31") LONG, (CUT FROM H92017)
4	-	1	Part 4	102 MM (4") LONG, (CUT FROM H92017)
5	19H2128	2	CAP SCREW	3/8" X 3"
6	24H1312	5	Washer	13/32" X 1-3/8" X 0.105"
7	AH79104	2	Isolator	-
8	24H1315	2	Washer	13/32" X 2-1/8" X 0.134"
9	14H812	5	NUT	3/8"
10	-	1	Part 10	686 MM (27") LONG, (CUT FROM H92017)
11	-	1	Part 11	953 MM (37-1/2") LONG, (CUT FROM H92017)
12	AH79105	3	Isolator	-
13	19H1726	3	Cap Screw	3/8" X 2-1/4"
14	-	1	Part 14	198 MM (7-51/64") LONG, (CUT FROM H92017)
15	H93579	1	Boot	(SUB FOR H80764)
16	H82771	2	Plug	-
16	H80761	2	Retainer	(SUB H82771)
17	-	1	Part 18	198 MM (7-13/16") LONG, (CUT FROM H92017)
18	-	1	Part 19	457 MM (18") LONG, (CUT FROM H92017)
19	AH79758	1	Weatherstrip	(45 MM X 45 MM X 1020 MM) LONG
20	H94149	1	Boot	(SUB FOR H80766)
21	H88958	1	Boot	(SUB FOR H80765)
22	H80763	1	Retainer	(SUB H82771)
22	H82771	2	Plug	-
23	-	1	Part 25	870 MM (34-1/4") LONG, (CUT FROM H92017)
24	-	1	Part 26	102 MM (4") LONG, (CUT FROM H92017)
25	-	1	Part 27	1220 MM (48") LONG, (CUT FROM H92017)
26	H80970	2	Reinforcement	-
27	-	1	Part 29	3 MM X 6 MM (1/8" X 1/4"), (CUT FROM H81847)
27	-	1	Part 30	6 MM X 13 MM (1/4" X 1/2"), (CUT FROM H93819)
28	H23746	1	PLUG	(USED WITH AIR CONDITIONING)
29	-	1	Part 32	(CUT FROM AH80335)
30	AH96110	1	Seal	-

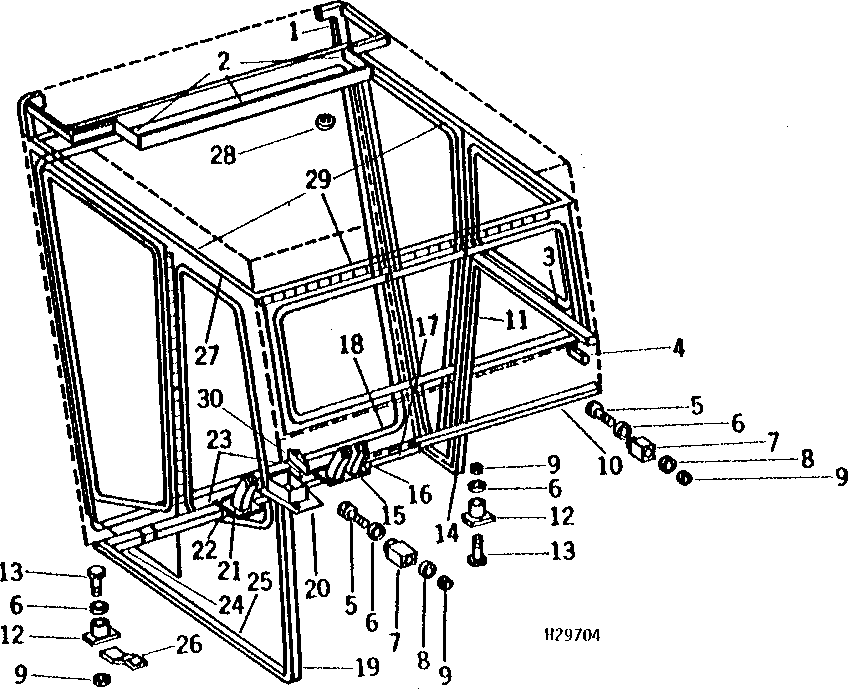

OPERATOR'S CAB MOUNTING BRACKETS, BUSHING, AND SEALS
