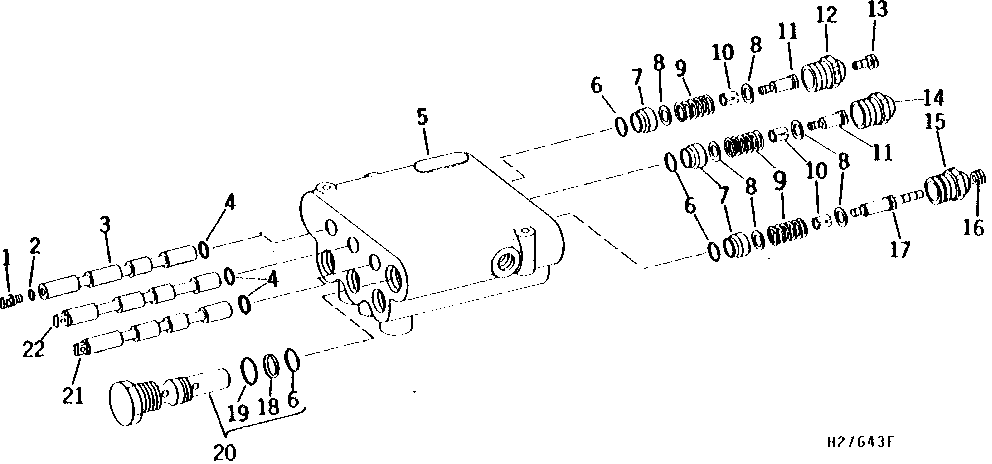

Main Hydraulic Control Valve Spools and Relief Valve, Belt Drive, Hydrostatic Drive (113942 - 114138)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H80460	1	Clevis	-
2	A3917R	1	O-Ring	(A)
3	-	1	Part 3	(PLATFORM LIFT) (SUB AH75410)
4	H36256	3	O-Ring	(A)
5	-	1	Part 5	(SUB AH75410)
6	R375R	4	O-Ring	(A)
6	T42786	4	O-Ring	-
7	N111488	3	BUSHING	-
8	N31767	6	WASHER	-
9	H60819	3	SPRING	-
10	H62801	3	BUSHING	-
11	H63987	2	CAP SCREW	-
12	AH78797	1	Plug	-
13	H80451	1	Screw	(SUB 19H2551 AND 14H882)
13	19H2551	1	Cap Screw	5/16" X 3/4"
13	14H882	1	Nut	5/16"
14	AH78788	1	PLUG	-
15	H80456	1	Cap	-
16	H80459	1	Lock Nut	-
17	H80455	1	Screw	-
18	H63357	1	BACK-UP RING	(A)
19	T13119	8	O-Ring	(A)
19	T13119	7	O-Ring	-
20	AH63330	1	PRESSURE RELIEF VALVE	-
20	AH88890	1	Relief Valve	(SUB AW13064)
20	AW13064	1	Pressure Relief Valve	-
21	-	1	Part 27	(HYDRAULIC LIFT REEL) (SUB AH75410)
22	-	1	Part 28	(SELECTIVE GROUND SPEED) (SUB AH75410)
99	AH75410	1	Control Valve	(SUB AH88803)
99	AH88803	1	Valve	(BELT DRIVE) (REMANUFACTURED)
99	AH75410	1	Control Valve	(HYDROSTATIC DRIVE) (FURNISH AH75412 AND AH75449 - SEE PAGES 45-8 AND 45-10)
99	AH78792	1	O-Ring Kit	SEAL REPAIR

Main Hydraulic Control Valve Spools and Relief Valve, Belt Drive, Hydrostatic Drive (113942 - 114138)
