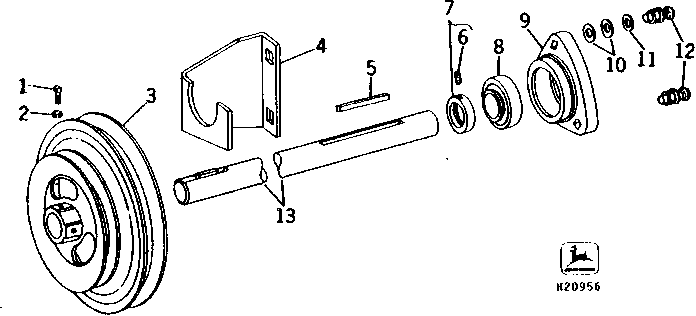

LOWER SHAFT AND SHEAVE FOR PLATFORM AND FEEDER HOUSE FIXED BELT DRIVE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H817	2	Set Screw	3/8" X 3/4"
2	14H732	2	Nut	3/8"
3	H75888	1	Pulley	223 MM AND 323 MM (8-49/64" AND 12-23/32") DIAS
4	H80373	1	Bracket	(SUB H82533)
4	H82533	1	Bracket	(REGULAR FEEDER HOUSE)
4	H81585	1	Bracket	(SUB H82533)
4	H82533	1	Bracket	(LONG FEEDER HOUSE)
5	-	1	Part 8	10 MM X 10 MM X 95 MM (3/8" X 3/8" X 3-3/4"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
6	22H897	1	Set Screw	1/4" X 1/4"
7	JD8563	1	Eccentric Locking Collar	-
7	JD9201	1	Eccentric Locking Collar	-
8	JD9202	1	Ball Bearing	-
8	JD8562	1	Ball Bearing	-
9	H75884	1	Housing	-
9	H75896	1	Housing	(SUB H93927)
9	H93927	1	Housing	-
10	24H1348	6	WASHER	9/16" X 1" X 1/4"
11	24H1682	1	Washer	13/32" X 7/8" X 0.120"
12	03H1480	3	Bolt	3/8" X 1-1/4"
12	03H1833	3	Bolt	3/8" X 1-3/4"
12	14H812	3	NUT	3/8"
13	AH76567	1	Shaft	(SUB AH81866 AND AH80599)
13	AH81866	1	Shaft	10 MM X 10 MM X 95 MM (3/8" X 3/8" X 3-3/4"), (SUB H75896, JD9201, JD9202, (3) 03H1833, (3) 14H812, (6) 24H1348 AND A KEY)
13	AH80599	1	Shaft	-

LOWER SHAFT AND SHEAVE FOR PLATFORM AND FEEDER HOUSE FIXED BELT DRIVE
