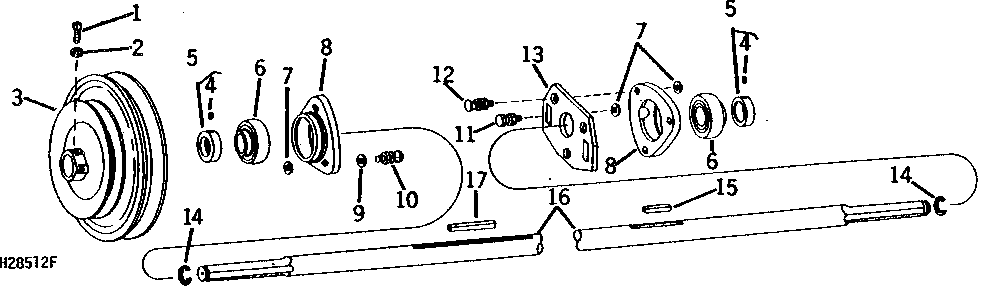

LOWER SHAFT AND SHEAVE FOR PLATFORM AND FEEDER HOUSE FIXED BELT DRIVE (213301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H82306	2	Screw	-
2	14H732	2	Nut	3/8"
3	H75888	1	Pulley	223 MM AND 323 MM (8-49/64" AND 12-23/32") DIAS.
4	-	2	Part 4	-
5	JD9201	2	Eccentric Locking Collar	-
6	JD9202	2	Ball Bearing	-
7	24H1305	8	Washer	13/32" X 13/16" X 0.065"
8	H75896	2	Housing	(SUB H93927)
8	H93927	2	Housing	-
9	24H1682	1	Washer	13/32" X 7/8" X 0.120"
10	14H812	3	NUT	3/8"
10	12H304	3	Lock Washer	3/8"
10	03H1557	3	Bolt	3/8" X 1-1/4"
11	03H1519	2	Bolt	3/8" X 1"
11	12H304	2	Lock Washer	3/8"
11	14H812	2	NUT	3/8"
12	10H1027	3	Bolt	3/8" X 1-1/4"
12	12H304	3	Lock Washer	3/8"
12	14H812	3	NUT	3/8"
13	H82532	1	Plate	-
14	H80926	2	Snap Ring	-
15	-	1	Part 22	10 MM X 10 MM X 38 MM (3/8" X 3/8" X 1-1/2"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
16	H80922	1	Shaft	(SUB H115230)
16	H115230	1	Shaft	-
17	-	1	Part 25	10 MM X 10 MM X 95 MM (3/8" X 3/8" X 3-3/4"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)

LOWER SHAFT AND SHEAVE FOR PLATFORM AND FEEDER HOUSE FIXED BELT DRIVE (213301 - )
