Lower Countershaft And Sheaves For Platform And Feeder House Variable Belt Drive

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7797	1	Lubrication Fitting	1/4", STRAIGHT
1	22H841	1	Set Screw	1/4" X 1/4"
2	H85652	1	Hub	-
2	H77268	1	Hub	(SUB H85652)
3	JD9406	1	Ball Bearing	-
4	H83285	1	Snap Ring	-
4	H83285	2	Snap Ring	-
5	H79405	2	Bushing	(SUB H82457)
5	H82457	2	Bushing	-
5	H82457	4	Bushing	-
5	H82457	6	Bushing	-
6	H75691	2	Bushing	-
7	AH77257	1	Pulley	(MARKED H79402) (SUB AH83397)
7	AH83397	1	Pulley	(MARKED H79402) (SUB AH83817)
7	AH83817	1	Pulley	(MARKED H83722) (SUB AH84613)
7	AH84613	1	Pulley	OUTER, 377 MM (14-55/64") DIA, (MARKED H84201)
7	AH84905	1	Pulley	OUTER, 432 MM (17") DIA, (MARKED H84447)
8	H79404	2	Pin Fastener	-
8	H79404	4	Pin Fastener	-
8	H79404	6	Pin Fastener	-
9	AH84903	1	Pulley	INNER, 432 MM (17") DIA, (MARKED H84445)
9	AH77256	1	Pulley	(MARKED H79401) (SUB AH83816 AND AH83817)
9	AH83816	1	Pulley	INNER, 377 MM (14-55/64") DIA, (MARKED H83721)
10	H25051	1	Seal	-
11	E1343FN	1	Snap Ring	-
12	JD9878	1	NEEDLE BEARING	-
13	H79403	1	Hub	(SUB H83286)
13	H83286	1	Hub	(SUB H84449)
13	H84449	1	Hub	-
14	JD9301	1	Ball Bearing	-
15	H86021	1	Pulley	226 MM (8-29/32") DIA
15	H84448	1	Pulley	(SUB H86021)
15	H76850	1	Pulley	(SUB H86021)
16	19H1765	1	Cap Screw	3/8" X 1-3/4"
17	03H1500	2	Bolt	3/8" X 1"
17	14H812	2	NUT	3/8"
18	24H1305	4	Washer	13/32" X 13/16" X 0.065"
19	AH75825	1	Support	(SUB AH80946)
19	AH80946	1	Support	(SUB FOR H76852, THIS APPLICATION)
19	AH84897	1	Support	-
19	AH80946	1	Support	(USE WITH 24H1669, THIS APPLICATION)
20	19H1731	2	Cap Screw	3/8" X 1"
20	14H812	2	NUT	3/8"
21	24H1669	1	Washer	1-25/64" X 2-1/8" X 0.075"

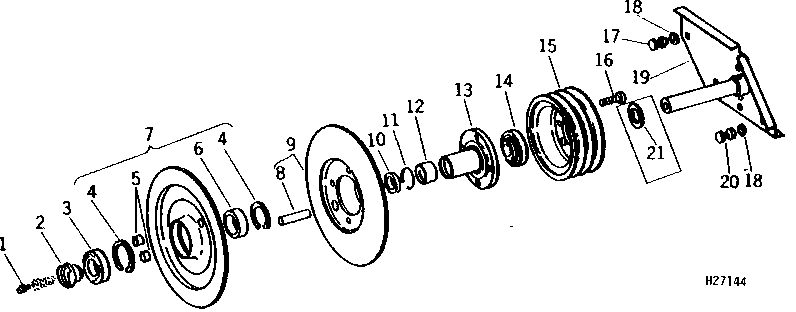

Lower Countershaft And Sheaves For Platform And Feeder House Variable Belt Drive
