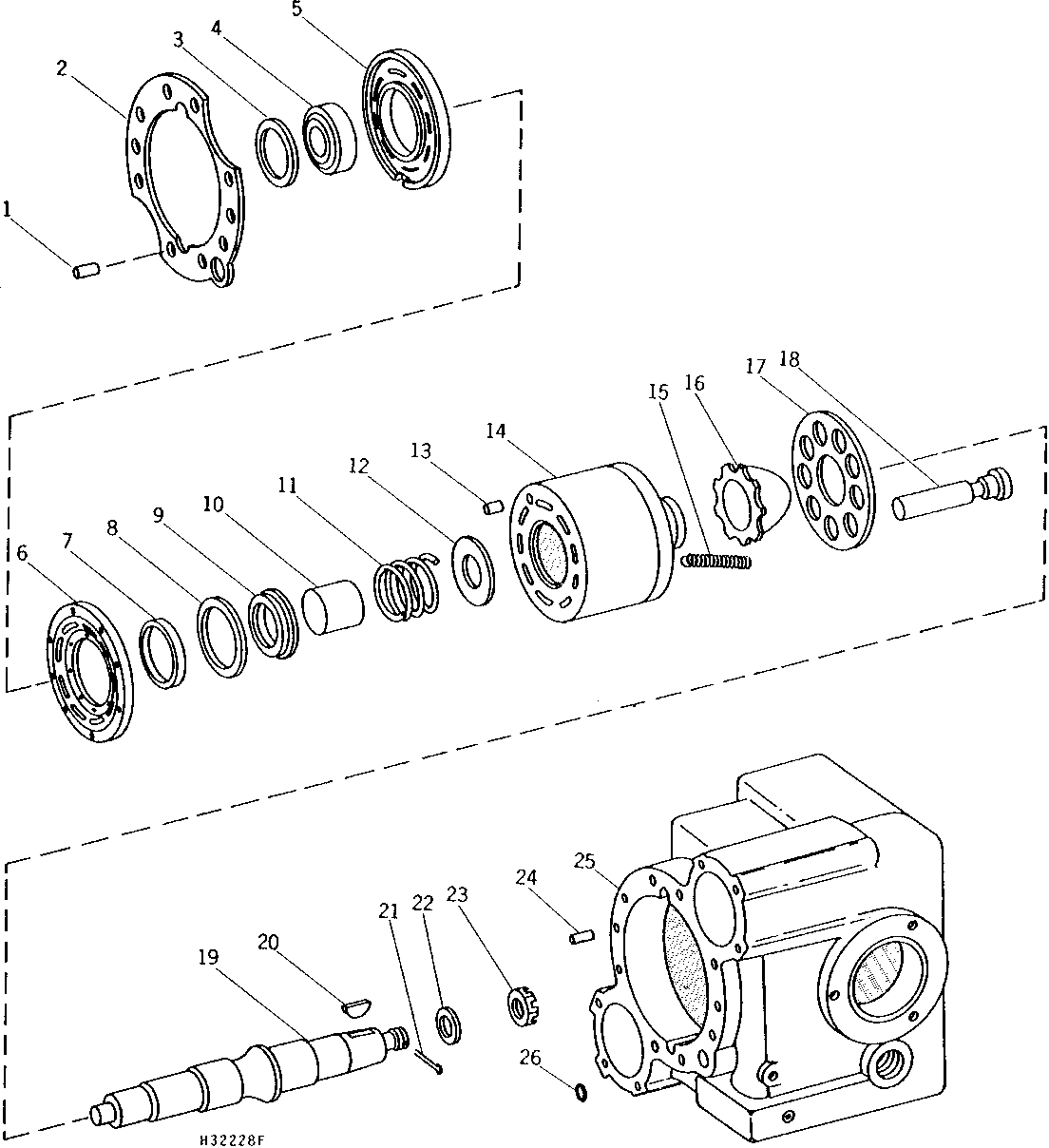

HYDROSTATIC DRIVE PUMP HOUSING, SHAFT AND CYLINDER BLOCK ASSEMBLY

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H63271	1	Pin	-
2	H214564	1	Gasket	(KIT AH80067) (SUB FOR H64829)
3	H81607	1	SHIM	-
4	AH65358	1	Bearing	-
5	H81618	1	Plate	-
6	H64827	1	Plate	(KIT AH96669 OR AH110890) (SUB H109350)
6	H109350	1	Plate	(KIT AH96669 OR AH110890)
7	H64826	1	Guide	(KIT AH96669 OR AH110890)
8	H64825	1	Snap Ring	(KIT AH96669 OR AH110890)
9	H64824	1	Retainer	(KIT AH96669 OR AH110890)
10	H64823	1	Bushing	(KIT AH96669 OR AH110890)
11	H64822	1	Spring	(SUB H83935)
11	H83935	1	RING	(SUB H98068)
11	H98068	1	Spring	(KIT AH96669 OR AH110890)
12	H64821	1	Washer	(KIT AH96669 OR AH110890)
13	H63270	1	PIN	(KIT AH96669 OR AH110890)
14	AH65357	1	Cylinder Block	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 03 THROUGH 08) (SUB AH90557 AND (6) H89093)
14	AH90557	1	Cylinder Block	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 09 AND UP) (KIT AH96669 OR AH110890)
15	H89093	6	COMPRESSION SPRING	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. 09 AND UP) (KIT AH96669 OR AH110890)
15	H64820	9	Spring	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 03 THROUGH 08)
16	H64819	1	Guide	(KIT AH96669 OR AH110890)
17	H64818	1	Retainer	(KIT AH96669 OR AH110890)
18	AH65356	9	Piston	(SUB AH99347 FOR SUNDSTRAND MODEL NO. 90-4002 PRIOR TO PREFIX 10)
18	AH99347	3	KIT	KIT, PISTON
18	AH96666	9	Piston	(FOR SUNDSTRAND MODEL NO. 10 AND ABOVE) (KIT AH96669 OR AH110890)
19	H81614	1	Drive Shaft	-
20	26H41	1	SHAFT KEY	5/16" X 2-1/8"
21	11H237	1	Cotter Pin	1/8" X 2"
22	24H1465	1	Washer	1-3/32" X 1-3/4" X 0.060"
23	H77201	1	Nut	-
24	H63245	4	PIN	-
25	H81611	1	HOUSING	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX THROUGH 09)
25	H97282	1	Housing	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 10 AND UP)
26	H81608	1	O-Ring	(KIT AH80067)
99	AH80067	1	Gasket Kit	(SUB AH213826)
99	AH213826	1	Gasket Kit	(SUB FOR AH96662) SEAL AND O-RING REPAIR
99	AH90559	1	Kit	CYLINDER BLOCK (SERVICE FOR ALL (6) SPRING BLOCK MODELS) (SUB AH96669)
99	AH96669	1	Kit	CYLINDER BLOCK (SUB AH110890)
99	AH110890	1	Kit	CYLINDER BLOCK
