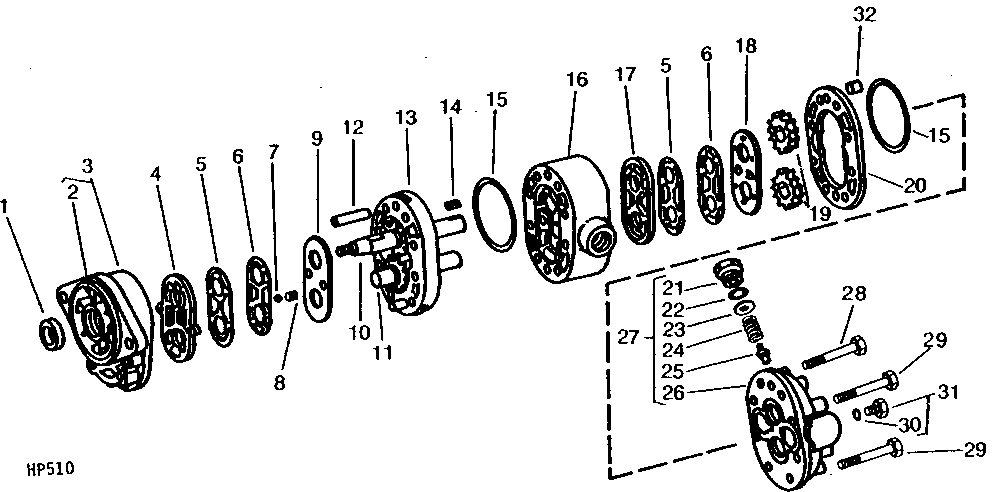

HYDRAULIC PUMP (CESSNA NO. 24385-RAK)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH15442	1	SEAL	(A)
2	-	1	Part 2	(SUB AT12111)
3	AT12111	1	HOUSING	-
4	-	2	Part 4	(A)
5	-	2	Part 5	(A)
6	-	2	Part 6	(A)
7	-	2	Part 7	(A)
8	-	2	Part 8	(A)
9	-	1	Part 9	(A)
10	AH84696	1	Gear	-
11	AH84697	1	Gear	-
12	N111504	2	Dowel Pin	(SUB H65662, THIS APPLICATION AND H80817)
12	H65662	2	Dowel Pin	-
13	H80822	1	HOUSING	-
14	H84321	1	Key	(A)
15	H80821	2	O-Ring	(A)
16	H80819	1	Plate	-
17	-	1	Part 18	(A)
18	-	1	Part 19	(A)
19	H84319	2	Gear	-
20	H84320	1	Housing	-
21	AH108495	1	Drain Plug	-
21	AH79117	1	Fitting	(SUB AH108495)
22	R375R	1	O-Ring	(A) (SUB U40745, THIS APPLICATION)
22	U40745	1	O-Ring	-
23	H31257	1	SHIM	-
24	H31256	1	SPRING	-
24	H60817	1	Spring	-
25	AH18137	1	POPPET	-
26	-	1	Part 30	(A)
27	AH91800	1	Kit	KIT, BACK PLATE REPAIR
27	AH79115	1	Kit	KIT, BACK PLATE REPAIR
28	19H2729	4	Cap Screw	5/16" X 4-1/4"
29	H80823	4	Screw	-
30	R28782	1	O-Ring	(A)
31	AH63282	1	FITTING PLUG	-
32	H80817	2	Dowel Pin	-
99	AH83497	1	Hydraulic Pump	(CESSNA NO. 24385-RAK) (SUB AH89360)
99	AH230810	1	Hydraulic Pump	(SUB FOR AH89360) (CESSNA NO. 24385-RAV) (REMANUFACTURED)
99	AH79116	1	Kit	(SUB AH216701)
99	AH216701	1	Tune-Up Kit	(SUB FOR AH101242) SEAL REPAIR

HYDRAULIC PUMP (CESSNA NO. 24385-RAK)
