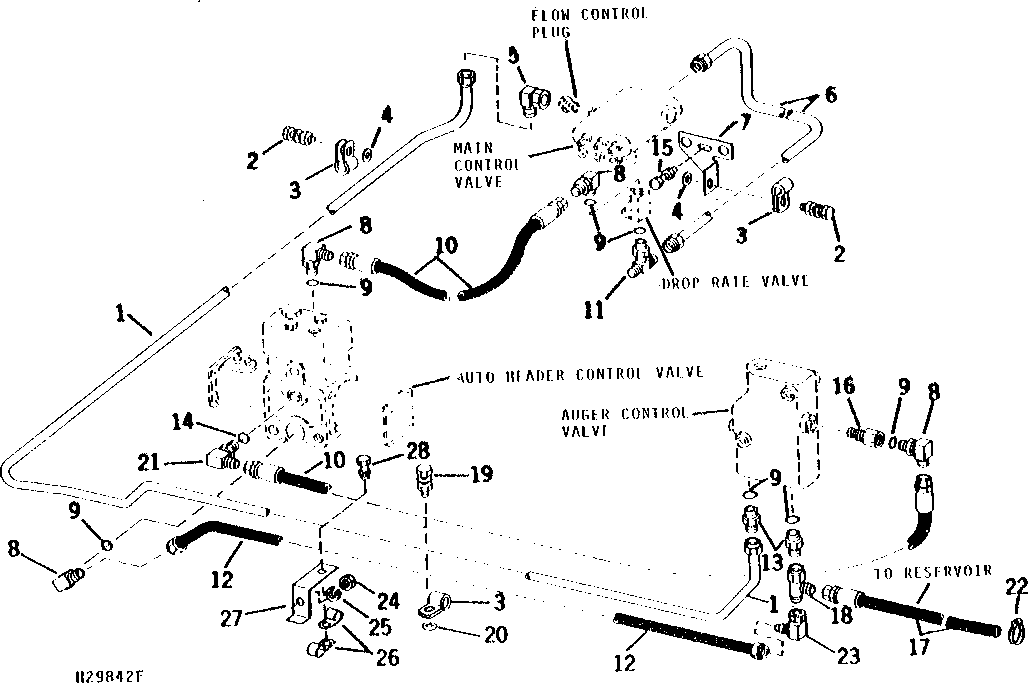

HYDRAULIC LINES AND HOSES (AUTOMATIC HEADER HEIGHT CONTROL AND AUGER SWING LATCH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH89605	1	Line	PRESSURE, SWING VALVE
2	19H1900	1	Cap Screw	5/16" X 3/4"
2	14H785	1	Nut	5/16"
2	12H303	1	Lock Washer	5/16"
3	H75541	3	Clamp	-
4	24H1243	2	WASHER	11/32" X 5/8" X 1/16"
5	AH75164	1	Elbow Fitting	90°
6	AH89604	1	Line	UPPER PLATORM
7	H88393	1	Bracket	-
8	AR26763	4	ELBOW FITTING	90°
9	R26375	5	O-Ring	-
10	AH89607	2	Hydraulic Hose	813 MM (32") LONG
11	AH80245	1	TEE FITTING	(AUTOMATIC HEADER HEIGHT CONTROL)
12	AH89606	1	Line	(SUB AH89613 AND AH75164)
12	AH89613	1	Hydraulic Hose	RETURN, SOLENOID VALVE
13	R39249	2	Adapter Fitting	(AUTOMATIC HEADER HEIGHT CONTROL)
13	R27237	2	Fitting	-
14	R26448	3	O-Ring	-
14	R26375	2	O-Ring	-
15	14H786	1	Nut	1/4"
15	12H302	1	Lock Washer	1/4"
15	19H2036	1	Cap Screw	1/4" X 7/8"
16	AH89356	1	Pipe Plug	-
17	AH89603	1	Hose	660 MM (26") LONG
18	AN33434	1	Tee Fitting	-
18	AR27699	1	Elbow Fitting	90°
19	19H1919	1	Cap Screw	1/4" X 5/8"
19	12H302	1	Lock Washer	1/4"
19	14H786	1	Nut	1/4"
20	24H1287	1	Washer	9/32" X 5/8" X 0.065"
21	AR37017	1	Elbow Fitting	90°
22	AR21836	1	Clamp	-
23	AH75164	1	Elbow Fitting	(AUGER SWING LATCH)
24	14H785	1	Nut	5/16"
25	12H303	1	Lock Washer	5/16"
26	AH78237	2	Clamp	INSULATED
27	H98099	1	Bracket	-
28	19H1905	1	Cap Screw	5/16" X 1"
28	12H303	1	Lock Washer	5/16"
28	14H785	1	Nut	5/16"
