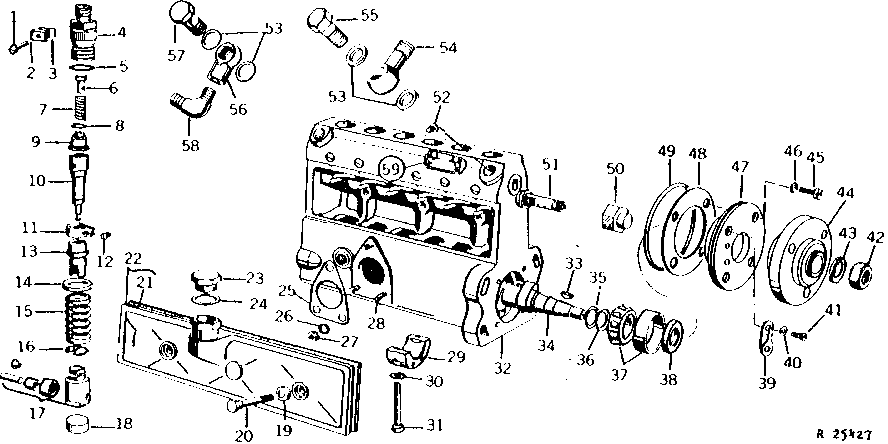

FUEL INJECTION PUMP HOUSING, DRIVE AND DELIVERY VALVE - CONTINUED

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
36	R55156	1	SHIM	0.16 MM (.0063"), (GOVERNOR END)
36	R54864	1	SHIM	0.10 MM (.0039"), (DRIVE END)
36	R55158	1	Shim	0.30 MM (.0118"), (GOVERNOR END)
36	R55160	1	WASHER	1.00 MM (.0390"), (GOVERNOR END)
36	R55159	1	Shim	0.50 MM (.0197"), (GOVERNOR END)
36	R55157	1	SHIM	0.18 MM (.0071"), (GOVERNOR END)
36	R55155	1	SHIM	0.14 MM (.0055"), (GOVERNOR END)
36	R55154	1	SHIM	0.12 MM (.0047"), (GOVERNOR END)
36	R55153	1	SHIM	0.10 MM (.0039"), (GOVERNOR END)
36	R54869	1	SHIM	0.50 MM (.0197"), (DRIVE END)
36	R54870	1	SHIM	0.30 MM (.0118"), (DRIVE END)
36	R54868	1	SHIM	0.18 MM (.0071"), (DRIVE END)
36	R54867	1	SHIM	0.16 MM (.0063"), (DRIVE END)
36	R54866	1	SHIM	0.14 MM (.0055"), (DRIVE END)
36	R54865	1	SHIM	0.12 MM (.0047"), (DRIVE END)
37	AR63555	1	TAPERED ROLLER BEARING	(DRIVE END)
37	AR63941	1	TAPERED ROLLER BEARING	(GOVERNOR END)
38	-	1	Part 18	(AR63556 NO LONGER REQUIRED)
39	R54882	1	POINTER	-
40	R54884	2	Washer	-
41	R54883	2	Screw	-
42	R53886	1	NUT	-
43	R53887	1	LOCK WASHER	-
44	R54885	1	HUB	-
45	R60908	2	SCREW	-
46	R54874	2	LOCK WASHER	-
47	R54872	1	BEARING HOUSING W/O BEARING	-
48	R60909	1	GASKET	-
49	R54873	1	O-Ring	-
50	AR69158	1	CAP	-
51	R54860	1	RACK	-
52	R54861	1	Screw	-
53	51M4237	4	Sealing Ring	(SUB FOR R53901)
54	R58608	1	FUEL SUPPLY BANJO FITTING	-
55	R53903	1	HOLLOW SCREW	-
56	R53902	1	FUEL SUPPLY BANJO FITTING	-
57	R53903	1	HOLLOW SCREW	-
58	R57641	1	ELBOW FITTING	-
59	T31508	1	SERIAL NUMBER PLATE	-

FUEL INJECTION PUMP HOUSING, DRIVE AND DELIVERY VALVE - CONTINUED
