Fenders, Extra Heavy-Duty Final Drive ( - 261750)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H81750	1	Channel	L.H.
2	H81768	1	Brace	L.H.
3	14H812	1	NUT	3/8", (17 USED, "IN POSITION"; 15 USED, "OUT POSITION")
3	19H1731	1	Cap Screw	3/8" X 1", (17 USED, "IN POSITION"; 15 USED, "OUT POSITION")
4	19H2128	2	CAP SCREW	3/8" X 3"
4	14H812	2	NUT	3/8"
5	19H1792	8	Cap Screw	1/2" X 1"
5	12H301	8	Lock Washer	1/2"
5	14H1040	1	Nut	1/2", (6 USED, EXTRA HEAVY DUTY FINAL DRIVE; 2 USED, REGULAR AND HEAVY DUTY FINAL DRIVE)
6	AH80319	1	Support	L.H. "IN POSITION" OR R.H. "OUT POSITION" (REGULAR AND HEAVY DUTY FINAL DRIVE)
6	AH80317	1	Support	(REGULAR AND HEAVY DUTY FINAL DRIVE) L.H. "OUT POSITION" OR R.H. "IN POSITION"
7	19H1945	6	Cap Screw	1/2" X 3-1/4", (REGULAR AND HEVY DUTY FINAL DRIVE)
8	19H1974	1	Cap Screw	1/2" X 2-3/4", (12 USED, EXTRA HEAVY DUTY FINAL DRIVE; 4 USED, REGULAR AND HEAVY DUTY FINAL DRIVE)
9	AH80312	2	Angle	LOWER (EXTRA HEAVY DUTY FINAL DRIVE)
9	AH80314	2	Angle	(REGULAR DUTY AND HEAVY DUTY FINAL DRIVE) (SUB AH91712)
9	AH91712	2	Angle	LOWER (REGULAR DUTY AND HEAVY DUTY FINAL DRIVE)
10	Y1582C	1	Bushing	(4 USED, REGULAR AND HEAVY DUTY FINAL DRIVE; 12 USED, EXTRA HEAVY DUTY FINAL DRIVE)
11	AH80318	2	Support	(EXTRA HEAVY DUTY FINAL DRIVE)
12	AH80320	2	Fender	-
13	H76139	6	Screw	SELF-TAPPING
14	H81753	1	Shield	INNER, R.H.
15	24H1305	8	Washer	13/32" X 13/16" X 0.065"
16	H81754	1	Shield	OUTER, R.H.
17	19H1905	7	Cap Screw	5/16" X 1"
18	H81753	1	Shield	(SUB H84618, THIS APPLICATION)
18	H84618	1	Shield	(SUB H96976)
18	H96976	1	Shield	INNER, L.H.
19	H81754	1	Shield	(SUB H84619, THIS APPLICATION)
19	H96977	1	Shield	OUTER, L.H.
19	H84619	1	Shield	(SUB H96977)
20	H81769	1	Brace	R.H.
21	H81763	2	Brace	-
22	19H1815	1	Cap Screw	1/2" X 1-1/4"
22	19H1721	1	CAP SCREW	1/2" X 1-1/2"
22	12H301	1	Lock Washer	1/2"
22	14H1040	1	Nut	1/2", (L.H. ONLY)

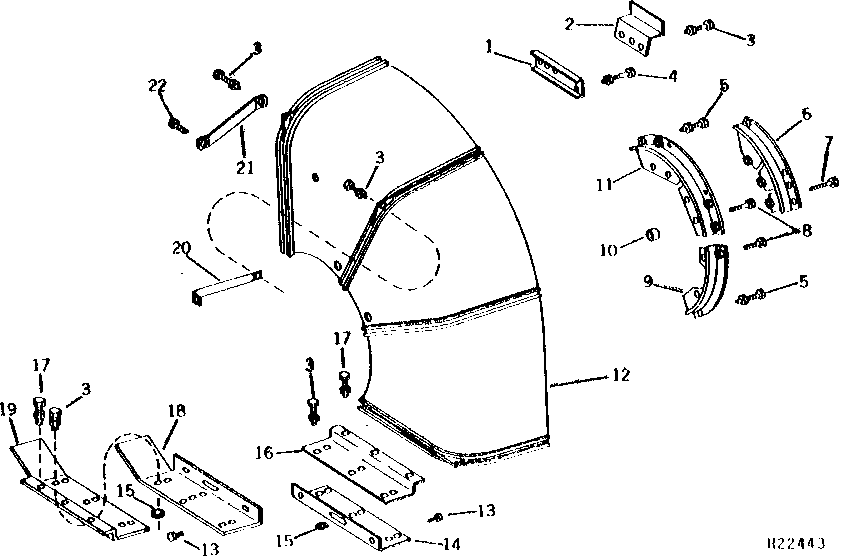

Fenders, Extra Heavy-Duty Final Drive ( - 261750)
