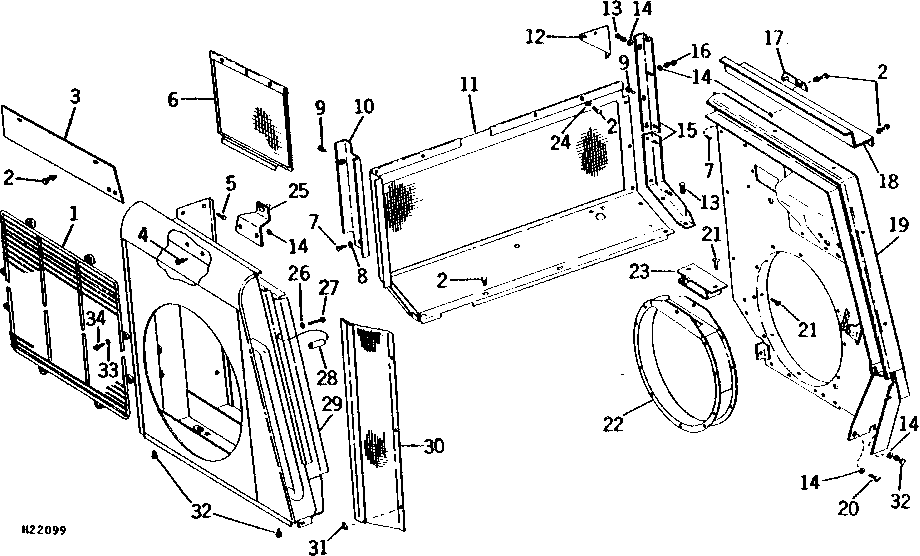

FAN SHROUD, ENGINE COMPARTMENT REAR SHEET, AND INSTRUMENT WALL (8001 - 111900)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH85470	1	Grille	(362GH-01 AND 404TH-01)
1	AH79228	1	Grille	(404DH-04)
2	14H785	8	Nut	5/16"
2	19H1900	8	Cap Screw	5/16" X 3/4"
3	H84818	1	Plate	-
4	19H2127	2	Cap Screw	5/16" X 7/8"
4	14H785	2	Nut	5/16"
5	19H2020	2	Cap Screw	5/16" X 1/2"
6	AH85308	1	Screen	(BELT DRIVE)
7	H76139	2	Screw	SELF-TAPPING
8	24H1224	1	Washer	11/32" X 1" X 1/16"
9	H65108	14	Screw	SELF-TAPPING
10	H84829	1	Bracket	R.H.
11	AH85317	1	Sheet	REAR
12	H84827	1	Gusset	-
13	19H1905	6	Cap Screw	5/16" X 1"
14	24H1136	14	Washer	11/32" X 11/16" X 0.065"
15	H84582	1	Angle	-
16	19H2127	1	Cap Screw	5/16" X 7/8"
16	14H785	1	Nut	5/16"
17	AH85293	1	Bracket	L.H.
18	H84793	1	Channel	-
19	AH85314	1	Partition	-
20	21H1304	1	Screw	5/16" X 3/4"
20	14H785	1	Nut	5/16"
21	H76478	12	Screw	SELF-TAPPING
22	AH76579	1	Ring	-
23	AH76580	1	Cover	(362GH-01 AND 404DH-04)
23	AH85320	1	Cover	(404TH-01)
24	24H1224	5	Washer	11/32" X 1" X 1/16"
25	AH85292	1	Bracket	R.H.
26	24H1305	1	Washer	13/32" X 13/16" X 0.065"
27	19H2104	1	Cap Screw	3/8" X 5"
28	28H1673	1	Bushing	0.493" X 0.675" X 4-3/16"
29	AH85297	1	Shroud	-
30	AH85075	1	Shield	L.H., FRONT
31	14H952	3	Wing Nut	1/4"
32	19H1900	5	Cap Screw	5/16" X 3/4"
32	14H785	5	Nut	5/16"
33	24H1646	6	Washer	17/64" X 3/4" X 0.060"
34	N10542	6	Screw	-
