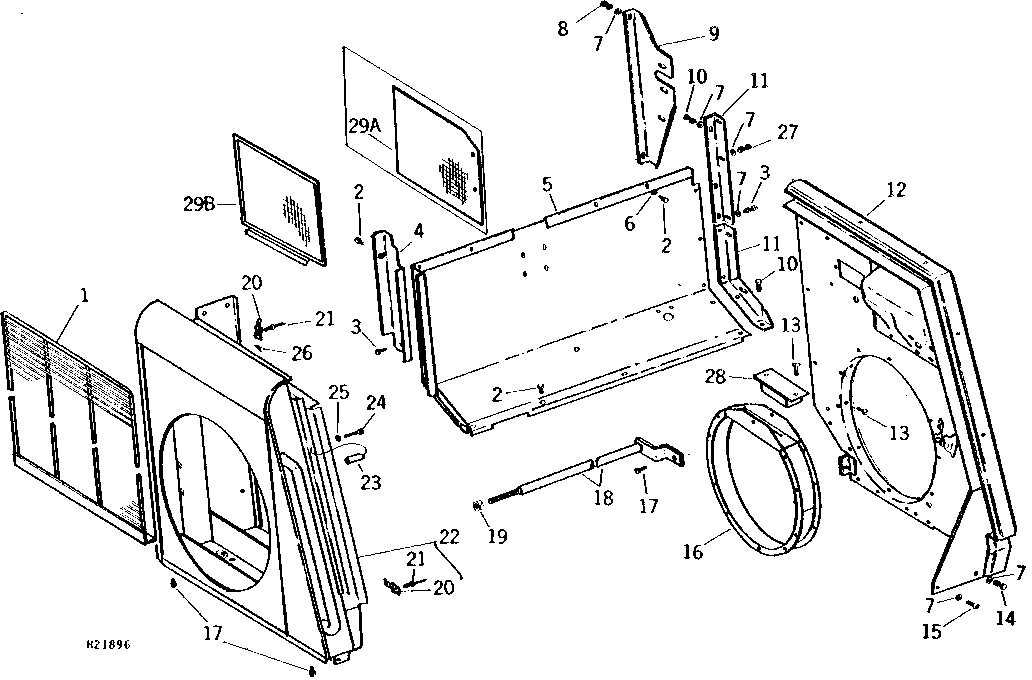

Fan Shroud, Engine Compartment Rear Sheet and Instrument Wall ( - 8000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH79228	1	Grille	-
2	H65108	10	Screw	SELF-TAPPING
2	H65108	14	Screw	SELF-TAPPING
3	19H1900	3	Cap Screw	5/16" X 3/4"
3	14H785	3	Nut	5/16"
4	H79390	1	Bracket	R.H.
5	AH77253	1	Sheet	(SUB AH83813)
5	AH83813	1	Sheet	(SUB AH85317)
6	24H1224	5	Washer	11/32" X 1" X 1/16"
7	24H1136	12	Washer	11/32" X 11/16" X 0.065"
8	19H1900	5	Cap Screw	5/16" X 3/4"
8	14H785	5	Nut	5/16"
9	H80161	1	Bracket	L.H.
10	19H1905	6	Cap Screw	5/16" X 1"
11	H78067	1	Angle	(SUB H84582 AND (4) H65108)
11	H84582	1	Angle	-
12	AH76578	1	Partition	-
12	AH81748	1	Partition	-
13	H76478	2	Screw	SELF-TAPPING
14	19H1900	1	Cap Screw	5/16" X 3/4"
14	14H785	1	Nut	5/16"
15	21H1304	1	Screw	5/16" X 3/4"
15	14H785	1	Nut	5/16"
16	AH76579	1	Ring	-
17	19H1900	4	Cap Screw	5/16" X 3/4"
18	AH79065	1	Brace	-
19	14H1040	2	Nut	1/2"
19	12H301	2	Lock Washer	1/2"
20	AP23835	2	Latch	(BELT DRIVE)
20	AP23835	1	Latch	(HYDROSTATIC DRIVE)
21	H62547	2	Rivet	(BELT DRIVE)
21	H62547	1	Rivet	(HYDROSTATIC DRIVE)
22	AH84153	1	Shroud	-
22	AH83912	1	Support	(SUB AH84153)
22	AH81745	1	Shroud	(SUB AH84153)
22	AH79231	1	Shroud	-
23	28H1673	1	Bushing	0.493" X 0.675" X 4-3/16"
24	19H2104	1	Cap Screw	3/8" X 5"
25	24H1305	1	Washer	13/32" X 13/16" X 0.065"
26	19H2020	2	Cap Screw	5/16" X 1/2"
27	19H2127	1	Cap Screw	5/16" X 7/8"
27	14H785	1	Nut	5/16"
28	AH76580	1	Cover	-
29A	H80833	1	Screen	(BELT DRIVE) (CORN)
29A	H80834	1	Screen	(HYDROSTATIC DRIVE) (CORN)
29B	AH83916	1	Screen	(BELT DRIVE) (CORN)
29B	AH83917	1	Screen	(HYDROSTATIC DRIVE) (CORN)

Fan Shroud, Engine Compartment Rear Sheet and Instrument Wall ( - 8000)
