ENGINE COMPARTMENT REAR SHEET AND INSTRUMENT WALL (111901 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H303	2	Lock Washer	5/16"
1	19H1900	2	Cap Screw	5/16" X 3/4"
1	14H785	2	Nut	5/16"
2	H86308	1	Sheet	(SUB AH89056)
2	AH89056	1	Sheet	-
3	24H1224	3	Washer	11/32" X 1" X 1/16"
4	H76139	4	Screw	SELF-TAPPING
5	H84582	1	Angle	-
6	24H1136	6	Washer	11/32" X 11/16" X 0.065"
7	19H2915	3	CAP SCREW	5/16" X 1-1/4"
7	12H303	3	Lock Washer	5/16"
7	14H785	3	Nut	5/16"
8	H86115	1	Cover	(WITHOUT AIR CONDITIONING)
9	37H120	4	Screw	0.164" X 1/2", (WITHOUT AIR CONDITIONING)
10	H83060	1	Grommet	(WITHOUT AIR CONDITIONING)
11	14H785	1	Nut	5/16"
11	12H303	1	Lock Washer	5/16"
11	19H2127	1	Cap Screw	5/16" X 7/8"
12	AH87569	1	Partition	-
13	H76478	12	Screw	SELF-TAPPING
14	H65108	4	Screw	SELF-TAPPING
15	19H1813	2	CAP SCREW	5/16" X 5/8"
15	12H303	2	Lock Washer	5/16"
15	14H785	2	Nut	5/16"
16	19H1905	1	Cap Screw	5/16" X 1"
16	12H303	1	Lock Washer	5/16"
16	14H785	1	Nut	5/16"
17	AH85320	1	Cover	-
18	AH76579	1	Ring	-
19	H86310	1	Strap	-
20	-	1	Part 31	19MM X 35 MM 76 MM (3/4" X 1-3/4" X 3"), (CUT FROM H92017)
21	H76139	1	Screw	SELF-TAPPING
22	H99528	1	Retainer	-

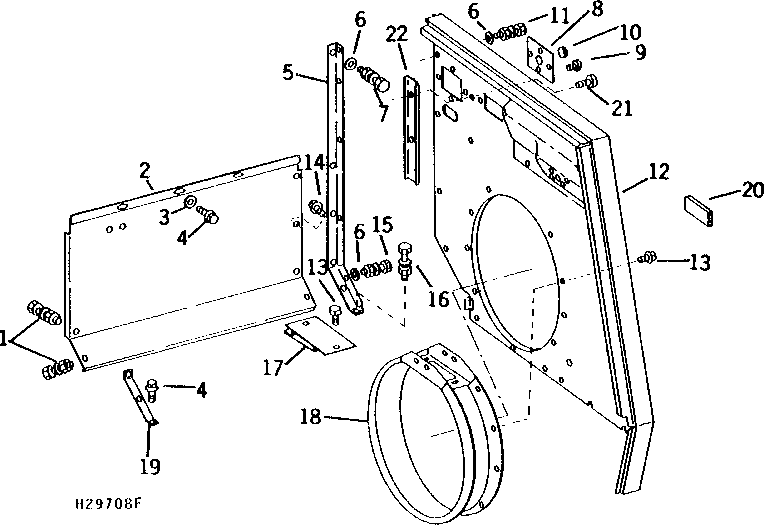

ENGINE COMPARTMENT REAR SHEET AND INSTRUMENT WALL (111901 - )
