Открытый узел

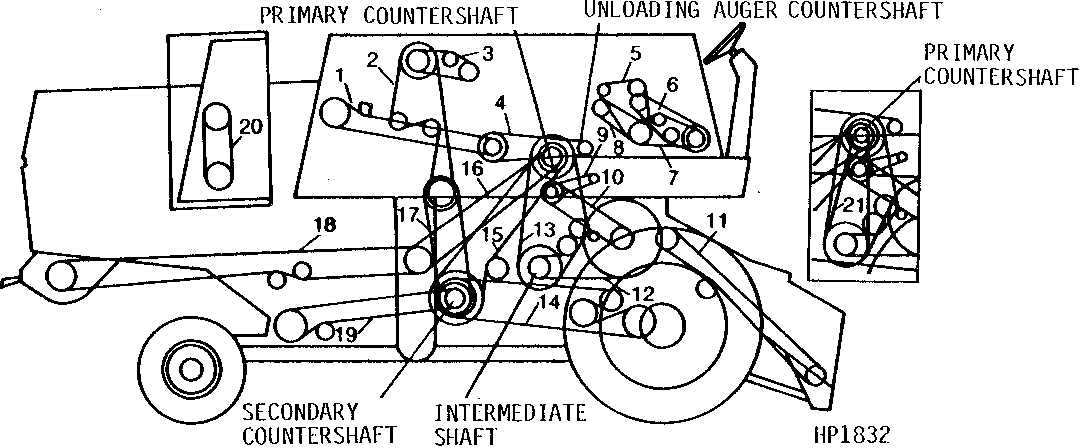

DRIVE BELTS AND CHAINS ON RIGHT-HAND SIDE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	DRIVE, ROLLER, TYPE 2040, 25 MM (1") DOUBLE PITCH, 114 LINKS (AUXILIARY UNLOADING AUGERS) (ASSEMBLED FROM AP19997, (2) AP19999, (2) AP19994 AND (2) SW2040COUS)
2	H23950	1	V-Belt	(CLEAN GAIN ELEVATOR) (U-JOINT LOADING AUGER)
3	-	1	Part 3	DRIVE, ROLLER, TYPE 2040, 25 MM (1") DOUBLE PITCH, 36 LINKS (LOADING AUGER) (ASSEMBLED FROM SW2040OLUS, AP19997 AND AP19998)
3	-	1	Part 4	DRIVE, ROLLER, TYPE 50, 16 MM (5/8") PITCH (LOADING AUGER) (ASSEMBLED FROM AP6094H, (3) AP6095H, SW50RLUS, SW50COUS AND SW50OLUS)
4	-	1	Part 5	DRIVE, ROLLER, TYPE 50, 16 MM (5/8") PITCH, 122 LINKS (UNLOADING AUGER) (ASSEMBLED FROM (2) AP6093H, (2) AP6095H, SW50RLUS AND SW50COUS)
5	AR41628	1	BELT SET	(ALTERNATOR AND WATER PUMP) (MATCHED SET) (GASOLINE)
5	H80896	1	V-Belt	(ALTERNATOR AND WATER PUMP) (GASOLINE)
5	AR41629	1	V-BELT	(ALTERNATOR AND WATER PUMP) (MATCHED SET) (DIESEL)
5	H82724	1	V-Belt	(ALTERNATOR AND WATER PUMP) (DIESEL)
5	R52507	1	V-BELT	(ALTERNATOR AND WATER PUMP) (404DH-04)
5	R52603	1	V-Belt	(ALTERNATOR AND WATER PUMP) (404TH-01) (SUB R70871)
5	R70871	1	V-BELT	(ALTERNATOR AND WATER PUMP) (404TH-01)
5	H79236	1	V-BELT	(ALTERNATOR AND WATER PUMP) (404TH-01)
6	H79237	1	V-Belt	(ENGINE FAN) (404DH-01)
6	H84740	1	V-Belt	(ENGINE FAN) (404DH-04, 404TH-01)
6	H79237	1	V-Belt	(ENGINE FAN) (GASOLINE)
7	H79235	1	V-BELT	(ENGINE FAN COUNTERSHAFT) (GASOLINE)
7	H79235	1	V-BELT	(ENGINE FAN COUNTERSHAFT) (404DH-01)
7	H85377	1	V-Belt	(ENGINE FAN COUNTERSHAFT) (404DH-04)
7	H84745	1	V-Belt	(ENGINE FAN COUNTERSHAFT) (404TH-01)
8	H80897	1	V-Belt	(COMPRESSOR) (GASOLINE)
8	H80897	1	V-Belt	(COMPRESSOR) (404DH-01)
8	H81742	1	V-Belt	(COMPRESSOR) (404DH-04)
8	H87459	1	V-Belt	(COMPRESSOR) (404DH-04)
8	H80896	1	V-Belt	(COMPRESSOR) (404TH-01)
8	R46098	1	V-Belt	(COMPRESSOR) (404TH-01)
8	R69562	1	V-Belt	(COMPRESSOR) (404TH-01)
9	H80893	1	V-Belt	(SUB H83077)
9	H83077	1	O-Ring	(CYLINDER TACHOMETER)

DRIVE BELTS AND CHAINS ON RIGHT-HAND SIDE
