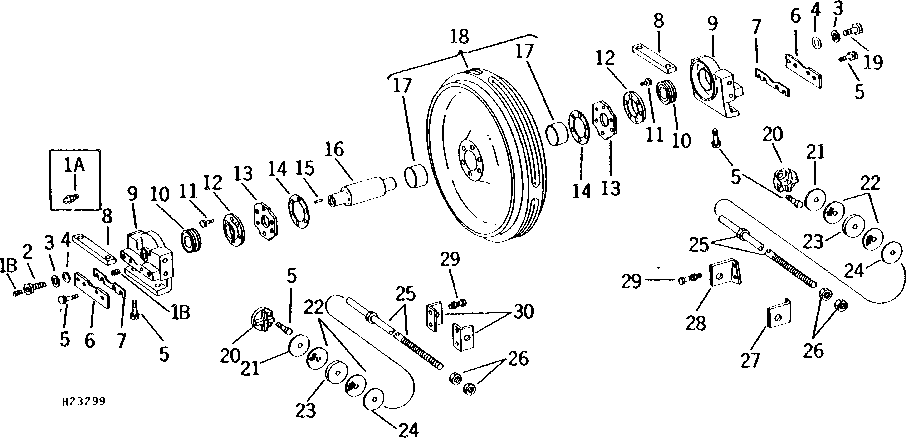

CRAWLER TIGHTENER, SHAFTS, AND BEARINGS (LEFT-HAND ILLUSTRATED)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	T16845	1	Bolt	-
3	M3301T	2	Washer	-
3	T21397	2	Washer	(SUB M3301T)
4	T16752	2	O-RING	-
5	12H301	16	Lock Washer	1/2"
5	19H1815	16	Cap Screw	1/2" X 1-1/4"
6	T20695	2	Guide	-
7	T20697	1	SHIM	-
8	T20696	2	Strap	-
9	T21396	2	Bracket	-
9	T32053	2	Bracket	(SUB T38807 AND 15H558)
9	T38807	2	BRACKET	-
10	AT31122	2	Seal	-
10	T21361	2	Seal	-
11	19H1900	12	Cap Screw	5/16" X 3/4"
11	19H2923	12	Screw	3/8" X 1"
12	T33367	2	RING	-
13	T21395	2	Plate	-
13	T33366	2	Plate	-
14	T21394	2	Shim	(SUB T38969)
14	T38969	2	GASKET	-
15	34H260	1	SPRING PIN	5/32" X 5/8"
15	T13381	1	DOWEL PIN	-
16	T21393	1	Shaft	-
16	T40826	1	SHAFT	-
17	T23880	2	BUSHING	-
18	AT18925	1	Idler	-
18	AT32571	1	Idler	-
19	19H2677	1	Cap Screw	3/4" X 1-3/4"
20	H78602	2	Bracket	-
21	H95003	4	Washer	-
21	H78598	4	Washer	-
22	H78600	32	Shim	-
22	H95005	1	Washer	PERFORATED (4 ROLLER-32 USED; 5 ROLLER-40 USED)
23	H78601	16	Isolator	-
23	H95002	1	Bushing	RUBBER (4 ROLLER-16 USED; 5 ROLLER-20 USED)
24	H78599	14	Washer	-
24	H98018	1	Washer	(4 ROLLER-14 USED; 5 ROLLER-18 USED)
25	AH80630	2	Rod	(4 ROLLER)
25	AH76876	2	Rod	(5 ROLLER)
25	AH93911	2	Rod	(5 ROLLER)
26	14H794	4	Nut	3/4"
27	H82080	1	Bracket	R.H.(4 ROLLER)
27	H78608	1	Bracket	R.H. (5 ROLLER)
28	H82081	1	Bracket	L.H. (4 ROLLER)
28	H78607	1	Bracket	L.H. (5 ROLLER)
29	19H1731	8	Cap Screw	3/8" X 1"
29	14H812	8	NUT	3/8"
30	H78619	2	Bracket	-
99	JD7830	1	Grease Gun	-
1A	JD7828	1	FITTING	1/8"
1B	15H558	2	Pipe Plug	1/8"

CRAWLER TIGHTENER, SHAFTS, AND BEARINGS (LEFT-HAND ILLUSTRATED)
