CRAWLER DRIVE SHIELD, SPROCKET, AND BEARINGS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H236	4	Lock Washer	3/4"
1	19H1782	4	Cap Screw	3/4" X 2-1/4"
1	14H794	4	Nut	3/4"
2	H75423	2	Pin Fastener	-
3	H78610	1	Spacer	L.H. (EXTRA HVY-DUTY FINAL DRIVE;11-104 RATIO)
3	H78609	1	Spacer	R.H. (EXTRA HVY-DUTY FINAL DRIVE; 11-104 RATIO)
4	H78611	1	Support	(SUB H98060, 12H294, 12H301, 14H1040, 19H1974 AND 19H3170)
4	H98060	1	Support	(SUB AH125236) INNER
5	JD7759	3	Lubrication Fitting	1/8", STRAIGHT
6	19H1781	2	CAP SCREW	1/2" X 3-1/2"
6	19H3170	2	Cap Screw	5/8" X 4-1/2"
6	12H301	2	Lock Washer	1/2"
6	12H294	2	Lock Washer	5/8"
7	AH80854	1	Shield	L.H.
7	AH80855	1	Shield	R.H.
8	19H1732	2	Cap Screw	3/8" X 1-1/4"
8	14H812	2	NUT	3/8"
9	19H1707	2	CAP SCREW	3/4" X 2-3/4"
10	H78426	1	Bushing	-
11	H82390	1	Strap	UPPER
12	H82389	1	Strap	LOWER
13	24H1392	1	Washer	25/32" X 1-3/8" X 0.120"
14	19H1930	7	Cap Screw	1/2" X 2-1/2"
14	19H1974	3	Cap Screw	1/2" X 2-3/4"
14	12H301	7	Lock Washer	1/2"
14	14H1040	7	Nut	1/2"
15	24H1111	1	Washer	17/32" X 1-1/16" X 0.090"
16	H83258	1	Hub	(SUB AH103709)
16	AH103709	1	Hub	-
17	19H2617	8	Cap Screw	3/4" X 3-3/4"
17	12H236	8	Lock Washer	3/4"
18	11H244	1	Cotter Pin	3/16" X 2-1/2"
19	AH21870	1	SEAL	-
20	19H1974	2	Cap Screw	1/2" X 2-3/4"
21	19H1930	8	Cap Screw	1/2" X 2-1/2"
21	14H1040	8	Nut	1/2"
21	12H301	8	Lock Washer	1/2"
22	H11630	1	HOUSING	-
23	JD8984	2	Bearing Cone	-
24	JD8274	1	BEARING CUP	-
25	24H1228	1	Washer	1-17/32" X 2-1/2" X 0.120"
26	H21871	1	NUT	-
27	H36564	1	GASKET	-
28	19H1905	4	Cap Screw	5/16" X 1"
29	H11631	1	QUILL	-
30	P39082	14	Bushing	14 MM X 22 MM X 25 MM (35/64" X 7/8" X 1"), (SUB P41311, THIS APPLICATION)
30	P41311	14	Bushing	14 MM X 25 MM X 14 MM (17/32" X 1" X 9/16")
31	H36565	4	STRAP	-
31	H36565	7	STRAP	-
32	H78615	1	Support	(SUB H98438, 12H301, 14H1040 AND 19H1974)
32	H98438	1	Support	OUTER
33	H87325	1	Drive Sprocket	29 TEETH, (SUB FOR H78622)
34	14H876	1	Nut	1"
35	H61941	1	Nut	-
36	H78613	1	Stud	(SUB H113957)
36	H113957	1	Stud	-
37	19H1974	6	Cap Screw	1/2" X 2-3/4"
37	12H236	6	Lock Washer	3/4"
38	19H2682	2	Cap Screw	3/4" X 4-3/4"
38	12H236	2	Lock Washer	3/4"
38	14H794	2	Nut	3/4"
39	H94636	1	Shim	-

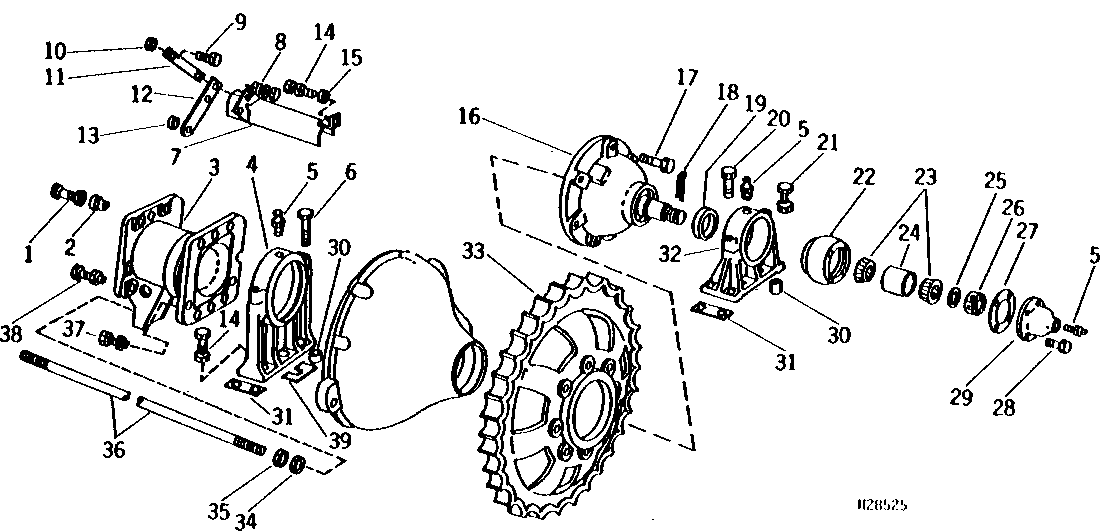

CRAWLER DRIVE SHIELD, SPROCKET, AND BEARINGS
