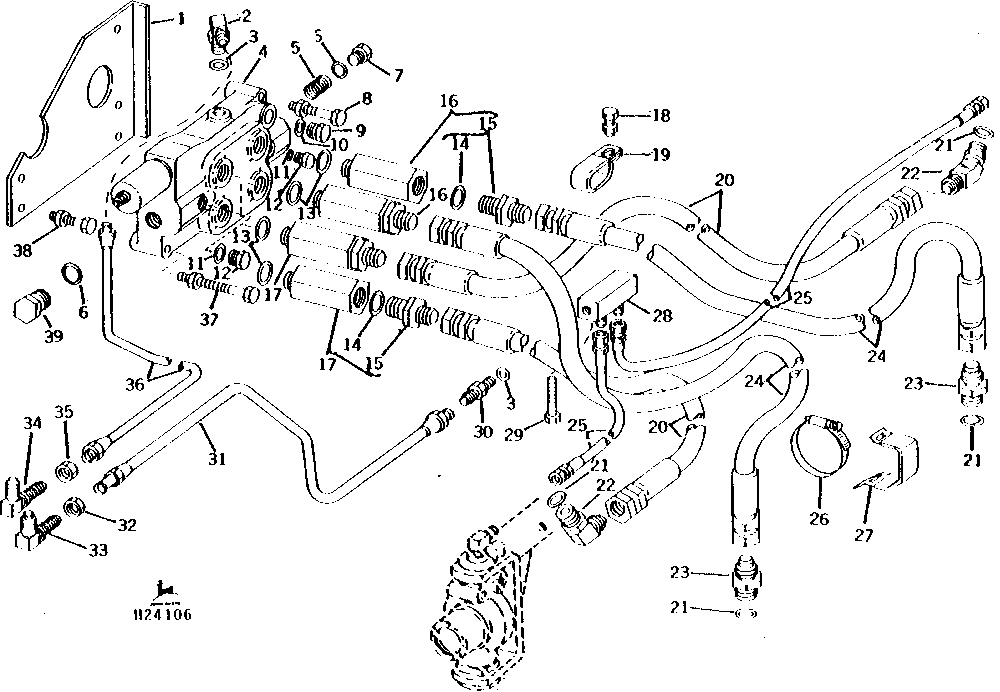

Control Valve, Flow Control Valves, Rear Hydraulic Lines (Power Rear Wheel Drive)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H100201	1	Plate	-
1	H83368	1	Plate	(SUB H100201)
2	AR26725	1	ELBOW FITTING	90°
3	R26448	2	O-Ring	(A)
4	AH83477	1	SOLENOID VALVE	-
5	R45182	1	Compression Spring	-
6	R31674	2	O-Ring	-
7	AH84695	1	Fitting	-
8	19H1733	1	CAP SCREW	3/8" X 2-1/2"
8	14H812	1	NUT	3/8"
9	R27218	1	Fitting Plug	-
10	R26448	1	O-Ring	(A)
11	R28782	2	O-Ring	-
12	AH63282	2	FITTING PLUG	-
13	U12547	4	O-Ring	-
14	H84318	2	O-Ring	-
15	AH84694	2	FITTING	-
16	AH83509	2	Hyd Actuated Control Valve	-
17	AH83510	2	HYD ACTUATED CONTROL VALVE	-
18	19H1900	2	Cap Screw	5/16" X 3/4"
18	14H785	2	Nut	5/16"
19	AH77869	2	Clip	CUSHIONED
20	AH83483	2	Hydraulic Hose	13 MM X 2413 MM (1/2" I.D. X 95") LONG
21	U12547	4	O-Ring	-
22	AR47803	2	ELBOW FITTING	60°
23	R27267	2	Fitting	-
24	AH83484	2	Hydraulic Hose	13 MM X 2540 MM (1/2" I.D. X 100") LONG
25	AH83490	2	HYDRAULIC HOSE	10 MM X 1702 MM (3/8" I.D. X 67") LONG
26	AR21842	4	Clamp	-
27	AH83482	4	Hose Clamp	-
28	AR45234	1	FITTING	-
29	19H1765	1	Cap Screw	3/8" X 1-3/4"
30	R39249	1	Adapter Fitting	-
31	AH83476	1	Line	RETURN
32	14H904	1	Nut	3/4"
33	N111995	1	Elbow Fitting	90°
34	H75413	1	Elbow Fitting	90°
35	14H832	1	Nut	9/16"
36	AH83481	1	Line	RETURN
37	19H2228	2	Cap Screw	3/8" X 4"
37	14H812	2	NUT	3/8"
38	19H1726	2	Cap Screw	3/8" X 2-1/4"
38	14H812	2	NUT	3/8"
39	AU40993	1	Fitting	-
99	AR63929	1	Cylinder	SEAL REPAIR, PIVOT PIN

Control Valve, Flow Control Valves, Rear Hydraulic Lines (Power Rear Wheel Drive)
