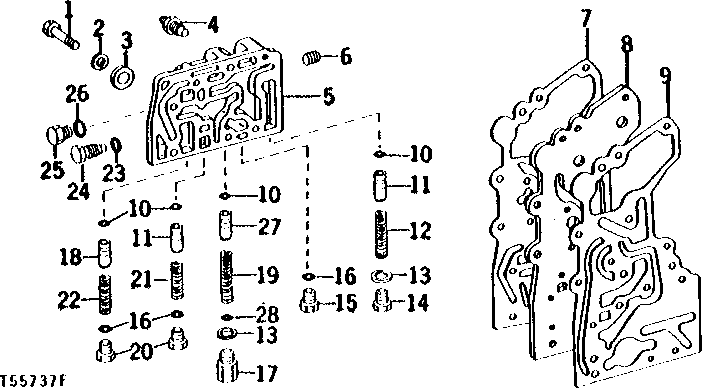

TRANSMISSION CLUTCH REGULATING VALVE HOUSING [01D06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2055	4	CAP SCREW	7/16" X 2-1/4"
1	19H3205	1	Cap Screw	7/16" X 1-1/2"
1	19H3197	1	CAP SCREW	7/16" X 4"
1	19H3465	1	Cap Screw	7/16" X 3"
2	12H293	7	Lock Washer	7/16"
3	24H1325	7	Washer	15/32" X 59/64" X 0.065"
4	AT37368	1	SENDER	TEMPERATURE
5	-	1	Part 8	(A) (SUB AR79401) PRESSURE REGULATING VALVE
6	15H571	1	PIPE PLUG	(A) 3/8", HEX. CTSK.
7	R99381	1	GASKET	(SUB FOR R56826, T67028 AND R92483)
8	R56829	1	PLATE	-
9	R46815	1	GASKET	-
10	R28776	4	O-Ring	(A)
11	R63980	2	Valve	(A) (R AND L-BORE)
12	R56782	1	Compression Spring	(A)
13	R1742R	2	WASHER	(A)
14	R52589	1	FITTING PLUG	(A)
15	R39112	1	Fitting	(A) (C-BORE)
16	R26375	3	O-Ring	(A)
17	R51577	1	FITTING PLUG	(A)
18	R56785	1	Pressure Relief Valve	(A) (F-BORE)
19	T60314	1	Compression Spring	(A) (SUB FOR R56352)
20	R33138	2	Fitting	(A)
21	R39133	1	SPRING	(A) (SUB FOR R56783)
22	R56784	1	SPRING	(A)
23	B2762R	1	O-Ring	(A)
24	R42002	1	DRAIN PLUG	(A)
25	R27094	2	Drain Plug	(A)
26	R26286	2	O-Ring	(A)
27	R63980	1	Valve	(A) (P-BORE)
28	R33521	1	Shim	(A) (SUB FOR R56351, THIS APPLICATION) 0.76 MM (.030")
..	AR79401	1	VALVE	-

TRANSMISSION CLUTCH REGULATING VALVE HOUSING [01D06]
