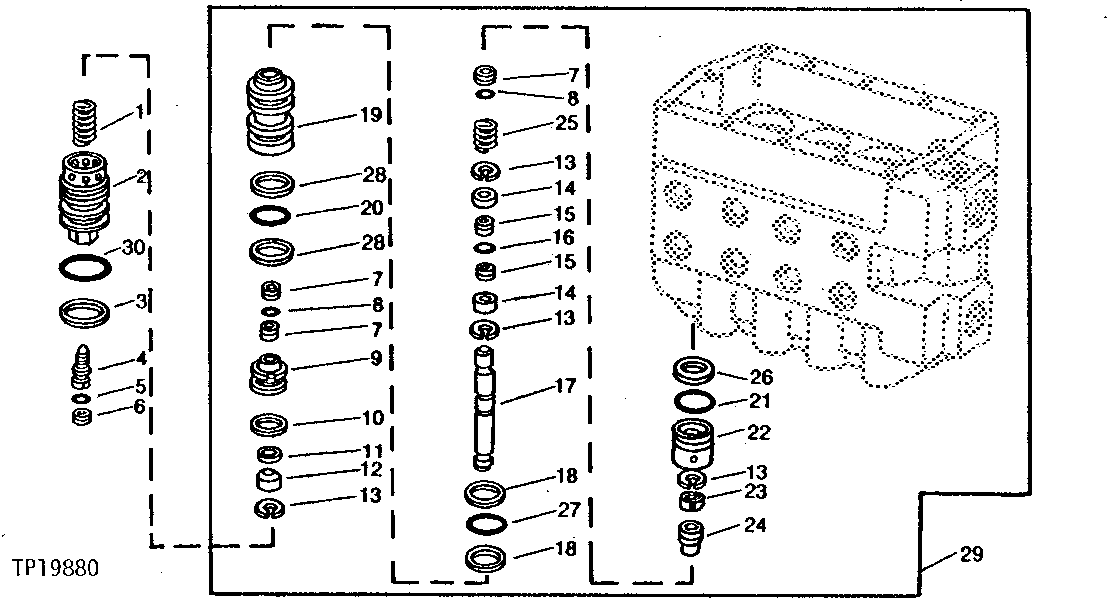

STANDARD POPPET ASSEMBLY (BLADE CONTROL VALVE) [02J15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T42410	8	Spring	-
2	R72873	8	FITTING	(SUB FOR AT41438 AND AR91676)
3	R75790	1	BACK-UP RING	(K) (USED WITH B3690R)
4	T42425	8	SCREW	-
5	T42426	8	O-Ring	(K)
6	T42427	8	BACK-UP RING	(K)
7	R26551	2	BACK-UP RING	(K)
8	R394R	3	O-Ring	(K)
9	T42409	1	POPPET	-
10	T42420	1	RING	-
11	T42422	1	SHIM	(K) .508 MM (.020")
12	T42411	1	RETAINER	-
13	T48322	4	SNAP RING	(K) (SUB T56343)
13	T56343	4	SNAP RING	(K)
14	T42417	2	RETAINER	-
15	-	2	Part 16	(K) ( T42406 NO LONGER AVAILABLE) (SUB RE30357)
16	-	1	Part 17	(K) ( T42407 NO LONGER AVAILABLE) (SUB RE30357)
17	T42408	1	SHAFT	-
18	R81189	2	BACK-UP RING	(K) (SUB FOR U41971, THIS APPLICATION) (USED WITH R61015 AND R81906)
19	T42419	1	SLEEVE	-
20	R61015	1	O-Ring	(K) (SUB FOR T42418 AND T59952, THIS APPLICATION) (SUB FOR R31378, THIS APPLICATION) (ALSO ORDER (2) R78392)
21	R30319	1	O-Ring	(K) (SUB FOR T42414) (ALSO ORDER R81188)
22	R73261	1	SEAT	(SUB FOR T42404, T54462 AND T56309)
23	T59720	1	RING	(SUB FOR T42415)
24	T48597	1	POPPET	-
25	T48598	1	SPRING	-
26	R81188	1	BACK-UP RING	(K) (SUB FOR T60654, THIS APPLICATION) (USED WITH R30319)
27	R81906	1	O-Ring	(K) (SUB FOR T42416, THIS APPLICATION) (SUB FOR T11220, THIS APPLICATION) (ALSO ORDER (2) R81189)
28	R78392	2	BACK-UP RING	(K)
29	AT41437	1	VALVE	-
30	B3690R	8	O-Ring	(K) (SUB FOR T42421, THIS APPLICATION) (ALSO ORDER R75790)

STANDARD POPPET ASSEMBLY (BLADE CONTROL VALVE) [02J15]

Нет текстового описания
