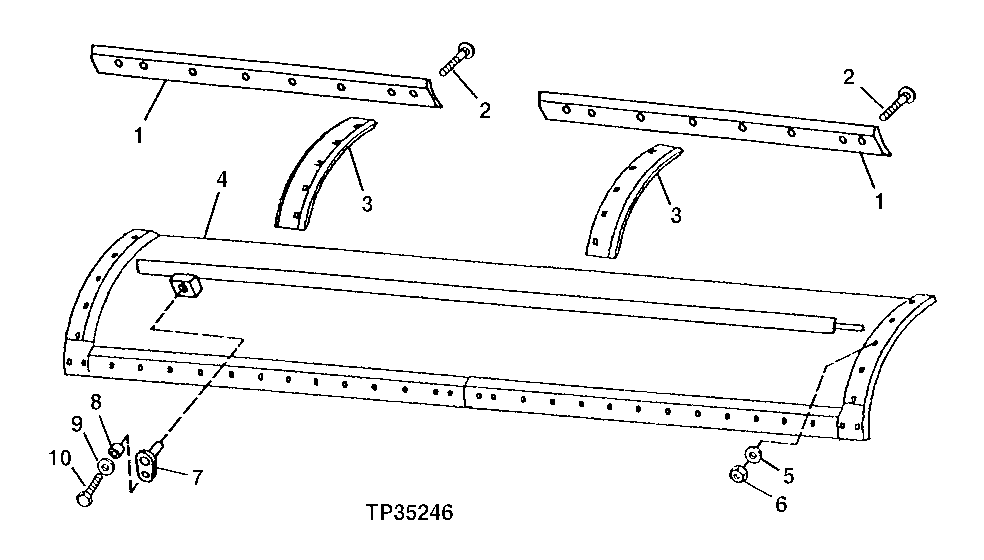

MOLDBOARDS AND CUTTING EDGES ( REPLACEMENT ) (FIVE BOLT END BIT) [02I16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T66702	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 1 829 MM LONG (5/8" X 6" X 6') (USE T66702 AND T66707 FOR 3 963 MM (13') MOLDBOARD; TWO USED FOR 3 648 MM (12') MOLDBOARD) (SUB FOR U42494) (DO NOT USE WITH U42494)
1	T66707	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 2 134 MM LONG (5/8" X 6" X 7') (USE T66707 AND T66702 FOR 3 963 MM (13') MOLDBOARD; TWO USED FOR 4 268 MM (14') MOLDBOARD) (SUB FOR T42277) (DO NOT USE WITH T42277)
1	T66705	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 2 438 MM LONG (5/8" X 6" X 8') (WHEN EQUIPPED WITH MOLDBOARD EXTENSION)
1	T71978	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 1 829 MM LONG (5/8" X 8" X 6') (USE T71978 AND T71979 FOR 3 963 MM (13') MOLDBOARD; 2 USED FOR 3 648 MM (12') MOLDBOARD)
1	T71979	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 2 134 MM LONG (5/8" X 8" X 7') (USE T71979 AND T71978 FOR 3 963 MM (13') MOLDBOARD; TWO USED FOR 4 268 MM (14') MOLDBOARD)
1	T71980	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 2 438 MM LONG (5/8" X 8" X 8') (WHEN EQUIPPED WITH MOLDBOARD EXTENSION)
1	T48840	1	Cutting Edge	SELECTIVE HARDENED SINGLE BEVEL EDGE, 1 829 MM LONG (3/4" X 6" X 6') (USE T48840 AND T48841 FOR 3 963 MM (13') MOLDBOARD; TWO USED FOR 3 648 MM (12') MOLDBOARD)
1	T66703	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 1 829 MM LONG (3/4" X 8" X 6') (USE T66703 AND T66704 FOR 3 963 MM (13') MOLDBOARD; TWO USED WITH 3 648 MM (12') MOLDBOARD)
1	T48841	1	Cutting Edge	SELECTIVE HARDENED SINGLE BEVEL EDGE, 2 134 MM LONG (3/4" X 6" X 7') (USE T48841 AND T48840 FOR 3 963 MM (13') MOLDBOARD)
1	T66704	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 2 134 MM LONG (3/4" X 8" X 7') (USE T66704 AND T66703 FOR 3 963 MM (13') MOLDBOARD; TWO USED FOR 4 268 MM (14') MOLDBOARD)
1	T66706	1	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE, 2 438 MM LONG (3/4" X 8" X 8') (WHEN EQUIPPED WITH MOLDBOARD EXTENSION)

MOLDBOARDS AND CUTTING EDGES ( REPLACEMENT ) (FIVE BOLT END BIT) [02I16]

Нет текстового описания
