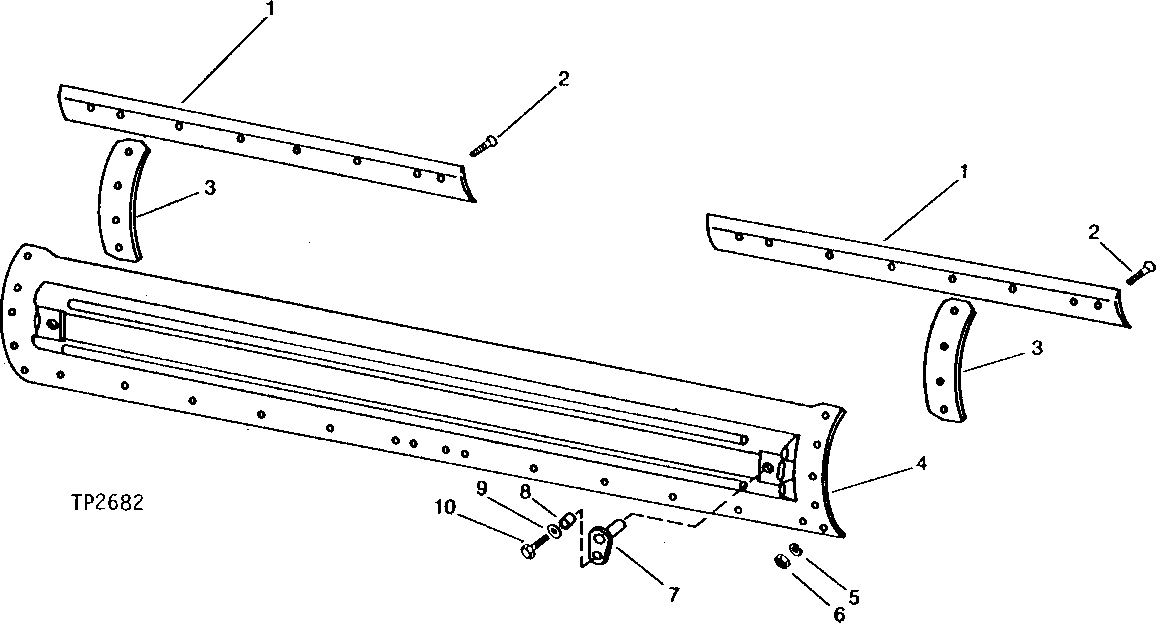

MOLDBOARDS AND CUTTING EDGES (FOUR HOLE END BIT) (CONTINUED) [02I14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	09H1759	1	Bolt	5/8" X 2-1/4", HS, SAE 8 (24 USED WITH 12' MOLDBOARD; 25 USED WITH 13' MOLDBOARD; 26 USED WITH 14' MOLDBOARD) (USE WITH 5/8" CUTTING EDGES)
2	09H1764	1	Bolt	5/8" X 2-1/2", (34 USED WITH 12' MOLDBOARD; 36 USED WITH 13' MOLDBOARD; 38 USED WITH 14' MOLDBOARD) (USE WITH 3/4" CUTTING EDGES)
3	T71955	2	END BIT	(SUB FOR T42272) (RECOMMENDED WITH 5/8" CUTTING EDGE)
3	T71956	2	END BIT	(RECOMMENDED WITH 3/4" CUTTING EDGE)
4	AT107485	1	MOLDBOARD	(SUB FOR AT53147) 7/8" MATERIAL X 3 648 MM (12' (SUB FOR AT41244, 3/4" MATERIAL) (USE IF AVAILABLE) (SUB AT168143)
4	-	1	Part 6	(SUB FOR AT53148) 7/8" MATERIAL X 3 963 MM (13') (SUB FOR AT41246, 3/4" MATERIAL) ( AT107486 NO LONGER AVAILABLE) (SUB AT168144)
4	AT107487	1	MOLDBOARD	(SUB FOR AT53149) 7/8" MATERIAL X 4 268 MM (14') (SUB FOR AT41247, 3/4" MATERIAL) (USE IF AVAILABLE) (SUB AT168145)
5	12H294	1	Lock Washer	5/8", (24 USED WITH 12' MOLDBOARD; 25 USED WITH 13' MOLDBOARD; 26 USED WITH 14' MOLDBOARD) (USE WITH 5/8" CUTTING EDGES)
5	12H294	1	Lock Washer	5/8", (34 USED WITH 12' MOLDBOARD; 36 USED WITH 13' MOLDBOARD; 38 USED WITH 14' MOLDBOARD) (USE WITH 3/4" CUTTING EDGES)
6	14H1039	1	Nut	5/8", (24 USED WITH 12'; 25 USED WITH 13'; 26 USED WITH 14' MOLDBOARD)
6	14H1039	1	Nut	5/8"
7	AT41245	2	Pin	-
8	28H1596	2	WASHER	0.546" X 0.840" X 5/16"
9	24H1211	2	Washer	9/16" X 1-3/8" X 0.105"
10	19H3385	2	Cap Screw	1/2" X 1-1/8"

MOLDBOARDS AND CUTTING EDGES (FOUR HOLE END BIT) (CONTINUED) [02I14]
