Открытый узел

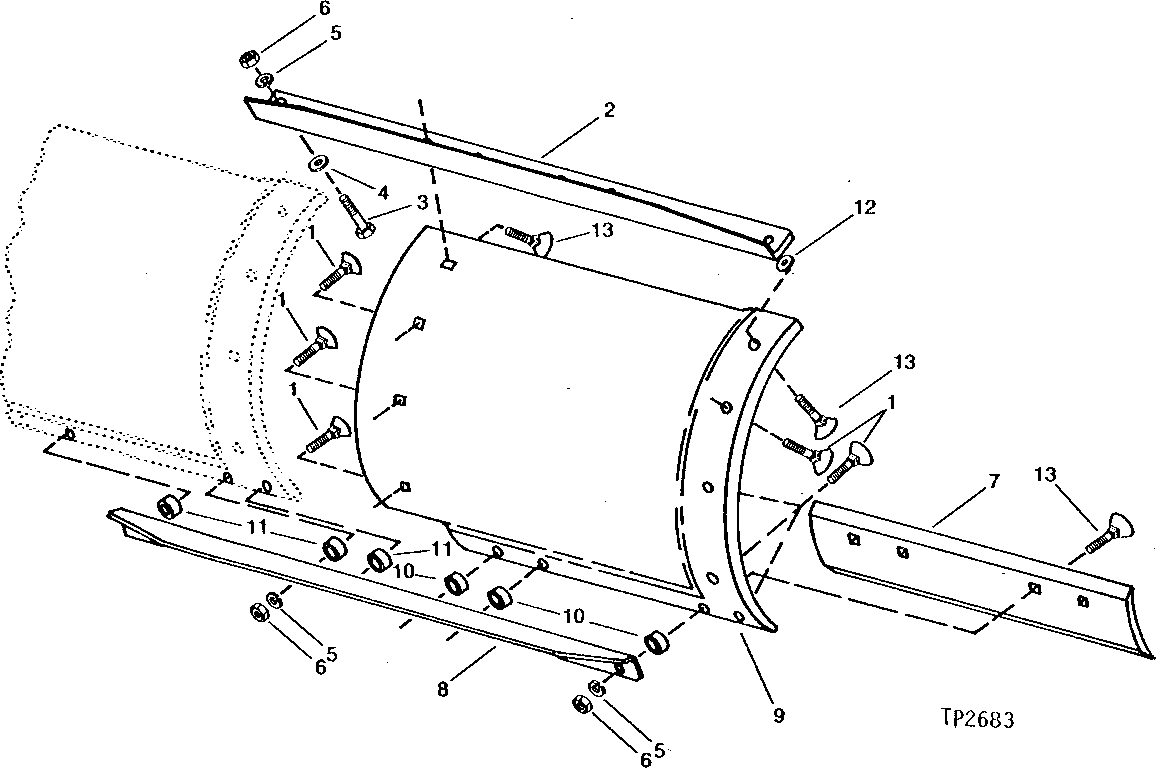

MOLDBOARD EXTENSION (FOUR BOLT END BIT) [02I20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	09H1764	7	Bolt	(A) (B) (C) 5/8" X 2-1/2", HS, SAE 8
2	T43726	1	Support	(A) (B) (C)
3	19H2994	1	Cap Screw	(A) (B) (C) HS, SAE 8, 5/8" X 1-1/2"
4	24H1367	1	Washer	(A) (B) (C) 21/32" X 1-1/4" X 1/4"
5	12H294	16	Lock Washer	(A) (B) (C) 5/8"
6	14H760	16	Nut	(A) (B) (C) 5/8"
7	-	1	Part 7	610 MM LONG (3/4" X 6" X 24") (SELECTIVE HARDENED SINGLE BEVEL EDGE) ( T60908 USE IF AVAILABLE)
7	T66708	1	Dura-Max Cutting Edge	610 MM LONG (3/4" X 8" X 24") (DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE)
7	T66709	1	Dura-Max Cutting Edge	610 MM LONG (3/4" X 6" X 24") (DURA-MAX THROUGH HARDENED DOUBLE BEVEL EDGE)
8	AT47241	1	Reinforcement	(A) (B) (C) LOWER
9	-	1	Part 12	(B) LEFT, 610 MM (24") LONG (USE WITH 3/4" AND 7/8" MOLDBOARD) ( T43724 USE IF AVAILABLE)
9	-	1	Part 11	(A) (C) RIGHT, 610 MM (24") LONG (USE WITH 3/4" AND 7/8" MOLDBOARD) ( T43723 USE IF AVAILABLE)
10	T11116	3	BUSHING	(A) (B) (USE WITH 19 MM (3/4") MOLDBOARD)
10	24H1367	3	Washer	(C) 21/32" X 1-1/4" X 1/4", (USE WITH 22 MM (7/8") MOLDBOARD)
11	A16816	3	Bushing	(A) (B) (USE WITH 19 MM (3/4") MOLDBOARD)
12	24H1378	1	Washer	(A) (B) 11/16" X 1-15/32" X 0.134", (USE WITH 19 MM (3/4") MOLDBOARD)
12	24H1367	1	Washer	(C) 21/32" X 1-1/4" X 1/4", (USE WITH 22 MM (7/8") MOLDBOARD)
13	09H1773	8	BOLT	(A) (B) (C) (SUB FOR 09H1768, THIS APPLICATION) 5/8" X 3-1/4"
..	AT58370	1	EXTENSION	LEFT (FOR 3/4" AND 7/8" MATERIAL MOLDBOARD) (SUB FOR AT55081)
..	AT58369	1	EXTENSION	RIGHT (FOR 3/4" X 7/8" MATERIAL MOLDBOARD) (SUB FOR AT42618)
..	AT58370	1	EXTENSION	LEFT (FOR 3/4" X 7/8" MATERIAL MOLDBOARD) (SUB FOR AT44809)
..	AT58369	1	EXTENSION	(FOR 3/4" X 7/8" MATERIAL MOLDBOARD) (SUB FOR AT55082)

MOLDBOARD EXTENSION (FOUR BOLT END BIT) [02I20]

Нет текстового описания
