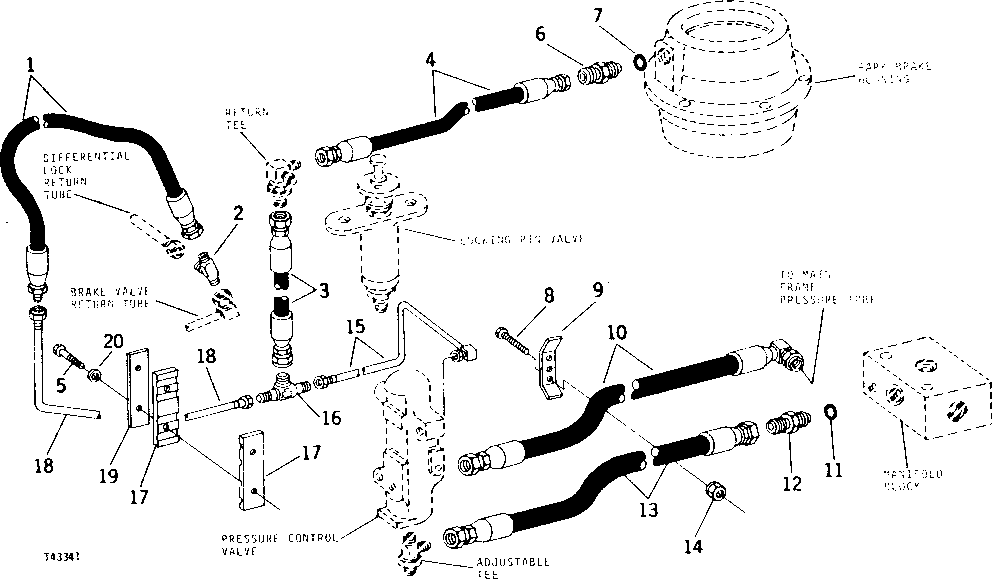

MAIN FRAME HYDRAULICS (LOCKING PIN VALVE, AND PRESSURE CONTROL VALVE) [02I05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	PARKING BRAKE LUBE ( AT42244 NO LONGER AVAILABLE)
2	T20926	1	Tee Fitting	-
3	AT42246	1	HYDRAULIC HOSE - FABRICATE	LOCKING PIN VALVE 146.05 MM LONG (1/2" X 5-3/4")
4	AT42247	1	HYDRAULIC HOSE - FABRICATE	PARKING BRAKE QUILL 1 397 MM LONG (1/2" X 55")
5	19H1726	2	Cap Screw	3/8" X 2-1/4"
6	R27272	1	Fitting	-
7	R26286	1	O-Ring	-
8	19H3520	2	Cap Screw	1/2" X 3-1/4"
9	T47053	1	CLAMP	(SUB FOR T43354)
10	AT42237	1	HYDRAULIC HOSE	OIL LINE PRESSURE 622.3 MM LONG (7/8" X 24-1/2" X 1-5/16")
11	U12547	1	O-Ring	(SUB FOR F3171R)
12	R27267	1	Fitting	-
13	AT42236	1	HYDRAULIC HOSE - FABRICATE	PRESSURE 1 085.85 MM LONG (1-1/16" X 42-3/4" X 7/8")
14	BP12214	2	Lock Nut	(SUB FOR U16721)
15	AT42245	1	TUBE	PRESSURE CONTROL VALVE BLEED
16	T27323	1	TEE FITTING	-
17	T43362	1	CLAMP	-
18	AT42282	1	TUBE	PARKING BRAKE LUBE
19	T43363	1	STRAP	-
20	12H304	2	Lock Washer	3/8"

MAIN FRAME HYDRAULICS (LOCKING PIN VALVE, AND PRESSURE CONTROL VALVE) [02I05]
