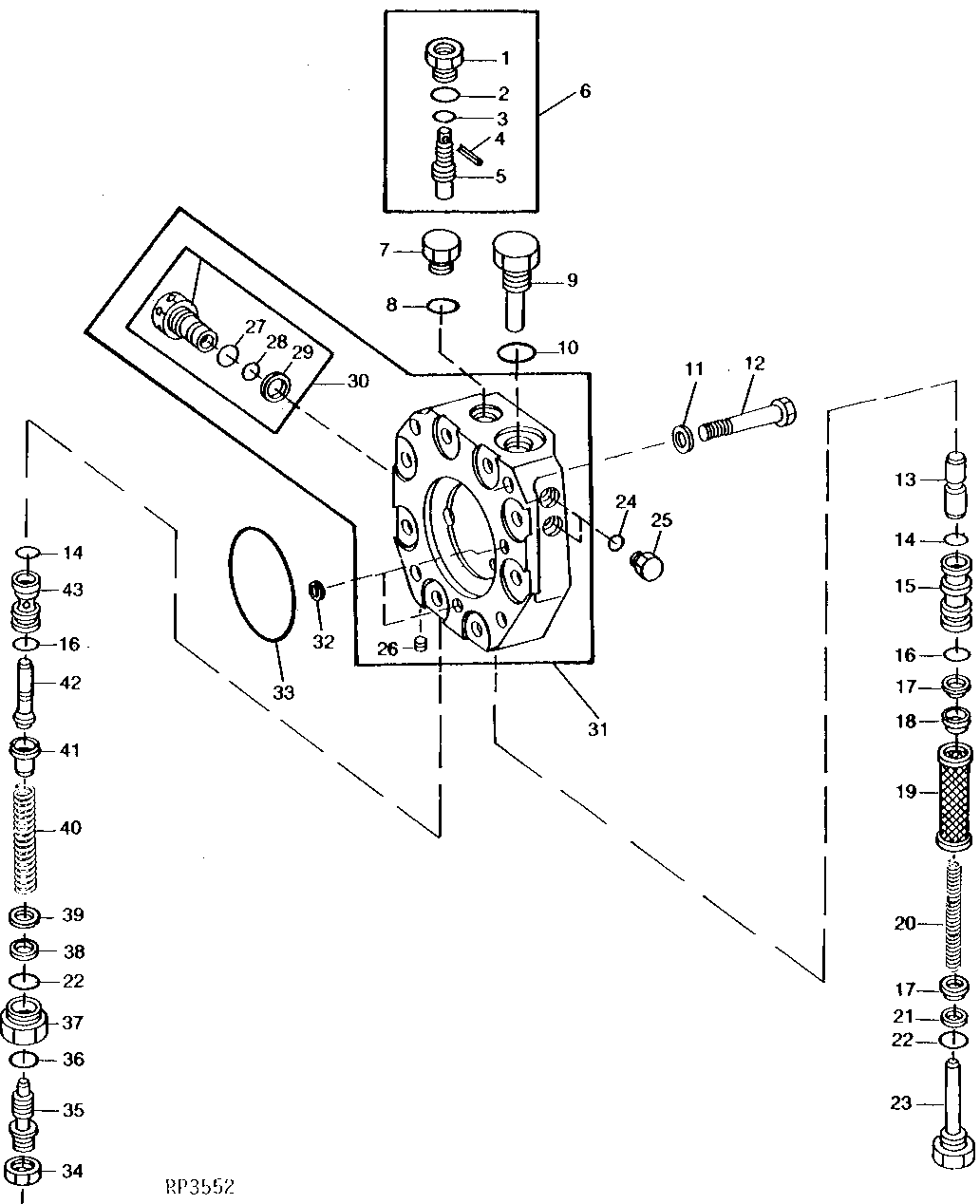

HYDRAULIC PUMP STROKE CONTROL VALVE 98 CM3 (6 IN.3) (PUMP LESS SERIAL PLATE) [02H10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27475	1	FITTING	-
2	R26448	1	O-Ring	-
3	A4365R	1	O-Ring	-
4	34H254	1	Spring Pin	1/8" X 1-1/2"
5	R27171	1	SCREW	-
6	AR33249	1	SCREW	(MANUAL DESTROKE)
7	R27218	1	Fitting Plug	(LESS MANUAL DESTROKE)
8	R26448	1	O-Ring	(LESS MANUAL DESTROKE)
9	AR51745	1	DRAIN PLUG	-
10	R26906	1	O-Ring	-
11	T20168	4	Washer	-
12	R68621	4	CAP SCREW	(SUB FOR R51953) (ALSO ORDER T20168)
13	R27172	1	VALVE	-
14	R27564	2	O-Ring	-
15	R70351	1	SLEEVE	(SUB FOR R27476)
16	R27166	2	O-Ring	-
17	R27174	2	PACKING	-
18	R27167	1	GUIDE	-
19	R27173	1	FILTER ELEMENT	-
20	R27159	1	SPRING	-
21	R27170	1	SHIM	0.010"
21	24H1298	1	Washer	3/8" X 5/8" X 0.032"
22	U12547	2	O-Ring	(SUB FOR (2) F3171R)
23	AR26646	1	DRAIN PLUG	-
24	R26287	2	O-Ring	-
25	R27216	2	DRAIN PLUG	-
26	15H560	1	Pipe Plug	1/16", (USE WITH R51913)
27	R26375	1	O-Ring	(USE WITH R51913)
28	T40308	1	O-Ring	(USE WITH R51913)
29	T57374	1	Back-Up Ring	(USE WITH R51913)
30	AR90378	1	PLUG	(USE WITH R51913)
31	RE13612	1	HOUSING	(MARKED R51913 OR R54194)
32	R56755	2	WASHER	-
33	R56759	1	O-RING	-
34	14H1021	1	NUT	7/16"
35	AR52254	1	SET SCREW	-
36	R28782	1	O-Ring	-
37	R55907	1	FITTING	-
38	R42260	1	WASHER	(NO LONGER REQUIRED)
39	R48808	1	Washer	-
40	R55908	1	SPRING	-
41	R71563	1	GUIDE	(SUB FOR R55909)
42	R70559	1	CONTROL VALVE	(SUB RE10712, R41057 AND R27166)
43	R69262	1	SLEEVE	(SUB RE10712, R41057 AND R27166)

HYDRAULIC PUMP STROKE CONTROL VALVE 98 CM3 (6 IN.3) (PUMP LESS SERIAL PLATE) [02H10]
