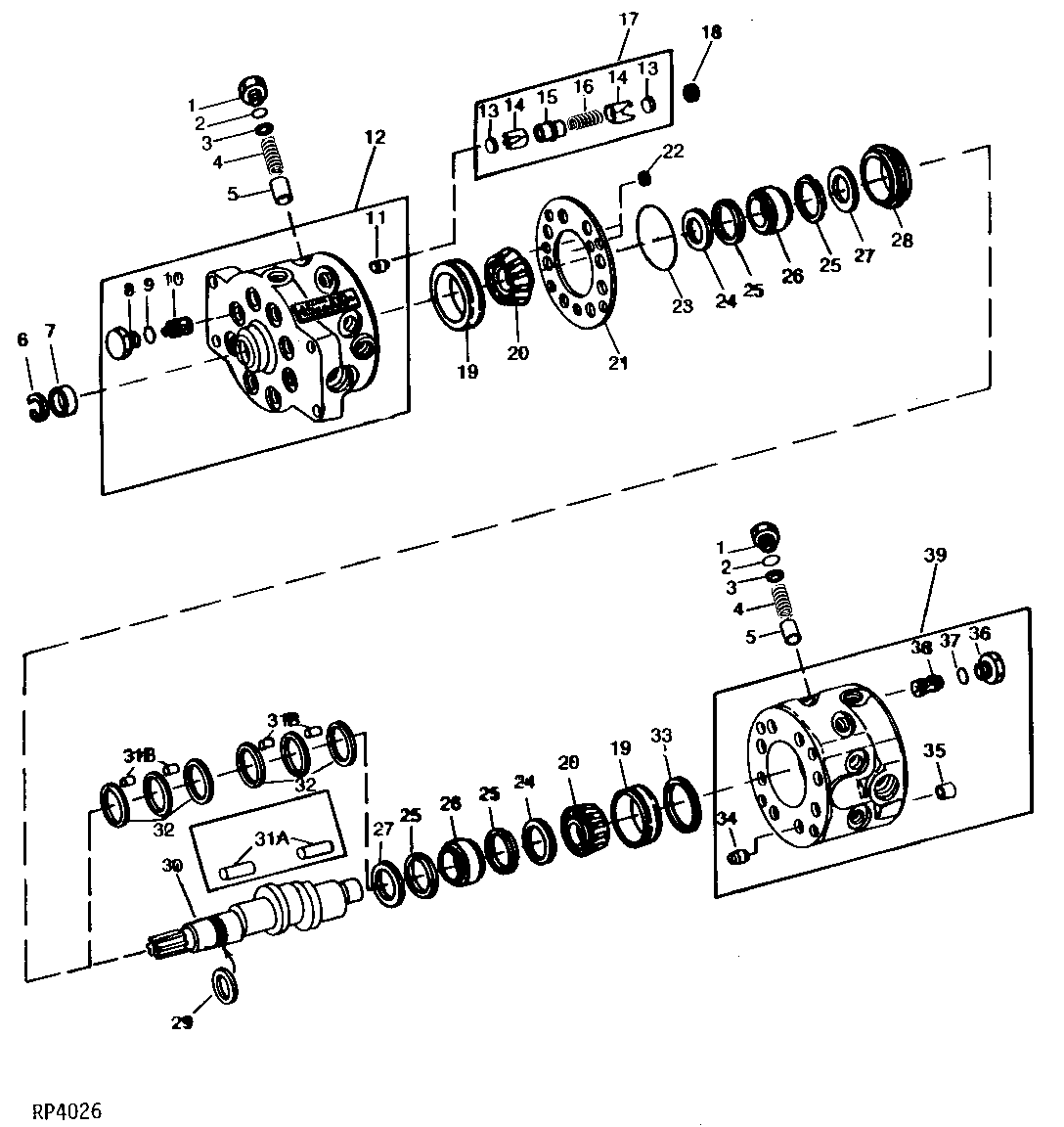

HYDRAULIC PUMP - MODEL LC1 100 CM3 (6 IN.3) (REPLACEMENT PUMP WITH SERIAL PLATE) [02H14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45438	16	Fitting	-
2	R56463	16	O-Ring	-
3	AR101236	2	SHIELD	(SET OF 8)
4	AR76762	2	SPRING	(SET OF 8)
5	R27150	16	PISTON	-
6	R26137	1	Snap Ring	-
7	RE28790	1	SEAL	(SUB FOR AR52224)
8	R78293	8	FITTING	-
9	R27149	8	O-Ring	-
10	AR53301	8	VALVE	(INLET)
11	R105583	8	Valve Seat Insert	-
12	RE11807	1	HOUSING	PRIMARY (MODEL PE1) (MARKED R71661)
13	R49297	16	DISK	-
14	R48738	16	GUIDE	-
15	R72887	8	STOP	-
16	R39208	8	Spring	-
17	AR96614	8	VALVE	(OUTLET)
18	R107239	8	Packing	(SUB FOR (8) R69279)
19	JD8223	2	Bearing Cup	-
20	JD8192	2	BEARING CONE	-
21	R70686	1	PLATE	-
22	R56755	2	WASHER	-
23	R56757	1	O-Ring	-
24	R77903	2	WASHER	(SUB FOR R45425)
25	R72507	4	Thrust Washer	-
26	R80558	2	Bearing Race	(SUB FOR R72506)
27	R77905	2	THRUST WASHER	(SUB FOR R72138)
28	R70726	1	SLEEVE	-
29	R77611	1	SEALING WASHER	(SEALING) (SUB FOR R68252 OR RE11777)
30	R71597	1	SHAFT	-
32	R85557	6	WASHER	-
33	R27478	1	SHIM	0.15MM (.006")
33	R27479	1	SHIM	0.25MM (.010")
34	R105583	8	Valve Seat Insert	-
35	R36728	1	BUSHING	-
36	R51912	8	FITTING	-
37	R27149	8	O-Ring	-
38	AR53301	8	VALVE	(INLET)
39	RE13614	1	HOUSING	SECONDARY, (MARKED R71662) (SUB RE15815) (ALSO ORDER RE15821)
39	RE15815	1	HOUSING	SECONDARY, (MARKED R79732) (SUB FOR AR94288, RE13614 OR RE15822)
..	AR102245	1	HYDRAULIC PUMP	(SUB FOR AR67383 OR AR89461)
31A	R116712	50	Needle Roller	(SUB FOR R45422)
31B	R116713	100	Needle Roller	(SUB FOR R85558)

HYDRAULIC PUMP - MODEL LC1 100 CM3 (6 IN.3) (REPLACEMENT PUMP WITH SERIAL PLATE) [02H14]
