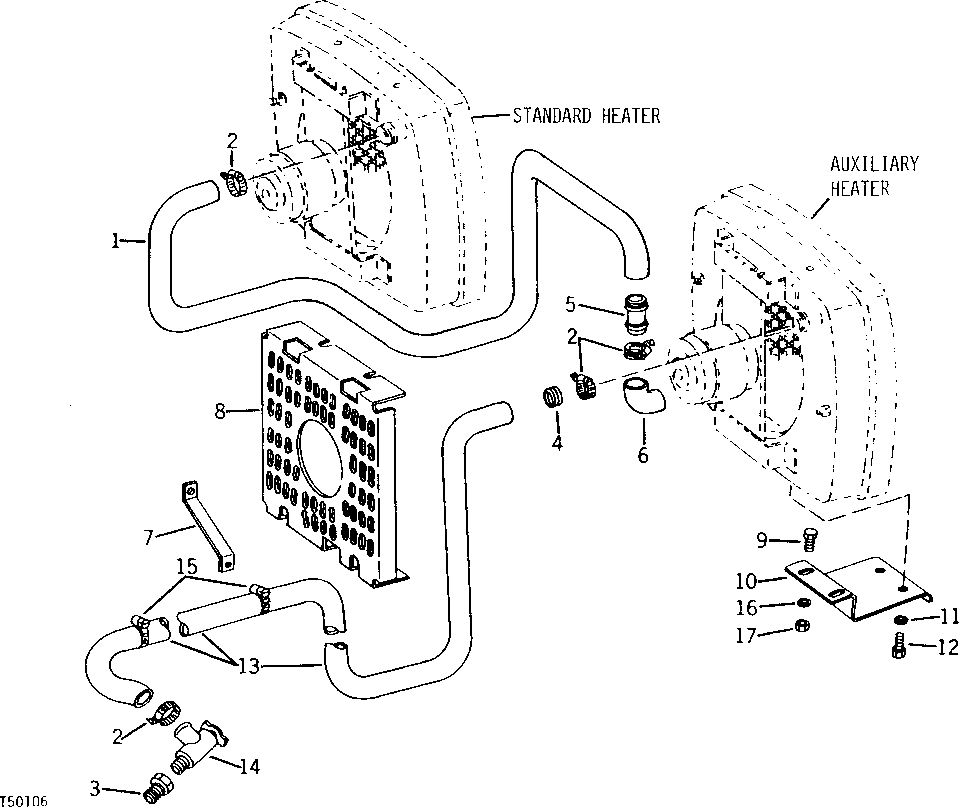

HEATER HOSES AND FAN GUARD AUXILIARY HEATER [02F21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(A) (SUB FOR T29382) (MAKE FROM T60811 BULK MATERIAL CUT TO LENGTH) (1 118MM(44" LONG)
2	RE65978	4	Clamp	(A) (SUB FOR AT18904 OR RE62322)
3	15H586	1	Adapter Fitting	1/2" X 3/8"
4	U16949	1	Grommet	-
5	T76200	1	Tube	(A) (SUB FOR T46733)
6	T22942	1	HOSE	(A)
7	T43082	1	BRACKET	(A) HEATER
8	T54089	1	GUARD	(A) FAN
9	19H1648	2	Cap Screw	(A) 3/8" X 3/4"
10	T43078	1	SUPPORT	(A) HEATER
11	12H302	3	Lock Washer	(A) 1/4"
12	19H1227	3	Cap Screw	(A) 1/4" X 1/2"
13	T27076	1	HOSE	(SUB FOR T43083)
14	AT169553	2	DRAIN VALVE	SHUT-OFF, (SUB FOR AT169553, THIS APPLICATION)
15	H77698	6	Tie Band	(SUB FOR AT30417 AND T44946)
16	24M7096	2	Washer	(A) 0.413" X 0.709" X 0.063"
17	14H812	2	NUT	(A) 3/8"
..	-	1	Part 18	( AT57854 NO LONGER AVAILABLE)

HEATER HOSES AND FAN GUARD AUXILIARY HEATER [02F21]

Нет текстового описания
